Genuine Jeep Engine Mount
Engine Motor Mount- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
350 Engine Mounts found
Product Specifications- Other Name: ISOLATOR Engine Mount; Front Mount, Isolator, Mount, Side Mount
- Replaced by: 68252518AB
Product Specifications- Other Name: ISOLATOR Engine Mount; Front Mount, Isolator, Mount
- Replaced by: 68252522AB
Product Specifications- Other Name: Bracket, Rear Mount
- Replaces: 68323788AA, 68246475AA, 68254476AA
Product Specifications- Other Name: ISOLATOR Engine Mount
- Replaced by: 68252518AB
Product Specifications- Other Name: Mount Bracket, Transmission Mount Bracket
- Replaces: 68493526AA, 68246579AA
Product Specifications- Other Name: Bracket Engine Mount; Mount Bracket
- Position: Driver Side
- Replaces: 52124989AC, 52124989AD, 52124989AB
Product Specifications- Other Name: Bracket Engine Mount; Side Mount Bracket
- Position: Passenger Side

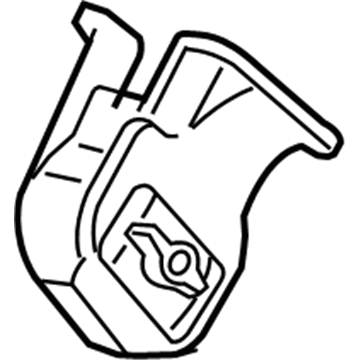

Product Specifications- Other Name: Bracket And INSULATOR Engine Mounting; Mount, Mount Bracket
- Position: Passenger Side
- Replaces: 52090304AF, 52090304AE, 52090304AD
Product Specifications- Other Name: Support Engine
- Replaced by: 68363996AA
Product Specifications- Other Name: Bracket Engine Mount
- Replaced by: 68275987AA
Product Specifications- Other Name: DAMPER Engine Mount
- Position: Driver Side
- Replaces: 68323785AA, 68321982AA, 68330091AA, 68277109AA, 68254672AA, 68297795AA, 68246578AA

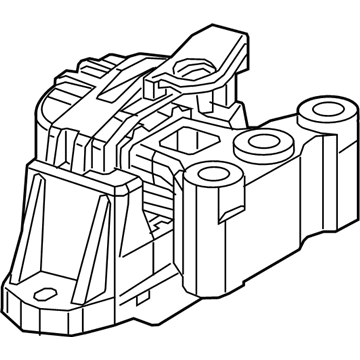

Product Specifications- Other Name: INSULATOR-Engine Mount; Isolator, Side Mount
- Position: Passenger Side
- Replaces: 68328737AA
Product Specifications- Other Name: Isolator, Side Mount
- Position: Passenger Side
- Replaces: 68192832AE, 68192832AC, 68192832AB, 68192832AF, 68192832AD
Product Specifications- Other Name: Isolator
- Position: Passenger Side
- Replaces: 68192831AF, 68192831AE, 68192831AD, 68192831AB, 68192831AC
Product Specifications- Other Name: DAMPER Engine Mount; Isolator, Side Mount
- Position: Passenger Side
- Replaces: 68273250AA, 68273248AA, 68246572AA, 68278029AC, 68323781AA, 68278029AB, 68247564AA, 68278029AA, 68323461AA
Product Specifications- Other Name: Engine Mount Rear; Support
Product Specifications- Other Name: Engine Mount Rear; Rear Mount
- Replaces: 68256971AA
Product Specifications- Other Name: Bracket Engine Mount
- Replaced by: 68275987AA
Product Specifications- Other Name: Overhaul Gasket Set, Valve Grind Gasket Kit
- Replaces: 68417512AA, 68196239AA, 68196239AC, 68046260AA, 68196239AB
Product Specifications- Other Name: Insulator Engine Mount; Front Mount, Insulator
- Position: Passenger Side
| Page 1 of 18 |Next >
1-20 of 350 Results
Jeep Engine Mount
Welcome to your ultimate destination for affordable OEM Jeep Engine Mounts. Here at our website, we not only provide genuine Jeep Engine Mounts at unbeatable prices, but also guarantee their quality with the manufacturer's warranty. Coupled with our dedicated customer service and swift delivery, we're confident you won't find a better deal anywhere else.
Jeep Engine Mount Parts Questions & Experts Answers
- Q: How to Check and Replace Engine Mounts in 3.7L V6 and 4.7L V8 Engines on Jeep Grand Cherokee?A:There are three powertrain mounts on the vehicles, includes left and right engine mounts connected to the engine block and frame, rear mount connected to the transmission and frame. He mentioned that if it is broken or worn out, the rear transmission mount demands attention because it can lead to damage of the other components of the driveline. To do check the mounts, lift the engine somewhat off the mounts, adding weight to take off, always use jack with wood block to the oil pan. Look for signs of slewing between inner and outer mount sections and examine rubber for signs of cracking, separations; treat with rubber preservative to forestall deterioration. For replacement, remove the negative battery cable, and then the engine cooling fan and shroud, lift the engine using a hoist; do not support it by connecting a strap to the intake manifold. For the 2WD models, the engine mount to frame support bracket through bolt and mount to engine block bolts have to be removed and the new mounts and heat shield inserted. On 4WD models, raise the front axle, then take off the engine skid plate and front crossmember and disconnect the engine mount from the front axle before fitting the new mount. After installation, lower the engine as you adjust th in the mount hole in the frame support bracket, then tighten the through-bolt nut and reverse the removal steps and finally lower the vehicle.
- Q: How should engine mounts be checked and replaced to prevent damage to drive line components in 2.5L four cylinder engine on Jeep Wrangler?A:Engine mounts generally do not need service, but if they are cracked or worn they should be replaced before the mount, and therefore the drive line parts, wear or become damaged. To check the mounts, place the engine to a slightly raised position to off load the mounts or apply pressure. First of all, lift the vehicle and support it on jack stands; then, place a jack under the engine oil pan, while putting a large block of wood between the jack head and the oil pan; in this manner carefully lift the engine to take the weight off the mounts. Look for any cracks, hardening of the rubber material and those that have worn off their metal plates, only to find that there is an ability in the rubber material to split down the middle. Using a large screwdriver pry on any of the mount plates and the engine or frame; if there is some amount of movement between the two, lower the engine further and reinforce the mount fasteners. In order to prevent further deterioration you have to use rubber preservative to the mounts. Remove the negative battery terminal, then, if it has not already been done, safely lift the vehicle up and place jack stands under it. Lose the through bolt nut and remove the bolt and nut that hold the mount to the frame bracket, lift the engine a little with a jack or a hoist to make sure there is no contact between the fan and the radiator or the shroud and remove the mount. Installation is the process of doing the reverse of the removal process, applying thread locking compound on the mount bolt and make sure that it is tighten properly.
