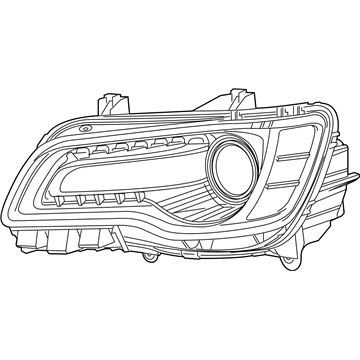

Genuine Chrysler 300 Headlight

Chrysler 300 Headlight Parts Questions & Answers

• Headlamp
  4805761AD
  Q: How to adjust the headlights and fog lights on a Chrysler 300?

  A: Find the headlight vertical adjustment screw in the upper radiator crossmember under the hood. Use masking tape on a wall to mark the vehicle and headlight centerlines. Adjust with the vehicle 25 feet from the wall, level, with a full gas tank and no heavy load. The high intensity zone should be centered three inches below the horizontal line. Get a technician to adjust the headlights as soon as possible. For vehicles with fog lights, park 25 feet from the wall. Mark the height of the fog lights and a line four inches below. Adjust each fog light so the beam meets the lower line. Repeat for the other fog light.
• Passengers Halogen Headlight Lens Replacement
  4805756AI
  Q: How to remove and install the headlight housing on Chrysler 300?

  A: On Charger models, remove the bumper cover. Remove the two upper and two lower headlight mounting bolts. To detach the headlight housing, remove these three mounting bolts (the lower bolt is not visible). Pull out the headlight housing far enough to disconnect the electrical connectors. Installation is the reverse of removal.
