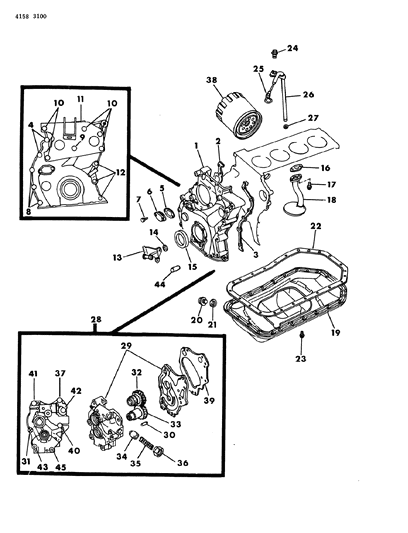

Diagram (1 of 1): ENGINE, 4 CYLINDER OIL PUMP, OIL PAN, OIL LEVEL INDICATOR, TIMING COVER 4 CYLINDER 2.6 L ENG., P,D,C,V,E,T,H,K
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
1
MD024770
CASE, Timing Chain
2
MD020324
GASKET, Chain Case, Rt.
3
MD020325
GASKET, Chain Case, Lt.
4
MS101243BOLT, Flange (8x58)
7
8
MS101245BOLT, Flange (8x68)
9
MF241269BOLT, w/Washer (8x80)
11
MD071550
BRACKET, Engine Support, Right
MF241269BOLT, w/Washer (8x75)
13
MD074097
BRACKET, Timing Indicator
16
MD021577
GASKET, Oil Screen
17
18
MD025223
SCREEN Assy., Oil
25
MD026762
ROD Assy., Oil Level Gauge
26
MD024928
GUIDE, Oil Level Gauge
29
MD060518
BODY w/Cover Assy.,Oil Pump
31
MF350083
SCREW, w/Washer (6x40)
32
MD061314
GEAR, Oil Pump Driven
33
MD061313
GEAR, Oil Pump Drive
34
37
MS101315
BOLT, Flange (6x16)
38
MD031805
FILTER Assy., Oil
41
MS101322
BOLT, Flange (6x45)
42
MS101316
BOLT, Flange (6x22)
43
MD027152
BOLT w/Washer (8x14)
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984
Dodge 600 Sedan parts. Parts like Oil Pump, Oil Pan, Oil Level Indicator, Timing Cover are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
