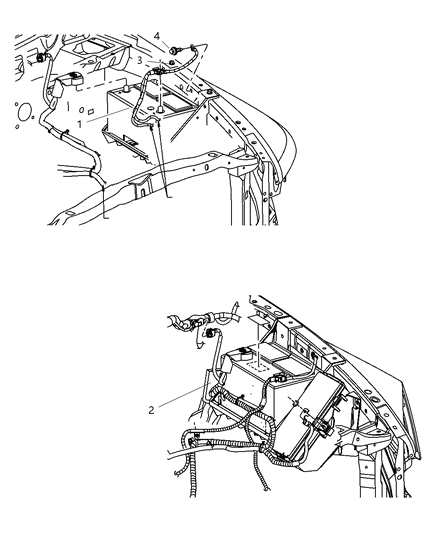

Diagram (1 of 1): Electrical Battery Wiring
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
4801341ADWIRING Battery Negative- Fitting Vehicle Options:
1 - Lt. Duty DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 6 - Lt. Duty DODGE 4WD, 61 - REG CAB 6.5 FT BOX, 62 - REG CAB 8 FT BOX, EK0
4801640AAWIRING Battery Negative- Fitting Vehicle Options:
1 - Lt. Duty DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 6 - Lt. Duty DODGE 4WD, 61 - REG CAB 6.5 FT BOX, 62 - REG CAB 8 FT BOX, EZ0
1 56051878ACWIRING Battery Negative- Fitting Vehicle Options:
1 - Lt. Duty DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 6 - Lt. Duty DODGE 4WD, 61 - REG CAB 6.5 FT BOX, 62 - REG CAB 8 FT BOX, EV0
- Replaced By:
56051878AD

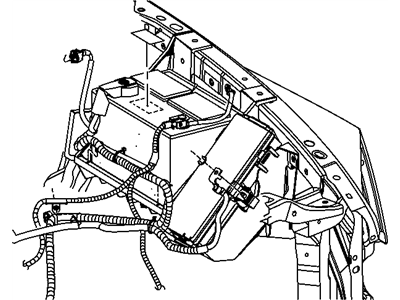

2 4801488AEWIRING Battery Positive- Fitting Vehicle Options:
1 - Lt. Duty DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 61 - REG CAB 6.5 FT BOX, 62 - REG CAB 8 FT BOX, DBB, EV0
- Replaced By:
4801488AF
2 4801489AEWIRING Battery Positive- Fitting Vehicle Options:
41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 6 - Lt. Duty DODGE 4WD, 61 - REG CAB 6.5 FT BOX, 62 - REG CAB 8 FT BOX, DBB, EV0
- Replaced By:
4801489AF
2 4801534ACWIRING Battery Positive- Fitting Vehicle Options:
1 - Lt. Duty DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 61 - REG CAB 6.5 FT BOX, 62 - REG CAB 8 FT BOX, DG0, EV0
- Replaced By:
4801534AD
2 4801541ACWIRING Battery Positive- Fitting Vehicle Options:
41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 6 - Lt. Duty DODGE 4WD, 61 - REG CAB 6.5 FT BOX, 62 - REG CAB 8 FT BOX, DG0, EV0
- Replaced By:
4801541AD
4801819ABWIRING Battery Positive- Fitting Vehicle Options:
1 - Lt. Duty DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 61 - REG CAB 6.5 FT BOX, 62 - REG CAB 8 FT BOX, DBB, EK0
2 4801820ABWIRING Battery Positive- Fitting Vehicle Options:
1 - Lt. Duty DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 61 - REG CAB 6.5 FT BOX, 62 - REG CAB 8 FT BOX, DG0, EK0
- Replaced By:
4801820AC
2 56051714AEWIRING Battery Positive- Fitting Vehicle Options:
41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 6 - Lt. Duty DODGE 4WD, 61 - REG CAB 6.5 FT BOX, 62 - REG CAB 8 FT BOX, EZ0
56051996AEWIRING Battery Positive- Fitting Vehicle Options:
1 - Lt. Duty DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 61 - REG CAB 6.5 FT BOX, 62 - REG CAB 8 FT BOX, EZ0
4
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 2008
Dodge Ram 1500 parts. Parts like Battery Wiring are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.7L, 8 Cyl 4.7L, 8 Cyl 5.7L. Transmission: 4-Speed Automatic Transmission, 5-Speed Automatic Transmission, 6-Speed Manual Transmission.
