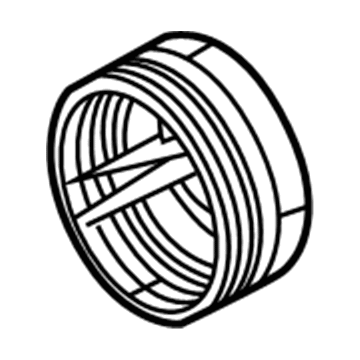

Dodge Dakota Harmonic Balancer
In the Dodge Dakota, the Harmonic Balancer plays the role of balancing the engine as well as absorbing vibrations that may be caused by the combustion process. In this component there is a metal hub which is connected to crank shafta: a thick metal inertia ring, flex mounted on a rubber ring which tends to oppose to the twisting movement of the crank shaft. While time passes, heat and roads will affect the rubber resulting in possible crankshaft damage in the event that the balance fails. Some of the Dodge Dakota car models can employ the Normal or original Harmonic Balancers or even the High-Performance Balancers. While typical balancers are made to meet factory engine requirements, performance harmonic balancers are built to meet greater levels of oscillation coming from tuned engines and provide a safeguard at all engine speeds. Some of the performance options include the traditional, high viscous fluid, and the multi piece design, which has all undergone tests in dangerous staking and racing environments.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Dodge Dakota Harmonic Balancer at great affordable prices. Moreover, all genuine Dodge Dakota Harmonic Balancer come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Dodge Dakota Harmonic Balancer Parts Questions & Experts Answers
- Q: How to remove and install Crankshaft Seal and Harmonic Balancer in 5.7L V8 engine on Dodge Dakota?A:But before doing so, I disconnected the cable from the negative terminal of the battery. Remove the engine drivebelt. The coolant should be drained and the upper radiator hose together with the engine cooling fan should be removed. Loosen and then completely remove the massive bolt that connects the large vibration damper to the crankshaft using a chain wrench in such way that the crankshaft does not turn The chain wrench should enclose the outer circumference of the pulley and to avoid damaging the vibration damper, an interposition of a piece of rubber over the chain wrench must be made. A punctual puller must be used to remove the vibration damper with the muscles of the puller encircling the hub only and not the threads in the crankshaft face. If the seal is to be removed with the cover still in the engine block, gently extract it using the seal removing tool or an equally big screw driver without damaging the region where the seal was fitted. Remove the old sealant and corrosive deposits from the bore and place the new one with the sealing edge towards the bore, a drop of oil should be applied to the outer circle of the sealant in order to facilitate the insertion. Insert the seal into the bore with the help of a seal driver or a large socket and a hammer until this seal is flush with the cover flange. Inspect the lever of the damper for grooves, if any then get a new vibration damper. Apply a layer of engine oil on the seal lips and then fit back the vibration damper ensuring the Woodruff key seats properly in the key way of the damper hub then insert the unit to the crankshaft by pressing it with the help of the particular installation tool. Next insert the vibration damper bolt and finally tighten to the required tightness. The rest of an installation is in the reverse order of the removal and last of all, adding water in the cooling system.
