How to perform an operating check on the brake booster on Jeep Liberty?

To check the brake booster, start the engine, depress the pedal, and ensure the pedal reserve distance doesn't change. For air tightness, start and stop the engine, depress the pedal several times, and observe if the pedal rises after the second or third depression. If there's no change in pedal reserve travel after 30 seconds, the booster is airtight. To remove the brake booster, remove the master cylinder, disconnect the vacuum hose, move any steel brake lines and the ABS hydraulic control unit, and remove the steering column lower cover, brake push rod clip, and brake light switch. Remove the four nuts holding the booster and slide it out. Installation is the reverse of removal.

Genuine Jeep Liberty Brake Booster

Brake Power Booster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Brake Boosters found

View related parts

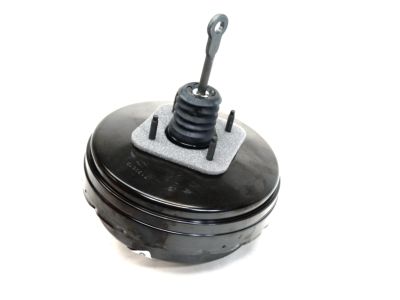

Jeep Liberty Power Brake Booster
Part Number: 68039279AA
$221.71 MSRP: $501.00
You Save: $279.29 (56%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68039279AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2011 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Renegade 4WD, Sport 2WD, Sport 4WD | 6 Cyl 3.7L
View related parts
Jeep Liberty Power Brake Booster
Part Number: 68039279AC
$325.92 MSRP: $501.00
You Save: $175.08 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake; Brake Booster, Power Booster
- Replaces: 68039279AB, 68039279AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2012 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Limited JET Edition 2WD, Limited JET Edition 4WD, Renegade 4WD, Sport 2WD, Sport 4WD | 6 Cyl 3.7L
View related parts
Jeep Liberty Power Brake Booster
Part Number: 5134120AA
Product Specifications
- Other Name: Booster Power Brake; Brake Booster, Power Booster
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2007 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Renegade 2WD, Renegade 4WD, Sport 2WD, Sport 4WD | 4 Cyl 2.4L, 4 Cyl 2.8L Diesel, 6 Cyl 3.7L
View related parts
Jeep Liberty Power Brake Booster
Part Number: 5072521AA
Product Specifications
- Other Name: Booster Power Brake; Brake Booster, Power Booster
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2002-2003 Jeep Liberty | Limited Edition 2WD, Limited Edition 4WD, Renegade 2WD, Renegade 4WD, Sport 2WD, Sport 4WD | 4 Cyl 2.4L, 6 Cyl 3.7L

Jeep Liberty Brake Booster

Jeep Liberty cars equip the Brake Booster, which is useful in providing better braking force while at the same time the driver does not apply much pressure. It largely employs vacuum action where by it uses variation between the vacuum created by the engine and the normal atmosphere pressure to enhance the force that is applied on the brake pedal. Such a system makes it easier and efficient to apply force for instance it was easier and efficient to apply force during braking. Some of the Brake Boosters used in Jeep Liberty models may include Vacuum operated Brake Booster and hydraulic Brake Booster. The vacuum boosters are usually dependable nevertheless can fail at times, the hydraulic boosters employ the fluid pressure of the power steering pump or an electric assembly. Single and dual diaphragm boosters are some of the options that are available and depending on the size of the booster, the diameter size, there is usually a boost in assist and depending on the size of the booster, larger diameters are more powerful provide more power assist, but if the space is limited, then dual diaphragm boosters are more favorable. In general, the Brake Booster is one of the vital components in the Jeep Liberty's braking system, making the vehicle safer and easier to handle.

Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Jeep Liberty Brake Booster at great affordable prices. Moreover, all genuine Jeep Liberty Brake Booster come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.

Jeep Liberty Brake Booster Parts Questions & Experts Answers

Power Brake Booster
68039279AA
Q: How to perform an operating check on the brake booster on Jeep Liberty?
A:
To check the brake booster, start the engine, depress the pedal, and ensure the pedal reserve distance doesn't change. For air tightness, start and stop the engine, depress the pedal several times, and observe if the pedal rises after the second or third depression. If there's no change in pedal reserve travel after 30 seconds, the booster is airtight. To remove the brake booster, remove the master cylinder, disconnect the vacuum hose, move any steel Brake Lines and the ABS hydraulic control unit, and remove the steering column lower cover, brake push rod clip, and Brake Light Switch. Remove the four nuts holding the booster and slide it out. Installation is the reverse of removal.
