Genuine Jeep Liberty Intake Manifold
Engine Intake Manifold- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
10 Intake Manifolds found

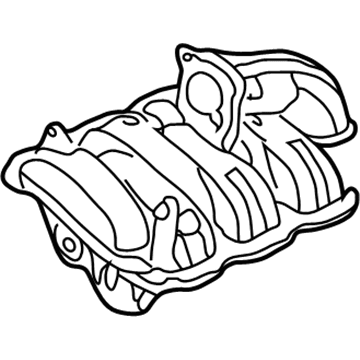

Jeep Liberty Engine Intake Manifold
Part Number: 53034181AD$269.83 MSRP: $404.00You Save: $134.17 (34%)
Jeep Liberty Engine Intake Manifold
Part Number: 53034181AB$269.83 MSRP: $404.00You Save: $134.17 (34%)
Jeep Liberty Intake Manifold
Jeep Liberty cars' Intake Manifold is one of the vital engines' components since It has the responsibility of delivering air or air/fuel mixture to the several cylinders influencing the power and performance of the engine. It works by drawing air from the throttle body, and the designs differs according to the types of engines they are, carbureted, throttle body injected, or multiport fuel injected. Current Jeep Liberty models use plastic composite material for their intake manifolds, they are lighter and more efficient heat sink than cast iron or aluminum. Some varieties of Intake Manifold for example variable-length intake manifolds (VLIM), work by altering the length of the intake tract to allow the optimal flow and pressure in relation to the load on the engine. This involves enhanced ability in producing power outputs within the jeep liberty as well as efficiency owning to improvements in materials technology.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Jeep Liberty Intake Manifold at great affordable prices. Moreover, all genuine Jeep Liberty Intake Manifold come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Jeep Liberty Intake Manifold Parts Questions & Experts Answers
- Q: How to remove and reinstall the intake manifold in four cylinder engine on Jeep Liberty?A:The intake manifold is made from aluminum and is in two parts; the upper section only needs to be detached if the spark plugs or valve cover have to be accessed and not the whole intake manifold. Among things one needs to do when the complete intake manifold is pulled off is to depressurize the fuel system, though the upper manifold removal let's you skip the process. The first step is to remove the negative battery terminal cable, after that the Electrical Connector of Intake Air Temperature Sensor, thereafter the Air Intake Tube and Air Filter Upper Housing is to be removed. Subsequently, remove the electrical connectors at the Idle Air Control motor, Throttle Position Signal output unit, and Manifold Absolute Pressure sensing point; as well as the vacuum lines from numerous parts. Accelerator cable as well as, if the car has one, the cruise control and transmission control cables must be disconnected. Bolts on the EGR pipe on the EGR valve and intake manifold must be taken out together with the oil dipstick. If only upper intake manifold is being removed it is required to undo manifold support bracket bolt, uncouple the upper intake manifold attaching bolt, and lift the manifold off. Another manifold gasket is to be applied when refitting, before tightening the bolts, the central ones first, apply uniform and progressive force. More specifically, for full intake manifold removal, the Coolant Temperature Sensor electrical connector has to be disconnected, as well as the fuel injector harness connectors, fuel rail, fuel pressure regulator and, finally, the fuel injectors which have to be removed as a single piece. If changing or reading the intake manifold plenum, the throttle body should be taken off; but if only changing the cylinder head it can stay there. It is recommended that the intake manifold support bracket bolts and the intake manifold bolts and washers be removed and this would enable the intake manifold and gasket to be replaced. For inspection, straightedge and feeler gauge ought to be used on the mating surfaces in order to identify warpage and where warpage embraces limits, resurfacing or replacement is required. When bolting the manifold back, the intake manifold gasket should be new and the bolts tightened evenly starting with the inner ones to avoid warping of the manifold then the rest of it is the reverse of the process of removing the manifold.
