8 Fuses found

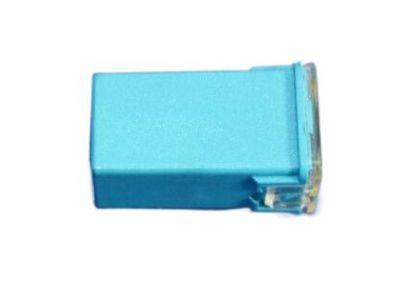

Jeep Patriot Fuse
The Jeep Patriot Fuse is a protective device that cuts off power when excess current threatens radios, lights, GPS units, and more. It is placed inside a plastic housing near one corner of the engine bay. It works along with a set of relays to maintain electrical supply at safe levels. At the same time, it can protect against heat, vibration, and moisture. A small metal strip inside each Fuse melts and directly opens the circuit when the amperage spikes. The Patriot vehicle was manufactured using the color-coded blade Fuse units in low-profile mini, regular, and maxi sizes through many model years. This enables vehicle owners to quickly match the ratings. North American builds from earlier years sometimes employed glass-tube Fuse pieces, all equal in diameter but differing in amperage and bulkier than blade style. The vehicle relies on this safeguard, similar to Jeep electronics. A blown Fuse is confirmed when both ends are tested for power, which is then replaced with one of the identical rating using the clip tool in the box. This is an easy task that makes sure the Jeep Patriot is ready for every trip and allows Jeep drivers to ensure their Patriot stays powered up.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Jeep Patriot Fuse at great affordable prices. Moreover, all genuine Jeep Patriot Fuse come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Jeep Patriot Fuse Parts Questions & Experts Answers
- Q: What are the functions and maintenance steps for the electrical fuses, circuit breakers, and fusible links on Jeep Patriot?A:The electrical circuits of the vehicle are protected by fuses, circuit breakers and fusible links The main fuse/relay panel is located in the engine compartment and the secondary relay panel is located in the left-front side of the car ahead of the horn. The fuse/relay box is called the Totally Integrated Power Module (TIPM) and each of the fuses shown in the fuse panel corresponds to a particular circuit. Small, medium and large fuses are employed in the fuse blocks and all are equipped with the same blade terminal; the medium and large fuses can be pulled out by hand while the small ones need pliers or a plastic fuse-puller tool. If there is an open circuit, or an electrical component fails, one should always check the fuse first and it is recommended that one should use a testlight to test the exposed terminal tips on the fuse; if the light comes on at one end and not the other then the fuse is blown; the fuse can also be inspected visually. Some of the fuses are not energized with the key in the Off position and thus the key should be placed in the On position before voltage can be checked. Blown fuses have to be replaced with similar fuses because while physically, the fuses may be interchangeable they should be of the right rating as they are meant to protect circuits of specific ratings. If for some reason a new fuse blows out as soon as it is installed, or is switched with a higher amp fuse, it will continue to blow every time until the true problem, almost always a short circuit or a faulty internal component, is dealt with. Some of the most frequent causes of electrical failures include rubbing on wires harness with metal part or with hot exhaust. In these models, the fuses of high current and high amperages are used and these fuses are situated in the underhood fuse/relay box.
