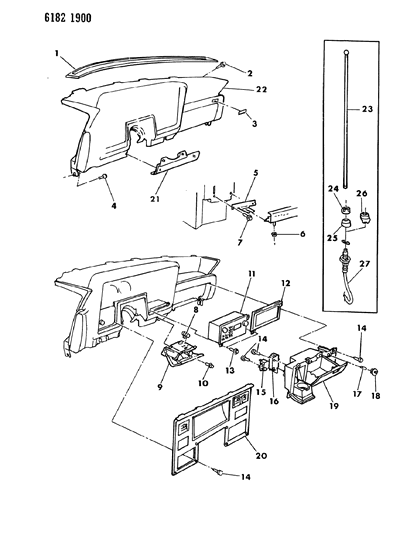

Diagram (1 of 1): ELECTRICAL - INSTRUMENT PANEL AND CONSOLES INSTRUMENT PANEL BEZELS, GLOVEBOX AND RADIO H BODY

1986 Chrysler LeBaron GTS Instrument Panel Bezels, Glovebox And Radio Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
6500926
COVER, Top
CLIP, Top Cover
1
P378EK1
COVER, Top
- After 10-7-85
1
P383EK1
COVER, Top
- Up to 10-7-85

3
4311504
NAME PLATE, Instrument Panel
"Lancer"
3
4311965
NAME PLATE, Instrument Panel
- "Le Baron"

5
4311205
BRACKET, Instrument Panel Lower Right
REINFORCEMENT, Instrument Panel Left
5
4311206
BRACKET, Instrument Panel Lower Right
- SUPPORT, Instrument Panel End Right
5
4311226
BRACKET, Instrument Panel Lower Right
- REINFORCEMENT, Instrument Panel Lower Right
5
4311308
BRACKET, Instrument Panel Lower Right
- BRACKET, Instrument Panel Lower Right
5
4331313
BRACKET, Instrument Panel Lower Right
- BRACKET, Steering Column Twenty Five Way Mtg.
5
4331570
BRACKET, Instrument Panel Lower Right
- BRACKET, Instrument Panel Twenty Five Way Mtg.

8
4312672
HOUSING, Courtesy Lamp

9
2808912
RECEIVER, Ash
SHELL and CLAMP, C/Lighter
9
3004190
RECEIVER, Ash
- ELEMENT, C/Lighter
9
3746629
RECEIVER, Ash
- BEZEL, C/Lighter
9
4221761
RECEIVER, Ash
- KNOB, C/Lighter
9
4311462
RECEIVER, Ash
- RECEPTACLE, Ash Rec.
9
P388EK1
RECEIVER, Ash
- RECEIVER, Ash

11
4311103
RADIO, E.T.R w/CLOCK
Ultimate Sound
11
4311334
RADIO, E.T.R w/CLOCK
- w/4311687,4311956 Radios (Primary)
11
4311337
RADIO, E.T.R w/CLOCK
- w/4311687,4311956 Radios (Bass)
11
4311339
RADIO, E.T.R w/CLOCK
- w/4311687,4311956 Radios (Treble)
11
4311341
RADIO, E.T.R w/CLOCK
- w/4311687,4311956 Radios (Secondary)
11
4311555
RADIO, E.T.R w/CLOCK
- w/4311103 Radio (Primary)
- Require Quantity: 2
11
4311558
RADIO, E.T.R w/CLOCK
- w/4311103 Radio (Secondary)
- Require Quantity: 2
11
4311687
RADIO, E.T.R w/CLOCK
- Am/Fm/Mx w/Cassette
11
4311956
RADIO, E.T.R w/CLOCK
- Am/Fm/Mx
11
4331529
RADIO, E.T.R w/CLOCK
- JUMPER, Radio
11
4364483
RADIO, E.T.R w/CLOCK
- Bright (KNOB PACKAGE, "Joy Stick")
11
4364484
RADIO, E.T.R w/CLOCK
- Black (KNOB PACKAGE, "Joy Stick")
11
4370129
RADIO, E.T.R w/CLOCK
- w/Pacifica Pkg.
11
4372040
RADIO, E.T.R w/CLOCK
- STRAP, Radio Ground (KNOB PACKAGE, "Joy Stick")

12
4220482
PLATE, Radio Opening w/o Radio

13
6031665
SCREW, Radio Att.
- Require Quantity: 2

14
6032632
SCREW

15
4221695
RELAY, Headlamp Delay

16
4312995
MODULE, Chimes

18
4221625
SWITCH, Glove Box

19
P390EK1
BIN and DOOR, Glove Box

20
4312681
BEZEL, Cluster
BEZEL, Cluster
20
6032778
BEZEL, Cluster
- U-NUT, Bezel Mtg.
- Require Quantity: 11

21
4311202
COVER, Steering Column Opening
SUPPORT, Steering Column Opening
21
P382EK1
COVER, Steering Column Opening
- COVER, Steering Column Opening

22
4311487
PANEL and PAD, Instrument Panel
GUSSET, Trim Pad Support
22
P509DS8
PANEL and PAD, Instrument Panel
- Charcoal
22
P509DX9
PANEL and PAD, Instrument Panel
- Black
22
P509EE8
PANEL and PAD, Instrument Panel
- Cordovan
22
P509EK1
PANEL and PAD, Instrument Panel
- Almond

23
4222729
MAST, Antenna
MAST, Antenna
23
4311392
MAST, Antenna
- w/Pacifica Pkg.

24
4222728
CAP NUT, Antenna Mtg.
CAP NUT, Antenna Mtg.
24
4372136
CAP NUT, Antenna Mtg.
- w/Pacifica Pkg.

25
4222735
ADAPTER and GASKET, Antenna
WASHER, Lock
25
4222736
ADAPTER and GASKET, Antenna
- ADAPTER and GASKET, Antenna
25
4372492
ADAPTER and GASKET, Antenna
- w/Pacifica Pkg.

26
4222739
PLUG, Hole

27
4372119
BODY and CABLE, Antenna
BODY and CABLE, Antenna
27
4372145
BODY and CABLE, Antenna
- CABLE, Antenna to Radio

4397900
COVER, Cup Holder Housing Screw
- Require Quantity: 4

4311469
DOOR, Fuse Access

4311468
FRAME, Glove Box and Cup Holder Module

4331020
FUSE PULLER

4467054
GUIDE, Secondary Cup Holder

4311465
HOLDER, Primary Cup

4311464
HOLDER, Secondary Cup

4397894
HOUSING, Cup Holder

P387DS8
LATCH and HANDLE, Glove Box
Charcoal
P387DX9
LATCH and HANDLE, Glove Box
- Black
P387EE8
LATCH and HANDLE, Glove Box
- Cordovan
P387EK1
LATCH and HANDLE, Glove Box
- Almond

P389DS8
PLATE, Cup Holder Face
Charcoal
P389DX9
PLATE, Cup Holder Face
- Black
P389EE8
PLATE, Cup Holder Face
- Cordovan
P389EK1
PLATE, Cup Holder Face
- Almond

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Chrysler LeBaron GTS parts. Parts like Instrument Panel Bezels, Glovebox And Radio are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
