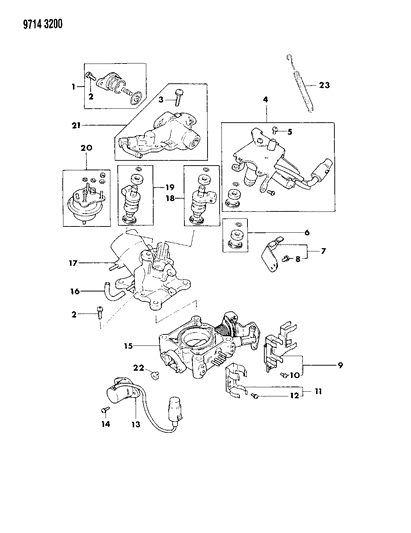

Diagram (1 of 1): FUEL MIXER INNER PARTS - F ENGINE 24 RWD CONQUEST

1989 Chrysler Conquest Injection Mixer Inner Parts Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price

Part No. &
Part Description

1
MD614108
DAMPER KIT, Pulsation

2
MF350170
SCREW and WASHER (5x16mm)
- Require Quantity:
  4

3
MF350195
SCREW and WASHER (6x20))
- Require Quantity:
  2

4
MD614101
SERVO, ISC

5
MD614066
SCREW and WASHER
- Require Quantity:
  4

6
MD614110
SEAL SET, Injector

7
MD608911
BRACKET, Throttle Cable

8
MF350167
SCREW and WASHER (5x10mm)
- Require Quantity:
  2

9
MD614117
BRACKET, Connector

10
MD614080
SCREW and WASHER
- Require Quantity:
  2

11
MD608926
BRACKET, Connector

12
MF350143
SCREW and WASHER (4x8mm)

13
MD614078
SENSOR, Throttle

14
MD614065
SCREW and WASHER
- Require Quantity:
  2

15
MD614105
BODY, Throttle

16
MD608746
HOSE (80)

17
MD614107
BODY, Mixing

18
MD614036
INJECTOR SET, Front (Stamped "L")

19
MD614102
INJECTOR SET, Rear (Stamped "M")

20
MD614109
REGULATOR, Fuel Pressure

21
MD608905
HOLDER, Injector

22
MD608978
JOINT

23
MD606647
SPRING, Throttle Return

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Chrysler Conquest parts. Parts like Injection Mixer Inner Parts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.3L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
