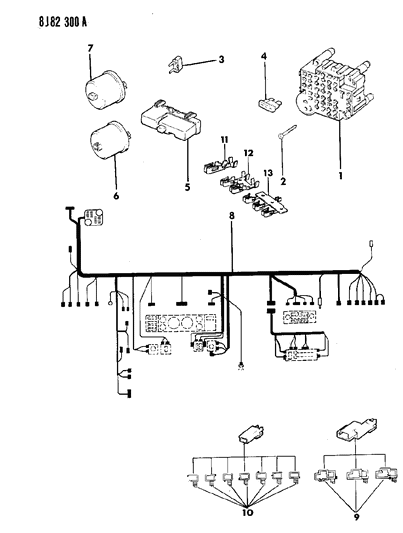

Diagram (1 of 1): ELECTRICAL - INSTRUMENT PANEL AND CONSOLES FUSE PANEL-INSTRUMENT PANEL WIRING WRANGLER, YJ
1990 Jeep Wrangler Fuse Panel - Instrument Panel Wiring Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    J5750329
    PANEL, Fuse
  • 2
    34201598
    SCREW
    • Require Quantity: 2
  • 3
    56002069
    BREAKER, Circuit
    • 6 Ampere
  • 3
    56003116
    BREAKER, Circuit
    • 5.3 Ampere
  • 4
    J3231213
    FUSE
    • 5 Ampere
  • 4
    J3231216
    FUSE
    • 15 Ampere
  • 4
    J3231217
    FUSE
    • 20 Ampere
  • 4
    J3231218
    FUSE
    • 25 Ampere
  • 6
    J5452266
    FLASHER, Hazzard
  • 7
    3837161
    FLASHER, Turn Signal
  • 8
    56002161
    HARNESS, Instrument Panel
    • HARNESS, Cigar Lighter
  • 8
    56002893
    HARNESS, Instrument Panel
    • 1988
  • 8
    56003004
    HARNESS, Instrument Panel
    • 1989, w/Emission Controlled European
  • 8
    56003117
    HARNESS, Instrument Panel
    • 1989, w/o Emission Controlled European
  • 8
    56003118
    HARNESS, Instrument Panel
    • Export, w/Blackout Lights
  • 8
    56004818
    HARNESS, Instrument Panel
    • 1990,w/o Emission Controlled European
  • 8
    56004822
    HARNESS, Instrument Panel
    • 1990, w/Emission Controlled European
  • 9
    J4179540
    CONNECTOR
    • Brown
  • 9
    J4179542
    CONNECTOR
    • Green
  • 9
    J4179630
    CONNECTOR
    • Black
  • 10
    J4179530
    CONNECTOR
    • Orange
  • 10
    J4179531
    CONNECTOR
    • Black
  • 10
    J4179532
    CONNECTOR
    • Green
  • 10
    J4179533
    CONNECTOR
    • Beige
  • 10
    J4179534
    CONNECTOR
    • Blue
  • 10
    J4179535
    CONNECTOR
    • Brown
  • 10
    J4179537
    CONNECTOR
    • Red
  • 12
    J3231224
    TERMINAL
    • Require Quantity: 3
  • 13
    J3231225
    TERMINAL
Genuine Mopar Parts, the Right Choice
