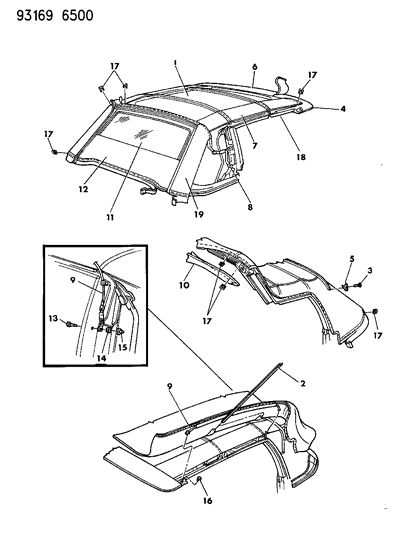

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS CONVERTIBLE TOP J BODY 27

1993 Chrysler LeBaron GTC Convertible Top Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
GY25LB7
COVER ASSEMBLY (w/Three Pockets)
Blue
1
GY25LV2
COVER ASSEMBLY (w/Three Pockets)
- Champagne
1
GY25LW7
COVER ASSEMBLY (w/Three Pockets)
- White
1
GY25LX9
COVER ASSEMBLY (w/Three Pockets)
- Black

2
4490133
BOW ASSEMBLY
#1 Bow
2
4490134
BOW ASSEMBLY
- #2 Bow
2
4490135
BOW ASSEMBLY
- #3 Bow

4
5253965
HEADER and LATCH ASSEMBLY

5
4491774
CAP, #3 Bow Moulding End
- Require Quantity: 2

6
4097784
PAD, Header

7
4549193
STAY, Side
- Require Quantity: 2

8
4713440
RAIL ASSEMBLY, f/Top, Right
RAIL ASSEMBLY, f/Top, Right
8
4713441
RAIL ASSEMBLY, f/Top, Right
- RAIL ASSEMBLY, f/Top, Left

9
4305011
CABLE
Spring
Require Quantity: 2
9
4655518
CABLE
- CABLE
- Require Quantity: 2
- Package Quantity: 1

10
GY34LB7
WELT, f/Top Header
Blue
10
GY34LV2
WELT, f/Top Header
- Champagne
10
GY34LW7
WELT, f/Top Header
- White
10
GY34LX9
WELT, f/Top Header
- Black

11
GY27LB7
WINDOW, Rear f/Top Heated
Blue
11
GY27LV2
WINDOW, Rear f/Top Heated
- Champagne
11
GY27LW7
WINDOW, Rear f/Top Heated
- White
11
GY27LX9
WINDOW, Rear f/Top Heated
- Black

15
4491698
CAP
- Require Quantity: 2

16
4454701
RETAINER PLUG
- Require Quantity: 2

18
4114785
COVER ASSEMBLY, Headliner
FASTENER, Headliner
Require Quantity: 4
18
FY74LAZ
COVER ASSEMBLY, Headliner
- Agate
18
FY74LB9
COVER ASSEMBLY, Headliner
- Blue
18
FY74LM7
COVER ASSEMBLY, Headliner
- Red
18
FY74LV8
COVER ASSEMBLY, Headliner
- Champagne

19
4549193
STAY, Rear
- Require Quantity: 2

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1993 Chrysler LeBaron GTC parts. Parts like Convertible Top are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
