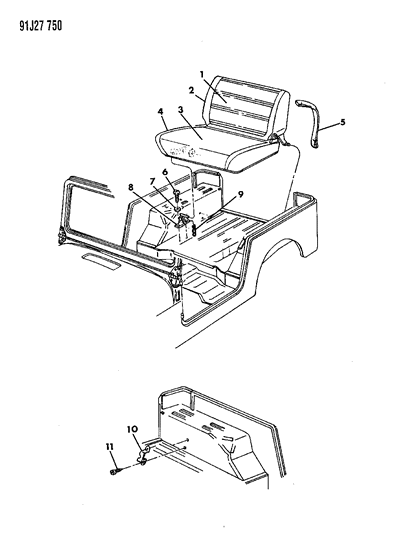

Diagram (1 of 1): WRANGLER SEAT ASSEMBLIES AND SEAT COVERS REAR SEAT WRANGLER, YJ, 1992-93
1993 Jeep Wrangler Seat Assemblies & Seat Covers Rear Seat Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    5CH28LS1
    COVER, Seat Back
    • (P6XS), Vinyl (Charcoal)
  • 1
    5CH28LTB
    COVER, Seat Back
    • (P6XT or P6TB), Vinyl (Spice)
  • 1
    5CH40LG8
    COVER, Seat Back
    • Dark Green, (C5XG or C5TG), Cloth
  • 1
    5CH52LRC
    COVER, Seat Back
    • Radiant Red, (T5RX), Cloth (Charcoal)
  • 1
    5CH52LS1
    COVER, Seat Back
    • (T5XS), Cloth (Charcoal)
  • 1
    5CH52LTB
    COVER, Seat Back
    • (T5XT or T5TB), Cloth (Spice)
  • 1
    5DA76LTB
    COVER, Seat Back
    • (LJTB), Leather, EUROPE (Spice)
  • 2
    5CH26LS1
    BACK ASSEMBLY COMPLETE, includes cover
    • (P6XS), Vinyl (Charcoal)
  • 2
    5CH26LTB
    BACK ASSEMBLY COMPLETE, includes cover
    • (P6XT or P6TB), Vinyl (Spice)
  • 2
    5CH38LG8
    BACK ASSEMBLY COMPLETE, includes cover
    • Dark Green, (C5XG or C5TG), Cloth
  • 2
    5CH50LRC
    BACK ASSEMBLY COMPLETE, includes cover
    • Radiant Red, (T5RX), Cloth (Charcoal)
  • 2
    5CH50LS1
    BACK ASSEMBLY COMPLETE, includes cover
    • (T5XS), Cloth (Charcoal)
  • 2
    5CH50LTB
    BACK ASSEMBLY COMPLETE, includes cover
    • (T5XT or T5TB), Cloth (Spice)
  • 2
    5DA74LTB
    BACK ASSEMBLY COMPLETE, includes cover
    • (LJTB), Leather, EUROPE (Spice)
  • 3
    5CH24LS1
    COVER, Cushion
    • (P6XS), Vinyl (Charcoal)
  • 3
    5CH24LTB
    COVER, Cushion
    • (P6XT or P6TB), Vinyl (Spice)
  • 3
    5CH36LG8
    COVER, Cushion
    • Dark Green, (C5XG or C5TG), Cloth
  • 3
    5CH48LRC
    COVER, Cushion
    • Radiant Red, (T5RX), Cloth (Charcoal)
  • 3
    5CH48LS1
    COVER, Cushion
    • (T5XS), Cloth (Charcoal)
  • 3
    5CH48LTB
    COVER, Cushion
    • (T5XT or T5TB), Cloth (Spice)
  • 3
    5DA72LTB
    COVER, Cushion
    • (LJTB), Leather, EUROPE (Spice)
  • 4
    5CH22LS1
    CUSHION ASSEMBLY COMPLETE, includes cover and release lever
    • (P6XS), Vinyl (Charcoal)
  • 4
    5CH22LTB
    CUSHION ASSEMBLY COMPLETE, includes cover and release lever
    • (P6XT), Vinyl (Spice)
  • 4
    5CH34LG8
    CUSHION ASSEMBLY COMPLETE, includes cover and release lever
    • Dark Green, (C5XG or C5TG), Cloth
  • 4
    5CH46LRC
    CUSHION ASSEMBLY COMPLETE, includes cover and release lever
    • Radiant Red, (T5RX), Cloth (Charcoal)
  • 4
    5CH46LS1
    CUSHION ASSEMBLY COMPLETE, includes cover and release lever
    • (T5XS), Cloth (Charcoal)
  • 4
    5CH46LTB
    CUSHION ASSEMBLY COMPLETE, includes cover and release lever
    • (T5XT), Cloth (Spice)
  • 4
    5DA70LTB
    CUSHION ASSEMBLY COMPLETE, includes cover and release lever
    • (LJTB), Leather, EUROPE (Spice)
  • 6
    J4004626
    SCREW
    • Require Quantity: 4
  • 9
    J4006061
    PIN, (cushion frame to pivot bracket)
    • Require Quantity: 2
  • 10
    55007759
    BRACKET, Rear Seat Back Lock Striker
    • Require Quantity: 2
  • 11
    Jeep 6034564
    6034564
    SCREW
    • Require Quantity: 4
  • 4638585
    BOLT, Torx, Shoulder, (seat back pivot and release lever)
    • Require Quantity: 3
  • 4637926
    BRACKET ASSEMBLY, (includes bumper), EUROPE, KDX , Right
    • BRACKET ASSEMBLY, (includes bumper), EUROPE, KDX , Right
  • 4637927
    BRACKET ASSEMBLY, (includes bumper), EUROPE, KDX , Right
    • BRACKET ASSEMBLY, (includes bumper), EUROPE, KDX , Left
  • 4713799
    WASHER, Rear Seat Pivot, Black Nylon
    • Require Quantity: 2
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1993 Jeep Wrangler parts. Parts like Seat Assemblies & Seat Covers Rear Seat are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.0L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
