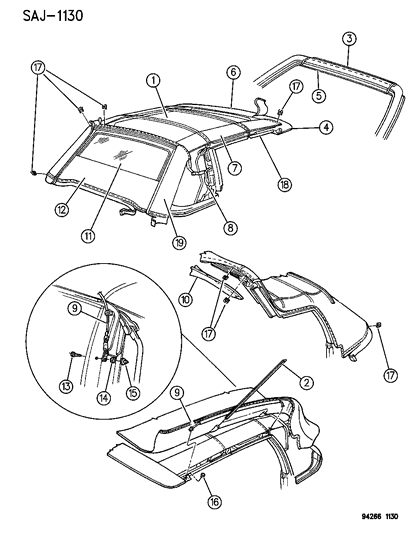

Diagram (1 of 1): SHEET METAL - BODY J-BODY CONVERTIBLE TOP J BODY
1994 Chrysler LeBaron GTC Convertible Top Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 2
    4490133
    BOW ASSEMBLY
    • #1 Bow
  • 2
    4490134
    BOW ASSEMBLY
    • #2 Bow
  • 2
    4490135
    BOW ASSEMBLY
    • #3 Bow
  • 2
    5256913
    BOW ASSEMBLY
    • CAP, #3 Bow
    • Require Quantity: 2
  • 3
    4371025
    FRAME, w/Shield Header Outer
  • 4
    5253965
    HEADER and LATCH ASSEMBLY
  • 5
    5256568
    FRAME, w/Shield Header Inner
  • 6
    4097784
    PAD, Header
  • 7
    4655732
    STAY, Rear And Side Package
    • STAY and TAPE ASSY., Side , Right
  • 7
    4655733
    STAY, Rear And Side Package
    • STAY and TAPE ASSY., Side , Left
  • 7
    4728774
    STAY, Rear And Side Package
    • STAY, Rear And Side Package
    • Require Quantity: 2
  • 8
    4720492
    RAIL ASSEMBLY, f/Top, Right
    • RAIL ASSEMBLY, f/Top, Right
  • 8
    4720493
    RAIL ASSEMBLY, f/Top, Right
    • RAIL ASSEMBLY, f/Top, Left
  • 9
    4305011
    CABLE
    • Spring
    • Require Quantity: 2
  • 9
    4655518
    CABLE
    • CABLE
    • Require Quantity: 2
    • Package Quantity: 1
  • 11
    JS15MV2
    WINDOW, Rear f/Top Heated
    • Buckskin
  • 11
    JS15MW7
    WINDOW, Rear f/Top Heated
    • Bright White
  • 11
    JS15MX9
    WINDOW, Rear f/Top Heated
    • Flat Black
  • 14
    0271166
    NUT
    • Require Quantity: 2
  • 15
    4491698
    CAP
    • Require Quantity: 2
  • 16
    4454701
    RETAINER PLUG
    • Require Quantity: 2
  • 18
    FY74LAZ
    COVER ASSEMBLY, Headliner
    • Agate
  • 18
    FY74LB9
    COVER ASSEMBLY, Headliner
    • Blue
  • 18
    FY74LM7
    COVER ASSEMBLY, Headliner
    • Red
  • 18
    FY74LV8
    COVER ASSEMBLY, Headliner
    • Champagne
  • 5253565
    SEAL, H/Top Frt. Hdr. & Side Rail Secondary
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1994 Chrysler LeBaron GTC parts. Parts like Convertible Top are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.0L. Transmission: 4-Speed Automatic Transmission.
