3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.INTERIOR TRIM DAKOTA P-UP SEAT--FRONT N BODY TRIM CODE E1

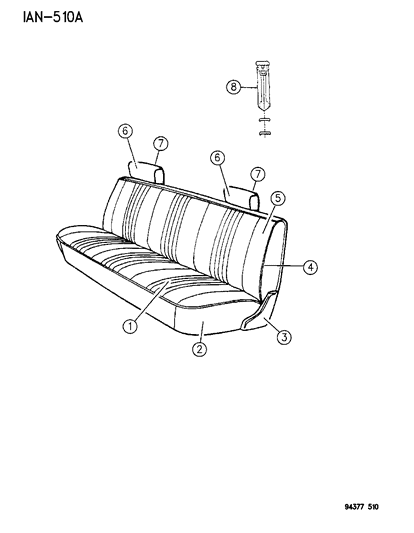

    1996 Dodge Dakota Front Seat Diagram 1
  • 2.INTERIOR TRIM DAKOTA P-UP SEAT--FRONT N BODY TRIM CODE N3

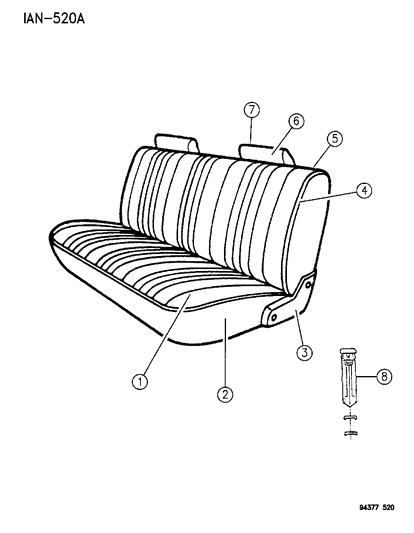

    1996 Dodge Dakota Front Seat Diagram 2
  • 3.INTERIOR TRIM DAKOTA P-UP SEAT--FRONT N-BODY TRIM CODES C2

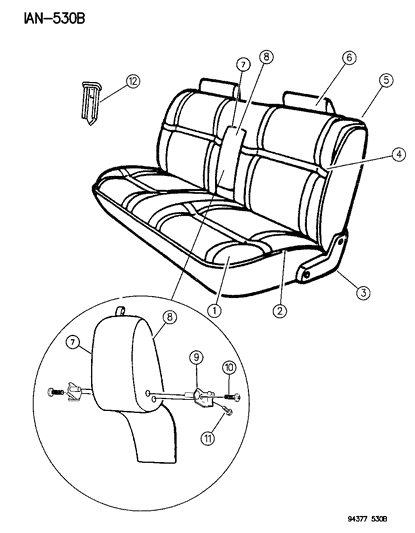

    1996 Dodge Dakota Front Seat Diagram 3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    JR78PB7
    CUSHION, w/Spring, Frame Pad and Cover
    • Blue, (C2B7) (1994,95)
  • 1
    JR78PDS
    CUSHION, w/Spring, Frame Pad and Cover
    • Quartz, (C2D5) (1994,95)
      Quartz, (C2D5) (1996)
  • 1
    JR78PMA
    CUSHION, w/Spring, Frame Pad and Cover
    • Red, (C2M6) (1994,95)
  • 1
    JR78SP8
    CUSHION, w/Spring, Frame Pad and Cover
    • Blue Spruce, (C2P8) (1996)
  • 1
    JR88PB7
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, (N3B7) (1994,95)
  • 1
    JR88PDS
    CUSHION, w/Spring, Frame, Pad and Cover
    • Quartz, (N3D5) (1994,95)
  • 1
    JR88PFF
    CUSHION, w/Spring, Frame, Pad and Cover
    • Driftwood, (N3F6) (1994,95)
  • 1
    JR88PMA
    CUSHION, w/Spring, Frame, Pad and Cover
    • Red, (N3M6) (1994,95)
  • 1
    JS00PB7
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, (E1B7) (1994,95)
  • 1
    JS00PDS
    CUSHION, w/Spring, Frame, Pad and Cover
    • Quartz, (E1D5) (1994,95)
      Quartz, (E1D5) (1996)
  • 1
    JS00PMA
    CUSHION, w/Spring, Frame, Pad and Cover
    • Red, (E1M6) (1994,95)
  • 1
    JS00SP8
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue Spruce, (E1P8) (1996)
  • 1
    PS78SD3
    CUSHION, w/Spring, Frame, Pad and Cover
    • Silver, (N3D5) (1996)
  • 1
    PS78SF5
    CUSHION, w/Spring, Frame, Pad and Cover
    • Quartz, (N3F6) (1996)
  • 1
    PS78SP8
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue Spruce, (N3P8) (1996)
  • 2
    JR79PB7
    COVER, Cushion
    • Blue, (C2B7) (1994,95)
  • 2
    JR79PDS
    COVER, Cushion
    • Quartz, (C2D5) (1994,95)
      Quartz, (C2D5) (1996)
  • 2
    JR79PMA
    COVER, Cushion
    • Red, (C2M6) (1994,95)
  • 2
    JR79SP8
    COVER, Cushion
    • Blue Spruce, (C2P8) (1996)
  • 2
    JR91PB7
    COVER, Cushion
    • Blue, (N3B7) (1994,95)
  • 2
    JR91PDS
    COVER, Cushion
    • Quartz, (N3D5) (1994,95)
  • 2
    JR91PFF
    COVER, Cushion
    • Driftwood, (N3F6) (1994,95)
  • 2
    JR91PMA
    COVER, Cushion
    • Red, (N3M6) (1994,95)
  • 2
    JS01PB7
    COVER, Cushion
    • Blue, (E1B7) (1994,95)
  • 2
    JS01PDS
    COVER, Cushion
    • Quartz, (E1D5) (1994,95)
      Quartz, (E1D5) (1996)
  • 2
    JS01PMA
    COVER, Cushion
    • Red, (E1M6) (1994,95)
  • 2
    JS01SP8
    COVER, Cushion
    • Blue Spruce, (E1P8) (1996)
  • 2
    PS79SD3
    COVER, Cushion
    • Silver, (N3D5) (1996)
  • 2
    PS79SF5
    COVER, Cushion
    • Quartz, (N3F6) (1996)
  • 2
    PS79SP8
    COVER, Cushion
    • Blue Spruce, (N3P8) (1996)
  • 3
    S528LMA
    COVER, Hinge
  • 3
    S528PB7
    COVER, Hinge
  • 3
  • 3
    S528PF6
    COVER, Hinge
    • Driftwood, (N3F6), Right (1994,95)
  • 3
    S528SD3
    COVER, Hinge
    • Silver, (N3D5), Right (1996)
  • 3
    S528SF5
    COVER, Hinge
    • Tan, (N3F6), Right (1996)
  • 3
    S528SP8
    COVER, Hinge
  • 3
    S529LMA
    COVER, Hinge
    • Red, (N3M6), Left (1994,95)
  • 3
    S529PB7
    COVER, Hinge
    • Blue, (N3B7), Left (1994,95)
  • 3
  • 3
    S529PF6
    COVER, Hinge
    • Driftwood, (N3F6), Left (1994,95)
  • 3
    S529SD3
    COVER, Hinge
    • Silver, (N3D5), Left (1996)
  • 3
    S529SF5
    COVER, Hinge
    • Tan, (N3F6), Left (1996)
  • 3
    S529SP8
    COVER, Hinge
  • 3
    S528LMA
    COVER, Hinge Arm
    • Red, (C2M6), Right (1994,95)
      Red, (E1M6), Right (1994,95)
  • 3
    S528PB7
    COVER, Hinge Arm
    • Blue, (C2B7), Right (1994,95)
      Blue, (E1B7), Right (1994,95)
  • 3
  • 3
    S528PDS
    COVER, Hinge Arm
  • 3
    S528SP8
    COVER, Hinge Arm
  • 3
    S529LMA
    COVER, Hinge Arm
  • 3
    S529PB7
    COVER, Hinge Arm
  • 3
    S529PD5
    COVER, Hinge Arm
    • Quartz, (C2D5), Left (1994,95)
      Quartz, (E1D5), Left (1994,95)
      Quartz, (E1D5), Left (1996)
  • 3
    S529PDS
    COVER, Hinge Arm
    • Quartz, (C2D5), Left (1996)
  • 3
    S529SP8
    COVER, Hinge Arm
  • 4
    JR76PB7
    BACK, w/Spring, Frame, Pad and Cover
    • Blue, (C2B7) (1994,95)
  • 4
    JR76PDS
    BACK, w/Spring, Frame, Pad and Cover
    • Quartz, (C2D5) (1994,95)
      Quartz, (C2D5) (1996)
  • 4
    JR76PMA
    BACK, w/Spring, Frame, Pad and Cover
    • Red, (C2M6) (1994,95)
  • 4
    JR76SP8
    BACK, w/Spring, Frame, Pad and Cover
    • Blue Spruce, (C2P8) (1996)
  • 4
    JR98PB7
    BACK, w/Spring, Frame, Pad and Cover
    • Blue, (E1B7) (1994,95)
  • 4
    JR98PDS
    BACK, w/Spring, Frame, Pad and Cover
    • Quartz, (E1D5) (1994,95)
      Quartz, (E1D5) (1996)
  • 4
    JR98PMA
    BACK, w/Spring, Frame, Pad and Cover
    • Red, (E1M6) (1994,95)
  • 4
    JR98SP8
    BACK, w/Spring, Frame, Pad and Cover
    • Blue Spruce, (E1P8) (1996)
  • 4
    LH83PB7
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (N3B7) (1994,95)
  • 4
    LH83PDS
    BACK, w/Spring/Frame, Pad and Cover
    • Quartz, (N3D5) (1994,95)
  • 4
    LH83PFF
    BACK, w/Spring/Frame, Pad and Cover
    • Driftwood, (N3F6) (1994,95)
  • 4
    LH83PMA
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (N3M6) (1994,95)
  • 4
    PS76SD3
    BACK, w/Spring/Frame, Pad and Cover
    • Silver, (N3D5) (1996)
  • 4
    PS76SF5
    BACK, w/Spring/Frame, Pad and Cover
    • Tan, (N3F6) (1996)
  • 4
    PS76SP8
    BACK, w/Spring/Frame, Pad and Cover
    • Blue Spruce, (N3P8) (1996)
  • 5
    JR77PB7
    COVER, Back
    • Blue, (C2B7) (1994,95, Up to 2-1-95)
  • 5
    JR77PDS
    COVER, Back
    • Quartz, (C2D5) (1994,95, Up to 2-1-95)
  • 5
    JR77PMA
    COVER, Back
    • Red, (C2M6) (1994,95, Up to 2-1-95)
  • 5
    JR87PB7
    COVER, Back
    • Blue, (N3B7) (1994,95, Up to 2-1-95)
  • 5
    JR87PDS
    COVER, Back
    • Quartz, (N3D5) (1994,95, Up to 2-1-95)
  • 5
    JR87PFF
    COVER, Back
    • Driftwood, (N3F6) (1994,95, Up to 2-1-95)
  • 5
    JR87PMA
    COVER, Back
    • Red, (N3M6) (1994,95, Up to 2-1-95)
  • 5
    JR99PB7
    COVER, Back
    • Blue, (E1B7) (1994,95, Up to 2-1-95)
  • 5
    JR99PDS
    COVER, Back
    • Quartz, (E1D5) (1994,95, Up to 2-1-95)
  • 5
    JR99PMA
    COVER, Back
    • Red, (E1M6) (1994,95, Up to 2-1-95)
  • 5
    LH84PB7
    COVER, Back
    • Blue, (N3M7) (1995, After 2-1-95)
  • 5
    LH84PDS
    COVER, Back
    • Quartz, (N3D50 (1995, After 2-1-95)
  • 5
    LH84PFF
    COVER, Back
    • Driftwood, (N3F6) (1995, After 2-1-95)
  • 5
    LH84PMA
    COVER, Back
    • Red, (N3M6) (1995, After 2-1-95)
  • 5
    PF79RB7
    COVER, Back
    • Blue, (C2B7) (1995, After 2-1-95)
  • 5
    PF79RDS
    COVER, Back
    • Quartz, (C2D5) (1995, After 2-1-95)
      Quartz, (C3D5) (1996)
  • 5
    PF79RMA
    COVER, Back
    • Red, (C2M6) (1995, After 2-1-95)
  • 5
    PF79SP8
    COVER, Back
    • Blue Spruce, (C2B7) (1996)
  • 5
    PF80RB7
    COVER, Back
    • Blue, (E1B7) (1995, After 2-1-95)
  • 5
    PF80RDS
    COVER, Back
    • Quartz, (E1D5) (1995, After 2-1-95)
      Quartz, (E1D5) (1996)
  • 5
    PF80RMA
    COVER, Back
    • Red, (E1M6) (1995, After 2-1-95)
  • 5
    PF80SP8
    COVER, Back
    • Blue Spruce, (E1P8) (1996)
  • 5
    PS77SD3
    COVER, Back
    • Silver, (N3D5) (1996)
  • 5
    PS77SF5
    COVER, Back
    • Tan, (N3F6) (1996)
  • 5
    PS77SP8
    COVER, Back
    • Blue Spruce, (N3P8) (1996)
  • 6
    5DV66PB7
    HEADREST and COVER
    • Blue, (C2B7) (1994,95)
    • Require Quantity: 2
  • 6
    5DV66PDS
    HEADREST and COVER
    • Quartz, (C2D5) (1994,95)
      Quartz, (C2D5) (1996)
    • Require Quantity: 2
  • 6
    5DV66PMA
    HEADREST and COVER
    • Red, (C2M6) (1994,95)
    • Require Quantity: 2
  • 6
    5DV66SP8
    HEADREST and COVER
    • Blue Spruce, (C2P8) (1996)
    • Require Quantity: 2
  • 6
    5DV67PB7
    HEADREST and COVER
    • Blue, (E1B7) (1994,95)
    • Require Quantity: 2
  • 6
    5DV67PDS
    HEADREST and COVER
    • Quartz, (E1D5) (1994,95)
      Quartz, (E1D5) (1996)
    • Require Quantity: 2
  • 6
    5DV67PMA
    HEADREST and COVER
    • Red, (E1M6) (1994,95)
    • Require Quantity: 2
  • 6
    5DV67SP8
    HEADREST and COVER
    • Blue Spruce, (E1P8) (1996)
    • Require Quantity: 2
  • 6
    5DV68PB7
    HEADREST and COVER
    • Blue, (N3B7) (1994,95)
    • Require Quantity: 2
  • 6
    5DV68PDS
    HEADREST and COVER
    • Quartz, (N3D5) (1994,95)
    • Require Quantity: 2
  • 6
    5DV68PFF
    HEADREST and COVER
    • Driftwood, (N3F6) (1994,95)
    • Require Quantity: 2
  • 6
    5DV68PMA
    HEADREST and COVER
    • Red, (N3M6) (1994,95)
    • Require Quantity: 2
  • 6
    5DV68SD3
    HEADREST and COVER
    • Silver, (N3D5) (1996)
    • Require Quantity: 2
  • 6
    5DV68SF5
    HEADREST and COVER
    • Tan, (N3FF) (1996)
    • Require Quantity: 2
  • 6
    5DV68SP8
    HEADREST and COVER
    • Blue Spruce, (N3P8) (1996)
    • Require Quantity: 2
  • 7
    JR90PB7
    COVER, Armrest
    • Blue, (N3B7) (1994,95)
    • Require Quantity: 2
  • 7
    JR90PDS
    COVER, Armrest
    • Quartz, (N3D5) (1994,95)
    • Require Quantity: 2
  • 7
    JR90PFF
    COVER, Armrest
    • Driftwood, (N3F6) (1994,95)
    • Require Quantity: 2
  • 7
    JR90PMA
    COVER, Armrest
    • Red, (N3M6) (1994,95)
    • Require Quantity: 2
  • 7
    JR90SD3
    COVER, Armrest
    • Silver, (N3D5) (1996)
    • Require Quantity: 2
  • 7
    JR90SF5
    COVER, Armrest
    • Tan, (N3F6) (1996)
    • Require Quantity: 2
  • 7
    JR90SP8
    COVER, Armrest
    • Blue Spruce, (N3P8) (1996)
    • Require Quantity: 2
  • 8
    JR89PB7
    ARMREST and COVER
    • Blue, (N3B7) (1994,95)
  • 8
    JR89PDS
    ARMREST and COVER
    • Quartz, (N3D5) (1994,95)
  • 8
    JR89PFF
    ARMREST and COVER
    • Driftwood, (N3F6) (1994,95)
  • 8
    JR89PMA
    ARMREST and COVER
    • Red, (N3M6) (1994,95)
  • 8
    JR89SD3
    ARMREST and COVER
    • Silver, (N3D5) (1996)
  • 8
    JR89SF5
    ARMREST and COVER
    • Tan, (N3F6) (1996)
  • 8
    JR89SP8
    ARMREST and COVER
    • Blue Spruce, (N3P8) (1996)
  • 8
    5BK60KM6
    SLEEVE, Headrest
    • Red, (C2M6) (1994,95)
      Red, (E1M6) (1994,95)
    • Require Quantity: 4
  • 8
    5BK60PB7
    SLEEVE, Headrest
    • Blue, (C2B7) (1994,95)
      Blue, (E1B7) (1994,95)
    • Require Quantity: 4
  • 8
    5BK60PD5
    SLEEVE, Headrest
    • Quartz, (C2D5) (1994,95)
      Quartz, (C2D5) (1996, Up to 9-29-95)
      Quartz, (E1D5) (1994,95)
      Quartz, (E1D5) (1996, Up to 9-29-95)
    • Require Quantity: 4
  • 8
    5BK60SP8
    SLEEVE, Headrest
    • Blue Spruce, (C2P8) (1996, Up to 9-29-95)
      Blue Spruce, (E1P8) (1996, Up to 9-29-95)
    • Require Quantity: 4
  • 8
    PY22SDS
    SLEEVE, Headrest
    • Silver, (C2D5) (1996, After 9-29-95)
      Silver, (E1D5) (1996, After 9-29-95)
    • Require Quantity: 4
  • 8
    PY22SP8
    SLEEVE, Headrest
    • Blue Spruce, (C2P8) (1996, After 9-29-95)
      Blue Spruce, (E1P8) (1996, After 9-29-95)
    • Require Quantity: 4
  • 12
    5BK60KM6
    SLEEVE, Headrest
    • Red, (N3M6) (1994,95)
    • Require Quantity: 4
  • 12
    5BK60PB7
    SLEEVE, Headrest
    • Blue, (N3B7) (1994,95)
    • Require Quantity: 4
  • 12
    5BK60PD5
    SLEEVE, Headrest
    • Quartz, (N3D5) (1994,95)
    • Require Quantity: 4
  • 12
    5BK60PF6
    SLEEVE, Headrest
    • Driftwood, (N3F6) (1994,95)
    • Require Quantity: 4
  • 12
    5BK60SD3
    SLEEVE, Headrest
    • Silver, (N3D5) (1996, Up to 9-29-95)
    • Require Quantity: 4
  • 12
    5BK60SF5
    SLEEVE, Headrest
    • Tan, (N3F6) (1996, Up to 9-29-95)
    • Require Quantity: 4
  • 12
    5BK60SP8
    SLEEVE, Headrest
    • Blue Spruce, (N3P8) (1996, Up to 9-29-95)
    • Require Quantity: 4
  • 12
    PY22SDS
    SLEEVE, Headrest
    • Silver, (N3D5) (1996, After 9-29-95)
    • Require Quantity: 4
  • 12
    PY22SF5
    SLEEVE, Headrest
    • Tan, (N3D5) (1996, After 9-29-95)
    • Require Quantity: 4
  • 12
    PY22SP8
    SLEEVE, Headrest
    • Blue Spruce, (N3P8) (1996, After 9-29-95)
    • Require Quantity: 4
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1996 Dodge Dakota parts. Parts like Front Seat are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.9L, 8 Cyl 5.2L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
