Make sure this part fits

Jeep 68138644AA Engine Oil Pump

2011-2014 Jeep 68138644AA

Customer Questions & Expert Answers (2)

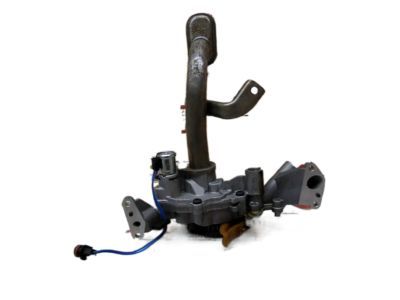

68138644AA Mopar Engine Oil Pump Product Photo 1 of 4
  • Part Description
    Pump Kit Engine Oil
  • Replaced By
    68252670AB
  • Manufacturer
    Mopar
Make sure this part fits
$205.30 MSRP: $308.00
You Save: $102.70 (34%)
Currently Unavailable

Due to manufacturer supply shortage, this item isn't currently available for ordering.

  • Related Parts
  • Specifications
  • Fitment
  • Q&A
  • Product Specifications

    BrandGenuine Jeep
    Manufacturer Part Number68138644AA
    Part DescriptionPump Kit Engine Oil
    Item Dimensions11.2 x 8.2 x 8.0 inches
    Item Weight4.70 Pounds
    ConditionNew
    ManufacturerMopar
    SKU68138644AA
    WarrantyThis genuine Mopar part is guaranteed by Mopar's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65
  • Vehicle Fitment

    Year Make Model Engine Important vehicle option details
    2014 Jeep Cherokee6 Cyl 3.2LLatitude AWD, Latitude FWD, Limited AWD, Limited FWD, Trailhawk AWD
    2011-2014 Jeep Grand Cherokee6 Cyl 3.6LLaredo 2WD, Laredo 4WD, Limited 2WD, Limited 4WD, Overland 2WD, Overland 4WD, Summit AWD, Summit RWD
    2012-2014 Jeep Wrangler6 Cyl 3.6LRubicon, Sahara, Sport, Unlimited Rubicon, Unlimited Sahara 4WD, Unlimited Sport 4WD
  • Customer Questions & Expert Answers

    Q:
    Will this fit my truck?
    A:
    You can Select Your Vehicle to check if 68138644AA fits your vehicle.
    Posted and answered by Mopar Parts Specialist Daniel
    Q:
    How to remove and install an Oil Pump in 3.6L V6 engine on Chrysler 200? Posted by Jarell M.
    A:
    Before removal of the oil pump, it is advisable to disconnect the negative terminal of the battery from the remote ground terminal of battery. Lift the front of the vehicle and prop it up on jackstands and engage the parking brake and place wheel chocks behind the rear wheels. Remove the engine oil, then plastic bolts from the lower splash and the shield. Then remove lower and upper oil pans, then the fastener and the oil pump pick-up tube with O-ring to be discarded. Remove the oil pump solenoid electrical connection from the engine, push the locking tab and fit the connector into the block carefully as it will be in the way of the tensioner mounting bolt. Take out the bolts of the oil pump timing gear splash shield, as well as the splash shield itself; gently push the oil pump chain tensioner away from the chain so that you can fit a 3 mm Allen wrench into the housing to hold the chain securely. Position arrow marks to the chain and oil pump gear, secure the gear from turning and then loosen and take out the T45 Torx sprockets mounting bolt and the gear. Screw out the Allen wrench for the tensioner to provide a way for the release and then the spring should be taken off the dowel pin together with the tensioner off the oil pump. Last of all, take out the oil pump mounting bolts and the pump, itself. To clean, merely wash them and for assessment, check the rotors for cracks and the pump cover and timing chain cover for damages; replace the whole assembly if so. Check that the body of the oil pump is warped, and that the thickness of the outer and inner rotors is correct and that the clearances between the outer rotor and the housing, as well as the space between the lobes of the inner and outer rotors are accurate. If any of these measurements is beyond the stated level, it is advisable to replace the pump. For installation, first of all, fix the oil pump on the engine block with the help of the aligning dowels and then tighten the mounting bolts of the oil pump thereafter, fit the oil pump chain tensioner on the pivot and then hold this tensioner by means of space key of 3mm. Align the timing chain gear on the bottom of the oil pump to the opening of the oil pump shaft and fasten the T45 mounting bolt provided with the gear with a view to have the same direction of the gear as before being subjected to removal. Swivel the oil pump solenoid into position to fit it properly, then position and bolt the timing gear splash, also tighten the bolts. Reverse all the above removal procedures and then you fill up the engine with oil and replace the oil filter.
    You can Select Your Vehicle to see complete installation and repair tips.
    Answered by Mopar Parts Specialist Cristian / Apr 16, 2023

Genuine Mopar Part 68138644AA, the Right Choice

To ensure reliability, purchase Mopar part # 68138644AA Engine Oil Pump. It is sometimes referred to as Oil Pump. The OEM parts should be used when the Mopar owners want to maximize their driving experience. The high-tech factories that produce these parts utilize sophisticated technology specifically designed to meet stringent factory requirements. Additionally, they are thoroughly tested and can thus be used with reliability by Mopar owners. This part fits specific Jeep Cherokee, Grand Cherokee, and Wrangler models.

MoparPartsGiant.com is a leading supplier of genuine Mopar parts and accessories such as 68138644AA Engine Oil Pump. Wondering where to find exceptional quality and affordable OEM Mopar parts? You have already come to the right place. Our website boasts a huge selection of genuine Mopar parts at attractive prices. Further, all parts come with a manufacturer's warranty. For detailed Jeep parts information, click here.
Shop MoparPartsGiant.com for dedicated service, prompt delivery, and low prices on genuine parts from real OE dealerships.
