Genuine Chrysler 300 Car Mirror

Chrysler 300 Car Mirror Parts Questions & Answers

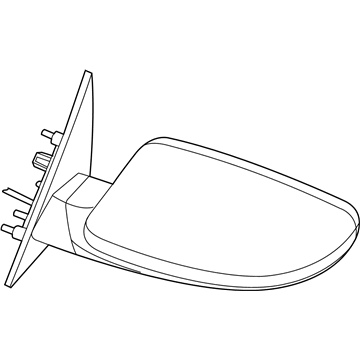

• Passenger Side Mirror Outside Rear View
  4805980AI
  Q: How to remove and install outside and inside mirrors?

  A: FOR OUTSIDE MIRRORS,Remove the door trim panel. Pull back the window trim molding, on power mirrors, unplug the electrical connector, then remove the fasteners and detach the mirror from the door. Disconnect the electrical connector, then remove the mirror mounting fasteners. Installation is the reverse of removal. INSIDE MIRROR: Remove the set screw, then slide the mirror up off the support base on the windshield. On models with optional automatic day/night mirrors, disconnect the electrical connector. Installation is the reverse of removal. If the support base for the mirror has come off the windshield, it can be reattached with a special mirror adhesive kit available at auto parts stores. Clean the glass and support base thoroughly and follow the directions on the adhesive package.

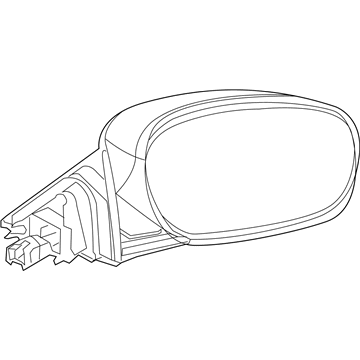

• Outside Rearview Electric Heated Mirror
  1AQ521S2AB
  Q: What are the functions and components of the electric side-view mirrors in a Chrysler 300?

  A: The electric side-view mirrors are adjustable using a driver's side switch on the left door trim panel, allowing for both up-and-down and left-to-right adjustments. Models with factory-installed dual power mirrors feature a heater grid behind the mirror glass to remove fog, ice, or snow, with the heater grid integrated into each mirror. If a heater grid malfunctions, the mirror requires replacement. The heater grid switches and the heated mirror system indicator light are part of the heater/air conditioning control panel on the dashboard, and if any of these components fail, the heater/air conditioning control assembly should be replaced. The heated mirror relay is located in one of the Fuse and relay boxes. The power mirror control switch includes a LEFT-RIGHT selector switch to adjust either side-view mirror. With the ignition in the ACC position, operate the mirror control switch through all functions for both mirrors while listening for the electric motors' sound within the mirrors. If the motors are audible but the mirror glass remains stationary, a defective drive mechanism necessitates mirror replacement. If the mirrors don't operate, check the fuse. If the fuse is intact, proceed to inspect the mirror control switch's voltage, continuity, and ground connections. If issues persist, test the mirror and its wiring for voltage and functionality, replacing the mirror if necessary.
