41 Axle Shafts found

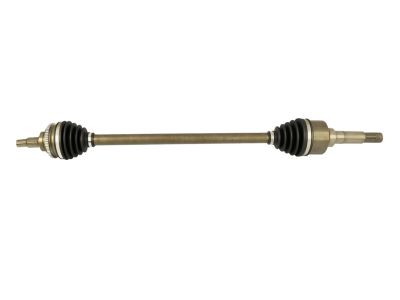

Dodge Caravan Axle Half Shaft Right
Part Number: 4641856AF$641.25 MSRP: $977.00You Save: $335.75 (35%)
Dodge Caravan Front Drive Right Shaft Assembly
Part Number: R2073659AC$121.82 MSRP: $189.00You Save: $67.18 (36%)
| Page 1 of 3 |Next >
1-20 of 41 Results
Dodge Caravan Axle Shaft
The Axle Shaft in Dodge Caravan vehicles is very crucial in transmitting power from the differential to the drive wheels to enable them rotate independently thus providing better traction during cornering. On Dodge Caravan models halfshafts are used, These are shafts that intersect CV joint at both ends of the shaft where splines are mounted for power transmission while the independent suspension system is in place. As years passed, the Dodge Caravan has mainly used u-joint halfshafts to the current models as opposed to the solid axles seem in pickup trucks and traditional RWD passenger automobiles. As halfshafts are intended to allow for this flexibility and to provide a smoother ride they can be somewhat maintenance intensive as a result of wear on the CV joints or as the result of damage sustained from their environment. In general, the Axle Shaft plays an important role in the operation of the Dodge Caravan and is critical for the delivery of power and stability of the car.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Dodge Caravan Axle Shaft at great affordable prices. Moreover, all genuine Dodge Caravan Axle Shaft come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Dodge Caravan Axle Shaft Parts Questions & Experts Answers
- Q: How to remove and install Axle Shaft on Dodge Caravan?A:To remove the wheel, set the parking brake and remove the wheel cover or hubcap. Then, remove the cotter pin, lock nut, and spring washer from the stub axle. Loosen, but do not remove, the axle shaft/hub nut and the wheel lug nuts. Raise the vehicle and securely support it on jackstands. Remove the front wheel lug nuts and the wheel. Remove the brake caliper and disc. If equipped with antilock brakes, remove the speed sensor cable routing bracket from the steering knuckle. Remove the two steering knuckle-to-strut bracket bolts. Remove the axle shaft/hub nut and pull the steering knuckle away from the outer CV joint of the axle shaft. Support the outer end of the axle shaft and insert a prybar between the inner CV joint and the transaxle case. Pry out sharply to disengage the inner CV joint from the transaxle. Carefully withdraw the inner CV joint from the transaxle, being careful not to let the spline or the snap-ring drag across the sealing lip of the axle shaft oil seal. To install, thoroughly clean the splines and bearing shield on the outer CV joint and the wheel bearing area of the steering knuckle. Thoroughly clean the splines and oil seal sealing surface on the inner CV joint and apply an even bead of multi-purpose grease around the oil seal sealing surface. When installing the axle shaft, push it sharply in to seat the snap ring on the inner CV joint stub shaft into its groove in the differential gears inside the transaxle. Pull out on the inner CV joint housing to ensure it's seated. Tighten the steering knuckle-to-strut bolts and the axle shaft/hub nut. Finally, tighten the lug nuts.
