Genuine Dodge Ram 3500 Leaf Spring

Dodge Ram 3500 Leaf Spring Parts Questions & Answers

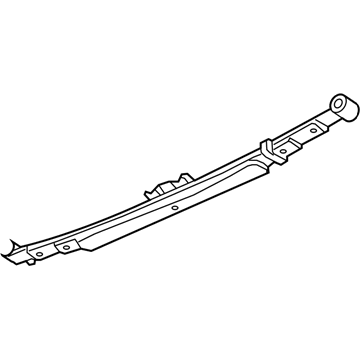

• Rear Leaf Spring
  52113320AF
  Q: How to Remove and Install a Leaf Spring?

  A: To remove the leaf spring, start by loosening the wheel lug nuts and raising the rear of the vehicle. Support it securely on jackstands placed under the frame rails. Remove the wheel and support the rear axle with a floor jack placed under the axle tube. Remove the nuts, U-bolts, spring plate, and spring seat that clamp the leaf spring to the axle. Next, remove the leaf spring shackle bolts and the shackle. Unscrew the front bolt and remove the leaf spring from the vehicle. To install the leaf spring, position it on the axle tube so that the spring center bolt enters the locating hole on the axle tube. Line up the spring front eye with the mounting bracket and install the front bolt and nut. Install the rear shackle assembly and tighten the shackle bolt and the front bolt until all slack is taken up. Install the U-bolts and nuts, tightening them until they force the spring plate against the axle. Ensure that the auxiliary spring, if equipped, aligns with the mainspring. Finally, install the wheel and lug nuts, remove the jackstands, lower the vehicle, and tighten the lug nuts, U-bolt nuts, front bolt/nut, and shackle bolts/nuts.
