How to remove and replace a power brake booster unit on Jeep Cherokee?

Depress the brake pedal several times with the engine off and make sure that there is no change in the pedal reserve distance. Depress the pedal and start the engine. If the pedal goes down slightly, operation is normal. Start the engine and turn it off after one or two minutes. Depress the brake pedal several times slowly. If the pedal goes down farther the first time but gradually rises after the second or third depression, the booster is air tight. Depress the brake pedal while the engine is running, then stop the engine with the pedal depressed. If there is no change in the pedal reserve travel after holding the pedal for 30 seconds, the booster is air tight. Power brake booster units should not be disassembled. They require special tools not normally found in most service stations or shops. They are fairly complex and because of their critical relationship to brake performance it is best to replace a defective booster unit with a new or rebuilt one. To remove the booster, first unbolt the brake master cylinder from the booster and carefully pull it forward. Disconnect the hose leading from the engine to the booster. Be careful not to damage the hose when removing it from the booster fitting. Locate the pushrod connecting the booster to the brake pedal. This is accessible from the interior in front of the driver's seat. Disconnect the brake light switch wire connector, remove the pushrod bolt nuts and pull out the bolt. Discard the bolt and nuts and obtain new ones of the same part number for installation. Remove the four nuts holding the brake booster to the firewall. You may need a light to see these, as they are up under the dash area. Slide the booster straight out from the firewall until the studs clear the holes and pull the booster, brackets and gaskets from the engine compartment area. When installing the booster pushrod to brake pedal bolt, insert it from the right side on manual transmission models and from the left side on automatic transmission models. In either case, the bolt must first pass through the brake pedal, THEN the pushrod. Installation procedures are basically the reverse of those for removal. Tighten the pushrod nuts, booster mounting nuts, and the master cylinder mounting nuts to the specified torque.

Genuine Jeep Cherokee Brake Booster

Brake Power Booster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Brake Boosters found

View related parts

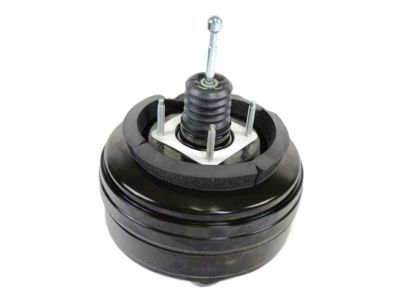

Jeep Cherokee Power Brake Booster
Part Number: 68211880AC
$397.10 MSRP: $603.00
You Save: $205.90 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68211880AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2016-2018 Jeep Cherokee | Latitude AWD, Latitude FWD, Latitude Plus AWD, Latitude Plus FWD, Limited AWD, Limited FWD, Overland AWD, Overland FWD, Sport AWD, Sport FWD, Trailhawk AWD | 4 Cyl 2.4L, 6 Cyl 3.2L
View related parts
Jeep Cherokee Power Brake Booster
Part Number: 68418189AB
$244.19 MSRP: $368.00
You Save: $123.81 (34%)
ADD TO CART
Product Specifications
- Other Name: Booster-Power Brake
- Replaced by: 68418189AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2020 Jeep Cherokee | Latitude AWD, Latitude FWD, Latitude Plus AWD, Latitude Plus FWD, Limited AWD, Limited FWD, Overland AWD, Overland FWD, Trailhawk AWD | 4 Cyl 2.0L, 4 Cyl 2.4L, 6 Cyl 3.2L
View related parts
Jeep Cherokee Power Brake Booster
Part Number: 68211880AA
$397.10 MSRP: $603.00
You Save: $205.90 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68211880AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2014 Jeep Cherokee | Latitude AWD, Latitude FWD, Limited AWD, Limited FWD, Sport AWD, Sport FWD, Trailhawk AWD | 4 Cyl 2.4L, 6 Cyl 3.2L
View related parts
Jeep Cherokee Power Brake Booster
Part Number: 68418189AA
$244.19 MSRP: $368.00
You Save: $123.81 (34%)
ADD TO CART
Product Specifications
- Other Name: Booster-Power Brake; Booster Assembly, Brake Booster
- Replaces: 68418189AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2019-2023 Jeep Cherokee | Latitude AWD, Latitude FWD, Latitude Lux AWD, Latitude Lux FWD, Latitude Plus AWD, Latitude Plus FWD, Limited AWD, Limited FWD, Overland AWD, Overland FWD, Trailhawk AWD | 4 Cyl 2.0 L GAS, 4 Cyl 2.0L, 4 Cyl 2.4 L GAS, 4 Cyl 2.4L, 6 Cyl 3.2 L GAS, 6 Cyl 3.2L
View related parts
Jeep Cherokee Power Brake Booster
Part Number: 68211880AB
$397.10 MSRP: $603.00
You Save: $205.90 (35%)
ADD TO CART
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 68211880AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2015 Jeep Cherokee | Latitude AWD, Latitude FWD, Limited AWD, Limited FWD, Sport AWD, Sport FWD, Trailhawk AWD | 4 Cyl 2.4L, 6 Cyl 3.2L
View related parts
Jeep Cherokee Booster Package, Brake
Part Number: 4720868
Product Specifications
- Other Name: Brake Booster
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1992-1996 Jeep Cherokee | 2 Door Sport Utility 2WD, 2 Door Sport Utility 4WD, 2 Door Sport Utility RHD 2WD, 2 Door Sport Utility RHD 4WD, 4 Door Sport Utility 2WD, 4 Door Sport Utility 4WD, 4 Door Sport Utility RHD 2WD, 4 Door Sport Utility RHD 4WD | 4 Cyl 2.1L Diesel, 4 Cyl 2.5L, 4 Cyl 2.5L Diesel, 6 Cyl 4.0L
View related parts
Jeep Cherokee Power Brake Booster
Part Number: 4856672AB
Product Specifications
- Other Name: Booster Power Brake
- Replaced by: 4856672AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997-2001 Jeep Cherokee | 2 Door Sport Utility 2WD, 2 Door Sport Utility 4WD, 4 Door Sport Utility 2WD, 4 Door Sport Utility 4WD, 4 Door Sport Utility RHD 2WD, 4 Door Sport Utility RHD 4WD, Classic 4 Door 2WD, Classic 4 Door 4WD, Limited 4 Door 2WD, Limited 4 Door 4WD, SE 2 Door 2WD, SE 2 Door 4WD, SE 4 Door 2WD, SE 4 Door 4WD, SE RHD 4 Door 2WD, SE RHD 4 Door 4WD, Sport 2 Door 2WD, Sport 2 Door 4WD, Sport 4 Door 2WD, Sport 4 Door 4WD | 4 Cyl 2.5L, 6 Cyl 4.0L
View related parts
Jeep Cherokee Booster-Abs Brakes
Part Number: 4761786
Product Specifications
- Other Name: Booster Package, Brake; Brake Booster
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1994-1996 Jeep Cherokee | 2 Door Sport Utility 2WD, 2 Door Sport Utility 4WD, 2 Door Sport Utility RHD 2WD, 2 Door Sport Utility RHD 4WD, 4 Door Sport Utility 2WD, 4 Door Sport Utility 4WD, 4 Door Sport Utility RHD 2WD, 4 Door Sport Utility RHD 4WD | 4 Cyl 2.5L, 4 Cyl 2.5L Diesel, 6 Cyl 4.0L

Jeep Cherokee Brake Booster

The Brake Booster is a component that can be found in Jeeps particularly in the Jeep Cherokee models to improve the braking capability of the automobile to minimize the force exerted by the driver. Located in between the brake pedal and the master cylinder, it can use either vacuum or hydraulic means in order to increase the amount of force that is placed on it while braking. CO2 boosters operate on exhaust pressure through the use of a vacuum while other boosters employed hydraulic pressure from the power steering system or electric pump. Jeep Cherokee models have used both the types mentioned above of Brake Boosters but with the vacuum boosters being much more prevalent due to their reliability. Nonetheless, hydraulic boosters are also attainable the same as electric boosters though these are suitable for particular uses. The main distinction lies in their operation: vacuum booster demand the ignition on while hydraulic systems do not. Altogether, the Brake Booster provides an appreciable boost to the overall performance of Jeep Cherokee vehicles by enhancing the ease at which braking can be done.

Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Jeep Cherokee Brake Booster at great affordable prices. Moreover, all genuine Jeep Cherokee Brake Booster come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.

Jeep Cherokee Brake Booster Parts Questions & Experts Answers

Power Brake Booster
4856672AB
Q: How to remove and replace a power brake booster unit on Jeep Cherokee?
A:
Depress the brake pedal several times with the engine off and make sure that there is no change in the pedal reserve distance. Depress the pedal and start the engine. If the pedal goes down slightly, operation is normal. Start the engine and turn it off after one or two minutes. Depress the brake pedal several times slowly. If the pedal goes down farther the first time but gradually rises after the second or third depression, the booster is air tight. Depress the brake pedal while the engine is running, then stop the engine with the pedal depressed. If there is no change in the pedal reserve travel after holding the pedal for 30 seconds, the booster is air tight. Power brake booster units should not be disassembled. They require special tools not normally found in most service stations or shops. They are fairly complex and because of their critical relationship to brake performance it is best to replace a defective booster unit with a new or rebuilt one. To remove the booster, first unbolt the Brake Master Cylinder from the booster and carefully pull it forward. Disconnect the hose leading from the engine to the booster. Be careful not to damage the hose when removing it from the booster fitting. Locate the pushrod connecting the booster to the brake pedal. This is accessible from the interior in front of the driver's seat. Disconnect the Brake Light Switch wire connector, remove the pushrod bolt nuts and pull out the bolt. Discard the bolt and nuts and obtain new ones of the same part number for installation. Remove the four nuts holding the brake booster to the firewall. You may need a light to see these, as they are up under the dash area. Slide the booster straight out from the firewall until the studs clear the holes and pull the booster, brackets and gaskets from the engine compartment area. When installing the booster pushrod to brake pedal bolt, insert it from the right side on manual transmission models and from the left side on automatic transmission models. In either case, the bolt must first pass through the brake pedal, THEN the pushrod. Installation procedures are basically the reverse of those for removal. Tighten the pushrod nuts, booster mounting nuts, and the master cylinder mounting nuts to the specified torque.
