Genuine Jeep Exhaust Manifold
Engine Exhaust Manifold- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
101 Exhaust Manifolds found

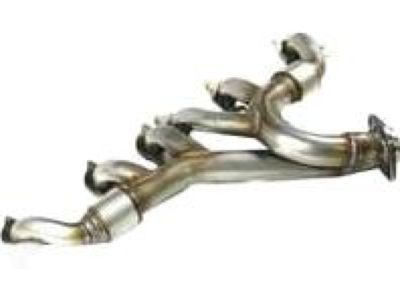

Jeep Exhaust Catalyst Converter
Part Number: 68432342AA$1714.20 MSRP: $3075.00You Save: $1360.80 (45%)Product Specifications- Other Name: Exhaust; Exhaust Manifold, Manifold With Converter
- Replaces: 68403179AA, 68367991AA, 68081821AA, 68081821AB
Product Specifications- Other Name: Manifold-Exhaust; Manifold
- Position: Passenger Side
Product Specifications- Other Name: Exhaust Manifold, Manifold
- Position: Driver Side
Product Specifications- Other Name: Manifold-Exhaust
- Replaced by: 68306844AA
Product Specifications- Other Name: Manifold-Exhaust; Manifold
- Position: Passenger Side
- Replaces: 5038536AB, 5038536AC
Product Specifications- Other Name: Manifold-Exhaust; Manifold
Product Specifications- Other Name: Manifold-Exhaust; Manifold
- Position: Passenger Side
Product Specifications- Other Name: Manifold-Exhaust; Manifold
- Replaces: 53013692AA
Product Specifications- Other Name: Manifold-Exhaust
- Replaced by: 53013692AB
Product Specifications- Other Name: Manifold-Exhaust
- Replaced by: 53013691AC
Jeep Exhaust Catalytic Converter
Part Number: 68367991AA$1714.20 MSRP: $3075.00You Save: $1360.80 (45%)Product Specifications- Other Name: Converter-Exhaust
- Replaced by: 68432342AA
Jeep Exhaust And Catalytic Converter
Part Number: 68081821AB$1714.20 MSRP: $3075.00You Save: $1360.80 (45%)Product Specifications- Other Name: Manifold Exhaust And Catalytic Converter Maniverter
- Replaced by: 68432342AA
Product Specifications- Other Name: Converter-Exhaust
- Replaced by: 68432342AA
Product Specifications- Other Name: Manifold-Exhaust; Exhaust Manifold, Manifold, Manifold Gasket
- Position: Passenger Side
Product Specifications- Other Name: Manifold-Exhaust
Product Specifications- Other Name: Manifold-Exhaust
- Replaced by: 5038536AD
Product Specifications- Other Name: Manifold-Exhaust
- Replaced by: 68505798AA
Product Specifications- Other Name: Exhaust Manifold, Manifold Kit; Exhaust Manifold, Manifold
- Position: Passenger Side
- Replaces: 68591572AA
Product Specifications- Other Name: Manifold-Exhaust; Manifold
- Replaces: 53013691AB
Product Specifications- Other Name: Manifold-Exhaust
| Page 1 of 6 |Next >
1-20 of 101 Results
Jeep Exhaust Manifold
Welcome to your ultimate destination for affordable OEM Jeep Exhaust Manifolds. Here at our website, we not only provide genuine Jeep Exhaust Manifolds at unbeatable prices, but also guarantee their quality with the manufacturer's warranty. Coupled with our dedicated customer service and swift delivery, we're confident you won't find a better deal anywhere else.
Jeep Exhaust Manifold Parts Questions & Experts Answers
- Q: How to remove and install the exhaust manifold in 3.7L V6 and 4.7L V8 engine on Jeep Grand Cherokee?A:Before proceeding to the removal of the exhaust manifold, one has to disconnect the negative terminal from the battery. The rear wheels should be blocked, the parking brake should be engaged, the front of the vehicle should be lifted and held on jackstands. Remove the nut by loosen the bolt at the exhaust manifold sided of the exhaust pipe. For the right side exhaust manifold on 4.7L VS models, release the drivebelt, then change the engine coolant, disconnect the air inlet duct and the air filter housing. Subsequently, the air conditioning compressor and the accumulator bracket must be being withdrawn; then, it is necessary to discharge the heater hoses at the engine and then to take out the starter. For either manifold on all models, remove the exhaust manifold heat shields, withdraw the exhaust manifold mounting bolts and then pull the manifold off the vehicle. Before bolting up, remove any gasket material from the surfaces and also check for manifolds warpage by use of a straight edge on the manifold. If needed, get your manifold to an auto machine shop for reconditioning of the surfaces. As earlier stated align the exhaust manifold in place with a fresh gasket and tighten the mounting bolts with your fingers. Successively tighten the mounting bolts from the center going outward in several sequences of tightening to the correct torque and do the same to the heat shield bolts. They should be reinstalled in reverse order that they were removed and if one is servicing a right-side exhaust manifold on a 4.7L engine then the cooling system should be refilled. Last join the engine and then search for the noise of exhaust between the manifold and cylinder head and between the manifold and exhaust pipe.
- Q: How to remove and install an exhaust manifold in 3.7L V6 engine on Jeep Liberty?A:To undo the exhaust manifold here are some steps; There are two bolts connecting it to the vehicle and the first step would be to have the ion cable disconnected from the battery for safety. engage the rear wheels, pull the parking brake, lift the front part of the car and fix it firmly with jackstands. Loosen the nuts on the exhaust pipe from the exhaust manifold, and then take off both the heat shields. Subsequently, disengage the bolts holding the mounting and then remove the manifold from the car. In installation, the adjoining surfaces should be free from gasket residue and the manifold should ideally be free from warpage and cracks which can be checked with a straight edge. The above fluctuations should be a sign that the manifold should be taken to an automotive machine shop for resurfacing if a feeler gauge of thickness more than 0.030-inch can fit between the straight edge and flange surface. Place the exhaust manifold back and bolt on a new gasket and just tighten the mount bolts by hand. Start to give the bolts on the center then radially in about half turn intervals to the desired torque and the same applies for the heat shield bolts. Last, reinstall the other part in a reverse manner, start the engine and inspect for exhaust leak around the manifold and cylinder head and also around the manifold and the exhaust pipe.
- Q: How to remove and install an exhaust manifold in 2.4L four cylinder engine on Jeep Wrangler?A:Lift the front of the vehicle, and support it with jackstands; remove the exhaust pipe from the exhaust manifold, and lower the vehicle. Pull off the air filter housing or bracket, and the exhaust manifold heat shield. Disconnect the electrical connector of the oxygen sensor and take off the sensor from the exhaust manifold. Remove the mounting bolts to remove the exhaust manifold and along with the old manifold gasket. Check the exhaust manifold for signs of cracks or any form of damage, if any then the exhaust manifold need to be replaced. Scratch the threads of the exhaust manifold bolts with a wire brush and inspect them in case there is any damage; change such bolts. All gasket materials should be scrapped off the mating surfaces and checked for wear and crack lines. Confirm exhaust manifold warpage using a straight edge and come gauge to the mating surface and where any warpage exceeds limits the exhaust manifold should be replaced or have a flat surface made for the head at an automotive machine shop. Replace the exhaust manifold gasket, and tighten the bolts by hand then again lift the front of the car using the jack and set it on the jackstands. The exhaust pipe bolts must only be hand tightened, while the exhaust manifold nuts must be tightened from the centre, in a sequence, to the specified torque value, then the exhaust pipe bolts. After that, perform the steps of the removal but in the reverse order.
