Genuine Jeep Patriot Fuel Tank
Gas Tank- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
27 Fuel Tanks found
| Page 1 of 2 |Next >
1-20 of 27 Results

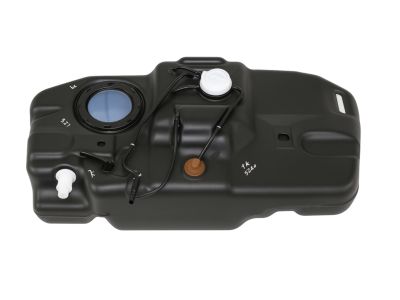

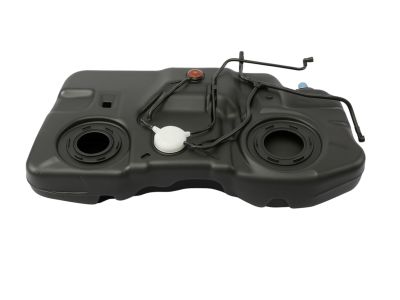

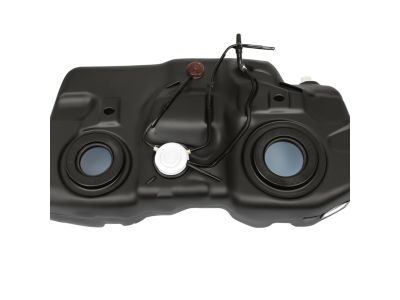

Jeep Patriot Fuel Tank
The Fuel Tank of Jeep Patriot vehicles play a functional role in the manufacturing of the jeep patriot vehicles to contain fuel for the engine as well as accommodate vital components such as electric fuel pump and the fuel gauge sender amongst others. Strengthened to provide durability, the Jeep Patriot Fuel Tank also has baffles inside so as to reduce movement of fuel and noise, and is part of the Evaporative Emission Control System (EVAP) to avert vapor loss. Diesel and petrol Jeep Patriot vehicles have used both metal and plastic Fuel Tanks in one way or another. Metal tanks, however, are made of steel or aluminum whereas the plastic ones can be made from a material called High Density Polyethylene (HDPE). Every kind has its strengths which give it a competitive edge but also has certain weaknesses, for instance, metal tanks tend to corrode and rust and plastic tanks may crack under certain conditions. There are also high-capacity fuel tanks that come with corrosion-free military-grade polymer material which come in extra strength that gives an additional advanced driving range than the metal tanks.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Jeep Patriot Fuel Tank at great affordable prices. Moreover, all genuine Jeep Patriot Fuel Tank come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Jeep Patriot Fuel Tank Parts Questions & Experts Answers
- Q: How to Remove the Fuel Tank on Jeep Patriot?A:The procedure for removing the fuel tank is much easier if the tank is empty. If it is not empty, you can use a siphon kit to remove the fuel. First, relieve the fuel system pressure. Then, disconnect the negative terminal of the battery. Next, raise the rear of the vehicle and support it with jackstands. Remove the Fuel Pump module and, on AWD models, the auxiliary module. If equipped, remove the fuel tank skid plate(s). Detach the parking brake cable mounting straps from the fuel tank strap studs. Remove the exhaust pipe and muffler from below the fuel tank. For AWD models, remove the rear differential support bracket fasteners and brackets, as well as the driveshaft and rear differential electronically controlled clutch. For all models, remove the left and right stay brackets between the rear crossmember and chassis, if equipped, and remove the splash shields from each side at the front of the tank, if equipped. Loosen the hose clamp and disconnect the fuel filler hose. Disconnect the fuel line and EVAP line quick-connect fittings located at the front of the fuel tank. Support the fuel tank with a transmission jack or floor jack, using a piece of plywood to protect the tank. Remove the fuel tank support strap bolts and carefully lower the fuel tank from the vehicle, ensuring no hoses or wiring harnesses are still attached. Installation is the reverse of removal, making sure to tighten the fuel tank strap bolts securely. Finally, start the engine and check for any leaks at the fuel line connectors that were disconnected.
