Genuine Ram 2500 Harmonic Balancer
Engine Harmonic Balancer- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
9 Harmonic Balancers found

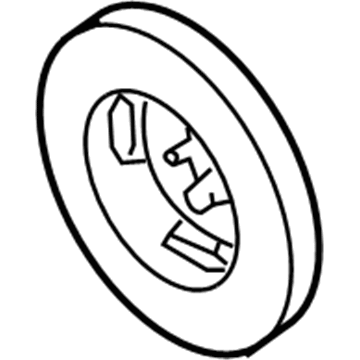

Ram 2500 Harmonic Balancer
The Harmonic Balancer in Ram 2500 vehicles plays the role of balancing the engine as well as absorptions of vibrations produced through the processes of combustion. This component is also known as the vibration damper and is made up of a metal hub which is fixed onto the crankshaft and a thick inertia ring that is surrounded by a rubber ring that flexes to counter act twist. Nevertheless, these rubber components wear over time due to the environmental factors that could result to crankshaft damage in the event that the balancer gives way. Harmonic Balancers vary depending on the Ram 2500 models with employing of the standard original equipment Harmonic Balancers for cars and some performance parts for it. They also compare standard balancers with factory engine specifications with performance harmonic balancers, which are suitable for modified engines as they offer protection at other increased levels of vibrations as well. Other performance options available are the traditional viscous and multi-piece types, all with the safety testing at higher RPMs and equipped with features such as the timing marks to mention but a few.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Ram 2500 Harmonic Balancer at great affordable prices. Moreover, all genuine Ram 2500 Harmonic Balancer come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Ram 2500 Harmonic Balancer Parts Questions & Experts Answers
- Q: How to remove and install Crankshaft Seal and Harmonic Balancer in hemi engine on Ram 2500?A:Take off the battery negative terminal cable. Remove the engine fan belt. Empty the coolant, remove the top radiator hose and extract the fan curtain. Unbolt the huge damper to crankshaft screw. Use a chain lock for protecting and immobilizing a large vibration damper during removal in case of damage. With a three-jaw puller, take out the vibration damper from the crankshaft gently without using a puller with jaws that grip on pulley's outer edge or letting it screw interfere with nose thread of crankshaft. Where cover is being left attached to engine block when seal is being removed, carefully remove seal with seal remover or big flat head screwdriver. Clean out groove and place new gasket lip inwardly; then drive home using a 2" diameter socket or plastic pipe as well as mallet until seated fully into block bore. Inspect condition of oil seal contact area on hub and renew hub if required for this purpose only. Re-installation includes applying oil lubricant onto sealing lips; push keyway at damper hub through Woodruff key on front end of crankshaft while re-mounting vibration absorber; use special application tool which pushes it onto shaft end; fit fixing bolt back by tightening to stated torque level afterwards do it in reverse order as described above putting things back together according to removal procedure but refill cooling system after that only.
