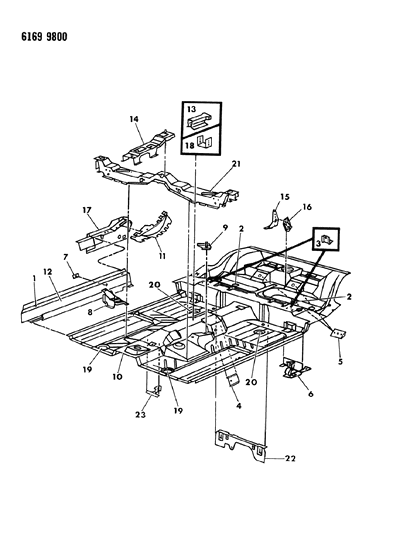

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS FLOOR PAN FRONT H BODY
1986 Dodge Lancer Floor Pan Front Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 1
    2574792
    PLUG, .75" Dia./19.5 mm
    • Require Quantity:
      2
  • 2
    4073475
    PLUG, 1.50" Dia./38.1 mm
    • Require Quantity:
      2
  • 3
    4206904
    RETAINER, Front Floor Pan Rear Seat Cushion
    • Require Quantity:
      2
  • 4
    4314259
    REINFORCEMENT, Front Floor Pan Front Seat Belt Inner Mounting
    • Require Quantity:
      2
  • 5
    4314260
    REINFORCEMENT, Front Floor Pan Rear Seat Belt Inner Mounting
    • Require Quantity:
      2
  • 6
    4314318
    BRACKET, Front Floor Pan Lift Hoisting, Right
    BRACKET, Front Floor Pan Lift Hoisting, Right
  • 6
    4314319
    BRACKET, Front Floor Pan Lift Hoisting, Right
    BRACKET, Front Floor Pan Lift Hoisting, Left
  • 7
    4314326
    REINFORCEMENT, Front Seat Belt Outer Mounting
    • Require Quantity:
      2
  • 8
    4314494
    REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Right
    REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Right
  • 8
    4314495
    REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Right
    REINFORCEMENT, Front Floor Pan Front Seat Rear Outer Mounting, Left
  • 9
    4314502
    REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Right
    REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Right
  • 9
    4314503
    REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Right
    REINFORCEMENT, Front Floor Pan Front Seat Rear Inner Mounting, Left
  • 10
    4337972
    PAN, Front Floor
  • 11
    4314866
    REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Right
    REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Right
  • 11
    4314867
    REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Right
    REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer Mounting, Left
  • 12
    3794032
    PANEL, Body Side Sill Inner, Right
    SEAL, Side Sill Inner Panel Drain Hole
    • Require Quantity:
      2
    • Package Quantity:
      1
  • 12
    4371114
    PANEL, Body Side Sill Inner, Right
    PANEL, Body Side Sill Inner, Right
  • 12
    4371115
    PANEL, Body Side Sill Inner, Right
    PANEL, Body Side Sill Inner, Left
  • 13
    4337945
    BRACKET, Rear Console To Floor Pan Mounting
  • 14
    4314937
    BRACKET, Front Console To Front Floor Pan
  • 15
    4337106
    BRACKET, Front Floor Pan Rear Seat Back Center Pivot Mounting, Right
  • 16
    4337161
    BRACKET, Front Floor Pan Rear Seat Back Center Pivot Mounting, Left
  • 17
    4371522
    EXTENSION, Sill Inner Rear, Right
    EXTENSION, Sill Inner Rear, Right
  • 17
    4371523
    EXTENSION, Sill Inner Rear, Right
    EXTENSION, Sill Inner Rear, Left
  • 18
    4337948
    BRACKET, Front Floor Pan Center Seat Mounting
  • 19
    5200456
    PLUG, 2.75" Dia./69.9 mm
    • Require Quantity:
      2
  • 21
    4325673
    CROSSMEMBER, Front Floor Pan Seat Track Mounting
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Lancer parts. Parts like Floor Pan Front are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
