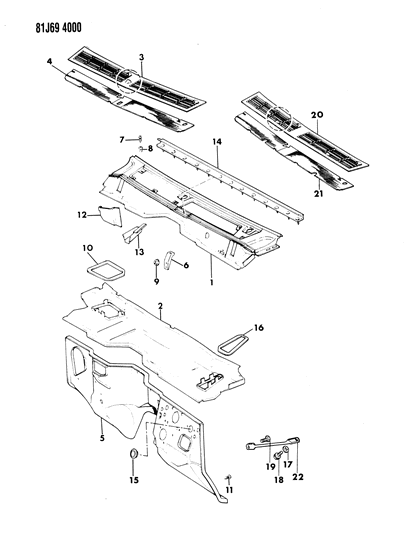

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS PANELS, COWL AND DASH XJ CHEROKEE, XJ WAGONEER, COMANCHE

1986 Jeep Cherokee Panels - Cowl & Dash Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
57000073
PANEL, Cowl Top
1984-85
1
57001352
PANEL, Cowl Top
- 1986

2
57000021
PANEL, Air Chamber
1984-85
2
57001647
PANEL, Air Chamber
- 1986
- Replaced By: 57001724
$255.00 $172.13
1
Add To Cart

3
55000928
GRILLE, Cowl Top Single Windshield Washer Nozzle in Center

4
55001282
SCREEN, Grille

5
57000031
PANEL, Dash
1984-85
5
57001289
PANEL, Dash
- 1986
$134.00 $90.52
1
Add To Cart

6
55004869
BRACKET, Extension

7
34201230
SCREW
- Require Quantity: 8

8
J4005242
NUT
- Require Quantity: 6

9
34201358
NUT
- Require Quantity: 2
- Package Quantity: 1
$13.90 $9.67
1
Add To Cart

10
55001008
SEAL, Heater Opening

11
J4007117
FASTENER
- Require Quantity: 4

12
55006544
SHIELD, Plenum Drain

13
55004918
SHIELD, Cowl Top

14
55002649
SEAL, Cowl Top

15
J4000334
PLUG

16
55001009
SEAL, Heater Opening

17
55005519
WASHER

18
11503451
BOLT

19
J0180125
BOLT

20
55009758
GRILLE, Cowl Top Two Windshield Washer Nozzles

21
55008833
SCREEN, Grille

22
55006271
BRACE

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Jeep Cherokee parts. Parts like Panels - Cowl & Dash are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.1L Diesel, 4 Cyl 2.5L, 6 Cyl 2.8L. Transmission: 4-Speed Automatic Transmission, 4-Speed Manual Transmission, 5-Speed Manual Transmission.
