2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

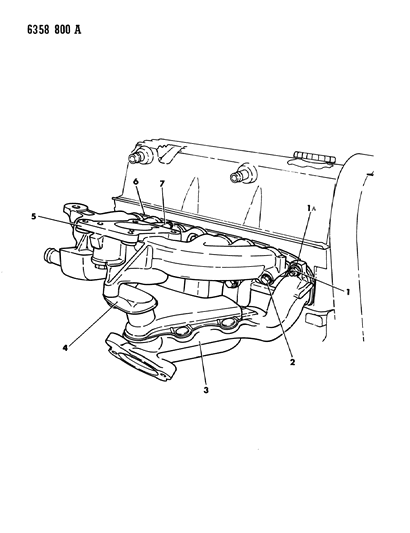

  • 1.ENGINE, 4 CYLINDER MANIFOLD, INTAKE AND EXHAUST 2.2L ENGINE
    1987 Dodge Dakota Manifolds - Intake & Exhaust Diagram 1

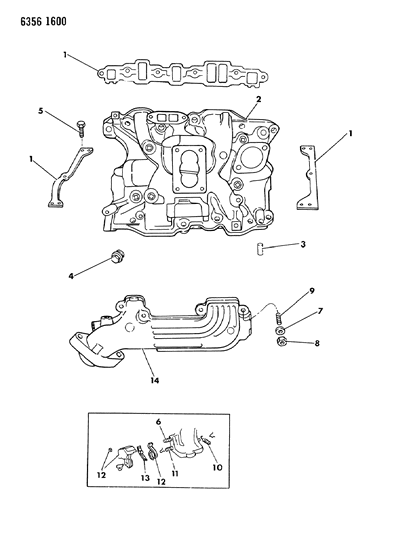

  • 2.ENGINE, 6 CYLINDER MANIFOLD, INTAKE AND EXHAUST 3.9L ENGINE
    1987 Dodge Dakota Manifolds - Intake & Exhaust Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 1
    6500679
    STUD, Exhaust Manifold to Head
    • Require Quantity:
      8
  • 2
    6500390
    BOLT, Intake Manifold to Head (M8 x 90)
    BOLT, Intake Manifold to Head (M8 x 65)
    • Require Quantity:
      6
  • 2
    6500391
    BOLT, Intake Manifold to Head (M8 x 90)
    BOLT, Intake Manifold to Head (M8 x 90)
    • Require Quantity:
      2
  • 2
    4343642
    MANIFOLD, Intake
  • 3
    4323830
    MANIFOLD, Exhaust
  • 5
    4323322
    MANIFOLD, Intake
  • 6
    9409667
    PIN, Heat Control Valve Stop
  • 7
    2121223
    WASHER, Exhaust Manifold
    • Require Quantity:
      6
  • 9
    6025004
    STUD, Exhaust Manifold End
    NUT and WASHER, Heater to Exhaust Manifold Stud
    • Require Quantity:
      2
  • 9
    6025991
    STUD, Exhaust Manifold End
    STUD, Exhaust Manifold End
    • Require Quantity:
      4
  • 9
    6028355
    STUD, Exhaust Manifold End
    Right (1-7/8 lgh)
    • Require Quantity:
      2
  • 9
    6029832
    STUD, Exhaust Manifold End
    SCREW, Exhaust Manifold
    • Require Quantity:
      2
  • 9
    6030622
    STUD, Exhaust Manifold End
    STUD, Exhaust Manifold, Right (2-15/16 lgh)
  • 9
    6033140
    STUD, Exhaust Manifold End
    Left
  • 9
    6033141
    STUD, Exhaust Manifold End
    Left (#10-16x1/2) (1986)
  • 9
    9421360
    STUD, Exhaust Manifold End
    Left (5/16x2-1/8) (1987)
  • 10
    2951626
    SPRING, Heat Control Valve Shaft Damper
  • 11
    2951627
    PIN, Heat Control Valve Shaft Damper
  • 13
    2946083
    STOP, Heat Control Valve
  • 14
    Dodge 118615
    118615
    MANIFOLD, Exhaust Right
    NUT, Exhaust Pipe Flange Bolt
    • Require Quantity:
      3
  • 14
    Dodge 4004001
    4004001
    MANIFOLD, Exhaust Right
    RETAINER, Exhaust Pipe to Manifold Bolt
    • Require Quantity:
      3
  • 14
    4323720
    MANIFOLD, Exhaust Right
    MANIFOLD, Exhaust Right
  • 14
    4343742
    MANIFOLD, Exhaust Right
    MANIFOLD, Exhaust Left
  • 3671447
    COVER, Intake Manifold EGR Valve Flange
  • 4173167
    GASKET, Intake Manifold EGR Valve Flange Cover
    GASKET, Intake Manifold EGR Valve Flange Cover
  • 6033064
    GASKET, Intake Manifold EGR Valve Flange Cover
    SCREW and WASHER, Intake Manifold (3/8-16x2")
    • Require Quantity:
      11
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge Dakota parts. Parts like Manifolds - Intake & Exhaust are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 6 Cyl 3.9L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
