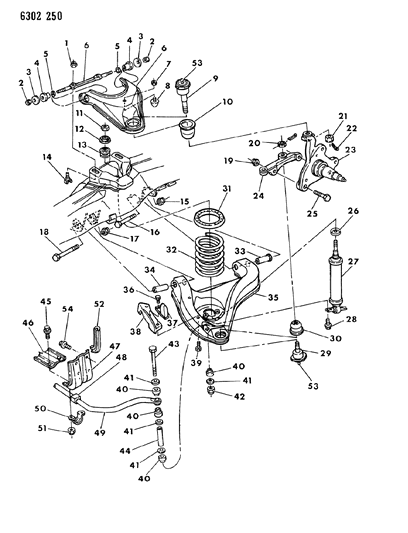

Diagram (1 of 1): FRT.SUSPENSION & DRIVE SUSPENSION, FRONT COIL AND SHOCKS UPPER & LWR. CONTROL ARMS W/SWAY BAR N1
1987 Dodge Dakota Suspension - Front Coil & Shocks With Upper and Lower Control Arm & Sway Bar Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    6031282
    NUT, Upr. Control Arm Pivot Mtg. Bolt
    • Require Quantity: 4
  • 2
    6031282
    NUT, Upr. Control Arm Pivot Bar
    • Require Quantity: 4
  • 6
    4322306
    ARM, Upper Control, Right
    • ARM, Upper Control, Right
  • 6
    4322307
    ARM, Upper Control, Right
    • ARM, Upper Control, Left
  • 10
    3722449
    SEAL, Upper Cont. Arm Ball Joint
    • Require Quantity: 2
  • 12
    3722001
    RETAINER, Upper Shock Mtg.
    • Require Quantity: 2
  • 13
    3722006
    BUSHING, Upper Shock Mtg.
    • Require Quantity: 2
  • 14
    3815473
    BOLT, Upper Arm Pivot Mtg.
    • Require Quantity: 4
  • 15
    Dodge 6100510
    6100510
    NUT, Lower Control Arm Rr. Mtg. Bolt
    • Require Quantity: 2
  • 16
    6100431
    BOLT, Lwr. Control Arm Rr. Mtg.
    • Require Quantity: 2
  • 18
    6101399
    BOLT, Lwr. Cont. Arm Frt. Mtg.
    • Require Quantity: 2
  • 23
    4164876
    KNUCKLE, Frt. Susp. Strg., Right
    • KNUCKLE, Frt. Susp. Strg., Right
  • 23
    4164877
    KNUCKLE, Frt. Susp. Strg., Right
    • KNUCKLE, Frt. Susp. Strg., Left
  • 24
    4322352
    ARM, Front Strg. Knuckle, Right
    • ARM, Front Strg. Knuckle, Right
  • 24
    4322353
    ARM, Front Strg. Knuckle, Right
    • ARM, Front Strg. Knuckle, Left
  • 26
    3722001
    RETAINER, Frt. Shock Lwr. Mtg.
    • Require Quantity: 2
  • 27
    4397902
    SHOCK ABSORBER, Frt. Susp - Std.
    • H.D.
    • Require Quantity: 2
  • 27
    4397905
    SHOCK ABSORBER, Frt. Susp - Std.
    • SHOCK ABSORBER, Frt. Susp - Std.
    • Require Quantity: 2
  • 28
    6025355
    BOLT, w/WASHER Frt Shock Lower
    • Require Quantity: 4
  • 30
    3402950
    SEAL, Lwr. Cont. Arm Ball Joint
    • Require Quantity: 2
  • 31
    4322401
    ISOLATOR, Frt. Susp Coil Spring
    • Require Quantity: 2
  • 32
    4322594
    SPRING, Coil Frt. Susp. w/2.2L Eng.
    • w/H.D. Susp.
    • Require Quantity: 2
  • 32
    4322596
    SPRING, Coil Frt. Susp. w/2.2L Eng.
    • w/H.D. Susp. (SPRING, Coil Frt. Susp. w/3.9L Eng.)
    • Require Quantity: 2
  • 32
    4404184
    SPRING, Coil Frt. Susp. w/2.2L Eng.
    • w/Std. Susp.
    • Require Quantity: 2
  • 32
    4404186
    SPRING, Coil Frt. Susp. w/2.2L Eng.
    • w/Std. Susp. (SPRING, Coil Frt. Susp. w/3.9L Eng.)
    • Require Quantity: 2
  • 35
    4322304
    ARM, Lower Control, Right
    • ARM, Lower Control, Right
  • 35
    4322305
    ARM, Lower Control, Right
    • ARM, Lower Control, Left
  • 37
    4322579
    BUMPER, Lower Control Arm
    • Require Quantity: 2
  • 43
    6033253
    BOLT, Sway Elim. to Cont. Arm
    • Require Quantity: 2
  • 44
    4322404
    SPACER, Sway Elim. To Cont. Arm
    • Require Quantity: 2
  • 46
    4404218
    CROSSMEMBER, Sway Elim. Brkt. to Frame
  • 47
    4404222
    BRACKET, Sway Elim. to Frame, Right
    • BRACKET, Sway Elim. to Frame, Right
  • 47
    4404223
    BRACKET, Sway Elim. to Frame, Right
    • BRACKET, Sway Elim. to Frame, Left
  • 48
    4322580
    BUSHING, Sway Elim. Shaft To Brkt.
    • Require Quantity: 2
  • 49
    4322360
    SHAFT, Sway Elim.
  • 51
    Dodge 6025020
    6025020
    NUT, w/WASHER Sway Elim. Shaft Bushing
    • Require Quantity: 4
  • 52
    4404196
    GUARD, Sway Elim. Bracket, Right
  • 54
    6032953
    BOLT, Sway Elim. Bracket to Frame
    • Require Quantity: 8
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge Dakota parts. Parts like Suspension - Front Coil & Shocks With Upper and Lower Control Arm & Sway Bar are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 6 Cyl 3.9L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
