3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

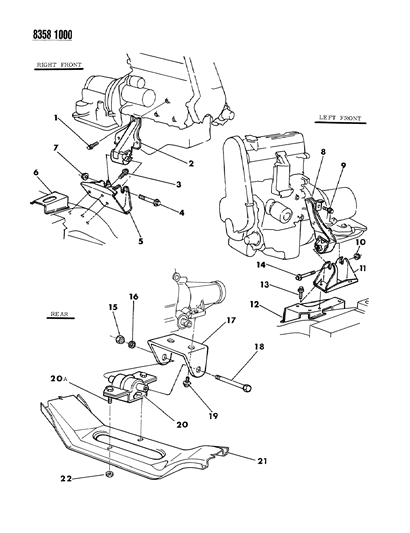

  • 1.ENGINE, 4 CYLINDER ENGINE MOUNTING 2.2L ENGINE
    1988 Dodge Dakota Engine Mounting Diagram 1
  • 2.ENGINE, 6 CYLINDER ENGINE MOUNTING (N1) 3.9L ENGINE
    1988 Dodge Dakota Engine Mounting Diagram 2
  • 3.ENGINE, 6 CYLINDER ENGINE MOUNTING (N5) 3.9L ENGINE
    1988 Dodge Dakota Engine Mounting Diagram 3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 1
    6101413
    SCREW, w/WASHER, Engine Right Insulator to Engine Block
    • Require Quantity:
      2
  • 2
    4348557
    BRACKET, w/Isolator, Engine to Axle, Left
  • 2
    4329664
    INSULATOR, Engine Front Support, Right
  • 3
    4446319
    INSULATOR, Engine Rear Support
  • 3
    6027088
    SCREW, w/WASHER
    • Require Quantity:
      3
  • 4
    6033089
    BOLT, Engine Rear Support Insulator
  • 4
    6033139
    SCREW, w/Washer, (3/8-16x1.12)
    • Require Quantity:
      3
  • 5
    4412158
    BRACKET, Engine Insulator to Crossmember Front, Right
  • 5
    4412153
    BRACKET, Engine Rear Support Insulator w/Manual Trans.
  • 7
    4412121
    BRACKET, Pinion Nose to Trans. and Engine Block Up to 5-15-89
    BRACKET, Pinion Nose to Trans. and Engine Block Up to 5-15-89
  • 7
    52004587
    BRACKET, Pinion Nose to Trans. and Engine Block Up to 5-15-89
    After 5-15-89
  • 7
    6025016
    NUT, w/WASHER, Engine Front Support Insulator Bolt
  • 8
    4329665
    INSULATOR, Engine Front Support, Left
  • 9
    6031205
    BOLT, w/WASHER, (1/2-13x5.50)
  • 9
    6501163
    SCREW, w/WASHER, Strut to Block, Left, w/Manual Trans.
    • Require Quantity:
      3
  • 10
    6025016
    NUT, w/WASHER, Engine Front Support Insulator Bolt
  • 11
    4412122
    ADAPTER, Pinion Nose Up to 5-15-89
    ADAPTER, Pinion Nose Up to 5-15-89
  • 11
    52004588
    ADAPTER, Pinion Nose Up to 5-15-89
    After 5-15-89
  • 11
    4329666
    BRACKET, Engine Insulator to Crossmember Front, Left
  • 11
    6027088
    SCREW and WASHER
    • Require Quantity:
      8
  • 12
    6030478
    NUT, Engine Mount Thru Bolt, Left
  • 12
    4412107
    STRUT, Frame Bracket to Crossmember, Left
  • 13
    6033138
    BOLT and WASHER, Engine Front Support Insulator
    • Require Quantity:
      2
  • 13
    6030478
    NUT, Engine Mount Thru Bolt, Right
  • 13
    6027088
    SCREW, w/WASHER
    • Require Quantity:
      2
  • 14
    6025016
    NUT and WASHER, Engine Front Support Insulator Bolt
    • Require Quantity:
      2
  • 15
    6033139
    SCREW and WASHER (3/8-16x1.12)
    • Require Quantity:
      6
  • 16
    4412120
    BRACKET, Disc. Housing to Trans. and Engine Block ,Right Up to 5-15-89
  • 16
    52004586
    BRACKET, Disc. Housing to Trans. and Engine Block ,Right Up to 5-15-89
  • 16
    4412140
    INSULATOR, Engine Front Support, Left
  • 16
    6501163
    INSULATOR, Engine Front Support, Left
  • 17
    4412153
    BRACKET, Engine Rear Support Insulator w/Manual Trans.
  • 17
    6033182
    SCREW and WASHER, Adapter Bracket to Engine Block
    • Require Quantity:
      6
  • 18
    6033089
    BOLT, Engine Rear Support Insulator
  • 19
    4412102
    BRACKET, Engine Front Support, Right
  • 19
    4412141
    BRACKET, Front Insulator to Block Adapter
    • Require Quantity:
      2
  • 20
    4446319
    INSULATOR, Engine Rear Support
  • 20
    6033139
    SCREW, w/Washer, (3/8-16x1.12)
    • Require Quantity:
      6
  • 21
    4412104
    BRACKET, w/Isolator Eng. to Axle, Right
  • 21
    4412140
    INSULATOR, Engine Front Support, Right
  • 22
    6031205
    BOLT, w/Washer, (1/2-13x5.50)
  • 24
    4412162
    BRACKET, Rear Mount Support w/Manual Trans.
  • 25
    6033383
    SCREW, w/Washer, Rear Engine Support Bracket to C/Member
    • Require Quantity:
      2
  • 28
    271885
    BOLT, (5/8-11x3-1/4-Hex)
    • Require Quantity:
      2
  • 31
    6032841
    WASHER, Rear Engine Mount Support
    • Require Quantity:
      2
  • 33
    152352
    NUT, w/Washer, Rear Engine Mount
    • Require Quantity:
      2
  • 6500157
    (m10x1.50-25 Lgh.)
  • 4343753
    BRACKET, Engine Mount, Right (Un Painted)
  • 4105790
    CLOSURE, Right Engine Mount Stone Guard
  • 4343499
    COVER, Right Engine Mount
  • 6501072
    SCREW, W/Washer, Engine Mount to Block (M10x1.50-85 Lgh.)
  • 6500816
    STUD, Block to Engine Mount, Right (M10x1.50-50 Lgh.)
  • 6501200
    STUD, Engine Mount and Spacer to Block (10-1.50x103 Lgh.)
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988 Dodge Dakota parts. Parts like Engine Mounting are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 6 Cyl 3.9L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission, Automatic Transmission.
