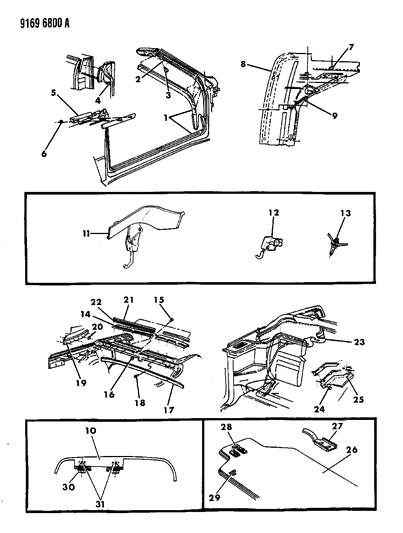

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS RAIL, HEADER AND LATCH ASSEMBLY J BODY 27

1989 Chrysler LeBaron GTC Rail, Header And Latch Assembly Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4475964
WEATHERSTRIP, Body Side Aperture Panel Door Opening, Right
WEATHERSTRIP, Body Side Aperture Panel Door Opening, Right
1
4475965
WEATHERSTRIP, Body Side Aperture Panel Door Opening, Right
- WEATHERSTRIP, Body Side Aperture Panel Door Opening, Left

2
4396314
RETAINER and SEAL, Right
RETAINER and SEAL, Right
2
4396315
RETAINER and SEAL, Right
- RETAINER and SEAL, Left

5
4381690
WEATHERSTRIP, Qtr. Window Belt, Right
WEATHERSTRIP, Qtr. Top Inner Belt, Right
5
4381691
WEATHERSTRIP, Qtr. Window Belt, Right
- WEATHERSTRIP, Qtr. Top Inner Belt, Left
5
4490424
WEATHERSTRIP, Qtr. Window Belt, Right
- WEATHERSTRIP, Qtr. Window Belt, Right
5
4490425
WEATHERSTRIP, Qtr. Window Belt, Right
- WEATHERSTRIP, Qtr. Window Belt, Left

6
6501140
NUT
- Replaced By: 6100515
$7.55 $6.76
1
Add To Cart

7
4490924
RAIL ASSEMBLY, f/Top Up To 4-17-89, Right
RAIL ASSEMBLY, f/Top Up To 4-17-89, Right
7
4490925
RAIL ASSEMBLY, f/Top Up To 4-17-89, Right
- RAIL ASSEMBLY, f/Top Up To 4-17-89, Left
7
4534448
RAIL ASSEMBLY, f/Top Up To 4-17-89, Right
- After 4-17-89, Right
7
4534449
RAIL ASSEMBLY, f/Top Up To 4-17-89, Right
- After 4-17-89, Left

8
4386408
HEADER and LATCH ASSEMBLY, Up To 4-17-89
HEADER and LATCH ASSEMBLY, Up To 4-17-89
8
4490926
HEADER and LATCH ASSEMBLY, Up To 4-17-89
- TOP ASSEMBLY, f/Top (Less Trim) Up To 4-17-89
8
4534447
HEADER and LATCH ASSEMBLY, Up To 4-17-89
- After 4-17-89
8
4534450
HEADER and LATCH ASSEMBLY, Up To 4-17-89
- After 4-17-89
8
5253141
HEADER and LATCH ASSEMBLY, Up To 4-17-89
- SEAL, Hard Top Header w/Strip

11
4386748
LATCH and BASE, Right
LATCH and BASE, Right
11
4386749
LATCH and BASE, Right
- LATCH and BASE, Left

12
4534402
HOOK
- Require Quantity: 2

13
4341707
PIN, Locating
- Require Quantity: 2

14
4490401
FILLER, Deck Lid Opening Upper Panel To Backlite

16
6501140
NUT and WASHER
- Require Quantity: 9
- Package Quantity: 1
- Replaced By: 6100515
$7.55 $6.76
1
Add To Cart

17
4422417
RETAINER and EXTENSION

18
6500354
SCREW and WASHER
- Require Quantity: 13
- Package Quantity: 1

19
4422420
EXTENSION, Body Aperture Belt Bar, Right
EXTENSION, Body Aperture Belt Bar, Right
19
4422421
EXTENSION, Body Aperture Belt Bar, Right
- EXTENSION, Body Aperture Belt Bar, Left

20
6501279
NUT and WASHER
- Require Quantity: 8
- Package Quantity: 1

21
4398378
MOULDING, Deck Upper Panel

22
4491547
RETAINER, Deck Opening Upper Boot

23
4507348
SLINGWELL
SLINGWELL
23
4507349
SLINGWELL
- SILENCER, Slingwell

24
6025002
NUT
- Require Quantity: 6
- Package Quantity: 1

25
6002972
CLIP, Slingwell
- Require Quantity: 2

26
6004156
BOOT, f/Top
CLIP, f/Top Boot To Deck Opening Upper Panel Mldg., Right
26
6004157
BOOT, f/Top
- CLIP, f/Top Boot To Deck Opening Upper Panel Mldg., Left
26
T959GA2
BOOT, f/Top
- Silver
26
T959GC7
BOOT, f/Top
- Blue
26
T959GL2
BOOT, f/Top
- Pewter Light
26
T959GL8
BOOT, f/Top
- Pewter Dark
26
T959GM4
BOOT, f/Top
- Red Claret
26
T959GM9
BOOT, f/Top
- Black Cherry
26
T959GR3
BOOT, f/Top
- Red Flash
26
T959GW7
BOOT, f/Top
- White
26
T959GX9
BOOT, f/Top
- Black

27
4328880
RETAINER, f/Top Boot Foundation, Right
RETAINER, f/Top To Quarter Trim Moulding
Require Quantity: 4
27
4454348
RETAINER, f/Top Boot Foundation, Right
- RETAINER, f/Top Boot Foundation, Right
27
4454349
RETAINER, f/Top Boot Foundation, Right
- RETAINER, f/Top Boot Foundation, Left

28
4422264
CATCH, f/Top Boot Front
- Require Quantity: 2

29
4422571
LOCATOR, f/Top Boot To Quarter Belt Moulding
- Require Quantity: 6

30
6101254
SCREW and WASHER
- Require Quantity: 8

31
6501533
INSERT, f/Top Boot For Foundation
- Require Quantity: 8
