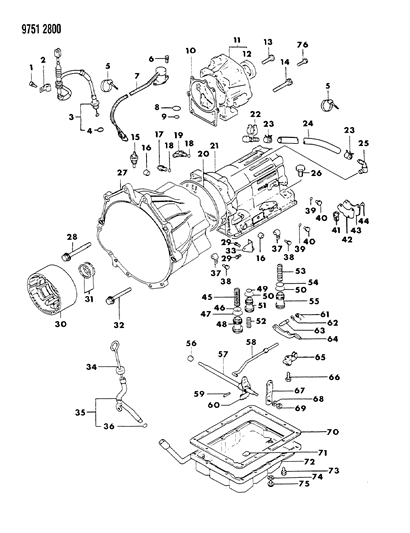

Diagram (1 of 1): TRANSMISSION, AUTO. CASE AND MISCELLANEOUS PARTS AUTOMATIC TRANSMISSION 27 4WD - RAIDER
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
3
MD609487
CABLE ASSEMBLY, Throttle
5
MD609325
CLAMP, Wiring Harness
7
MD609445
VALVE ASSEMBLY, Overdrive Solenoid
8
MD609081
O-RING, Solenoid, Outer
9
MD609080
O-RING, Solenoid, Inner
10
MD951484
GASKET, Extension Housing
13
MD609236BOLT, w/Washer (M10x1.5x40)
14
MD609237
BOLT, w/Washer (M10x1.5x76)
15
MD609333
SWITCH ASSEMBLY, Temperature
19
MD609210
ELBOW, Flared Type
20
MD951771
O-RING, T/M Case to Housing
21
MD609058
CASE ASSEMBLY, Automatic Trans.
25
MD609482
ADAPTER, Breather
27
MD609488
HOUSING ASSEMBLY, Converter
28
MD609320BOLT, Flange (10x1.5x118)
29
MD951757BOLT, w/Washer Bracket
30
MD951777
CASE ASSEMBLY, Overdrive
32
MD609319BOLT, Flange (12x1.75x97)
33
MD609426
BRACKET, Elbow Connector
34
MD609489
INDICATOR, Oil Level
35
MD609490
TUBE ASSEMBLY, Oil Indicator
MD951878
O-RING, Indicator Tube
40
MD951631PLUG, w/Head Straight Screw
41
MD609059
FILTER, Governor Valve
42
MD951330
GASKET, Oil Gallery Cover
44
MD951818SCREW, Countersunk (M6x1x12)
45
MD609329
SPRING, 2nd Brake Accumulator
48
MD609034
PISTON, 2nd Brake Accumulator
51
MD609186
PISTON, Direct Clutch Accumulator
52
MD609491
SPRING, Direct Clutch Accumulator No. 1
53
MD609187
SPRING, Forward Clutch Accumulator
55
MD951612
PISTON, Forward Clutch Accumulator
57
MD951763
SHAFT, Manual Valve Lever
58
MD609241
ROD ASSEMBLY, Parking
60
MD609493
LEVER ASSEMBLY, Manual Valve Detent
61
MD609240
SPRING, Torsion Parking Pawl
63
MD609239
PIN, Parking Pawl Pivot
67
MD609043
LEVER, Trans. Control
71
72
MD609274
PAN ASSEMBLY, Oil
74
MD951858
GASKET, Drain Plug
75
MD951857
PLUG, w/Head Straight Screw
76
MD609299
BOLT, Case, (M10x1.5x40)
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1989
Dodge Raider parts. Parts like Case & Miscellaneous Parts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.6L, 6 Cyl 3.0L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
