3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

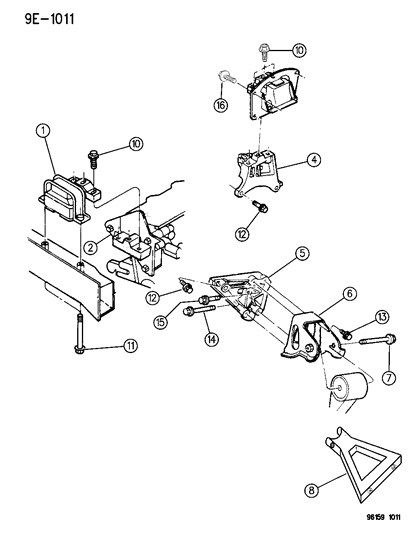

  • 1.ENGINE, 4 CYLINDER (2.0L) ENGINE MOUNTING 2.0L ENGINE SOHC ECB ECH ENGINE
    1996 Chrysler Sebring Engine Mounts Diagram 1
  • 2.ENGINE, 4 CYLINDER (2.4L) ENGINE MOUNTS 2.4L 4 CYL DOHC 16V MPI EDZ ENGINE JA-JX
    1996 Chrysler Sebring Engine Mounts Diagram 2
  • 3.ENGINE, 6 CYLINDER (2.5L) (6 CYLINDER) ENGINE MOUNTING 2.5L V-6 SOHC EEB ENGINE
    1996 Chrysler Sebring Engine Mounts Diagram 3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 2
    4593282
    BRACKET, Engine Mount -Rt-
    w/Mechanical Type Timing Belt Tightener
  • 2
    4663144
    BRACKET, Engine Mount -Rt-
    w/Hydraulic Type Timing Belt Tightener
  • 2
    Chrysler 6503836
    6503836
    SCREW/WASHER, Engine Mount Thru -Left/Rignt- M12 x 1.75 x 105.00
    • Require Quantity:
      2
  • 3 Chrysler 4573773
  • 3
    4668134
    SUPPORT ASSY, Engine Mount -Right-
    • Fitting Vehicle Options:
      JX
  • 3
    4668178
    SUPPORT ASSY, Engine Mount -Right-
    • Fitting Vehicle Options:
      PL
  • 4
    Chrysler MF303375
    MF303375
    BOLT/Washer, Engine Mounting (10x70)
  • 4
    4573778
    BRACKET, Engine Mount -Right-
    JA, JX Body
    • Fitting Vehicle Options:
      JA,JX
  • 4 Chrysler 4668170
    4668170
    BRACKET, Engine Mount -Right-
    PL Body
    • Fitting Vehicle Options:
      PL
    MSRP: $187.09
    $147.02
    1
    Add To Cart
  • 5
    4593249
    STRUT, Power Plant Bending -Front-
  • 7
    6503677
    SCREW/Washer, Strut Assy to Engine Support Module
  • 8
    4612126
    INSULATOR ASSY, Engine Mount -Front-
    w/Automatic Trans
  • 8
    4668506
    INSULATOR ASSY, Engine Mount -Front-
    w/Manual Trans
  • 10
    4573762
    BRACKET ASSY, Torque Reaction, Rear
    w/Automatic Trans
  • 10
    4593253
    BRACKET ASSY, Torque Reaction, Rear
    w/Manual Trans
  • 11
    Chrysler 6504210
    6504210
    SCREW/Washer, Mount to Bracket/Bracket to Rail M10 x 1.50 x 120.00
    • Require Quantity:
      2
  • 12
    6503442
    SCREW/Washer, Mount to Bracket
  • 12
    Chrysler 6101524
    6101524
    SCREW/Washer, PPB Strut to Block/Bracket Attach
    • Require Quantity:
      3
  • 14
    6500966
    RETAINER, Manual Trans Damper Bushing Upper
  • 18
    6503677
    SCREW/Washer, Mount to Bracket M10 x 1.50 x 95.00
  • 19
    Chrysler 6100343
    6100343
    SCREW/Washer, Torque React to Block
  • 21
    6100524
    SCREW/Washer, Torque React to Block
  • 6503840
    BOLT, Engine Mounting Support to Front Suspension Crossmember M10 x 1.50 x 40.00
    • Require Quantity:
      4
  • 6503840
    BOLT, Engine Support to Front Suspension Crossmember M10 x 1.50 x 40.00
    • Require Quantity:
      4
  • Chrysler 6504125
    6504125
    SCREW, Engine Mount Support to Radiator Creossmember -Front- M10 x 1.50 x 107.00
    • Require Quantity:
      2
  • Chrysler 6504228
    6504228
    SCREW, Mount to Bracket -Rt/Lt- M10 x 1.40 x 55.00
    • Require Quantity:
      6
  • Chrysler 6504228
    6504228
    SCREW, Mount to Bracket -Rt/Lt- M10 x 1.50 x 55.00
    • Require Quantity:
      6
  • Chrysler 6504210
    6504210
    SCREW, Mount to Bracket/Bracket to Rail M10 x 1.50 x 120.00
    • Require Quantity:
      2
  • 4593195
    SLEEVE, Engine Torque Mount Support Ring -Rear-
  • 4593249
    STRUT, PPB Front Left
  • Chrysler 4593248
    4593248
    STRUT, Power Plant Bending -Rear Lower
  • Chrysler 6504125
    6504125
    Screw, Engine Mounting Support to Radiator Crossmember -Front- ,10 x 1.50 x 107.00
    • Require Quantity:
      2
  • 4668135
    Support
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1996 Chrysler Sebring Convertible parts. Parts like Engine Mounts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.4L, 6 Cyl 2.5L. Transmission: 4-Speed Automatic Transmission.
