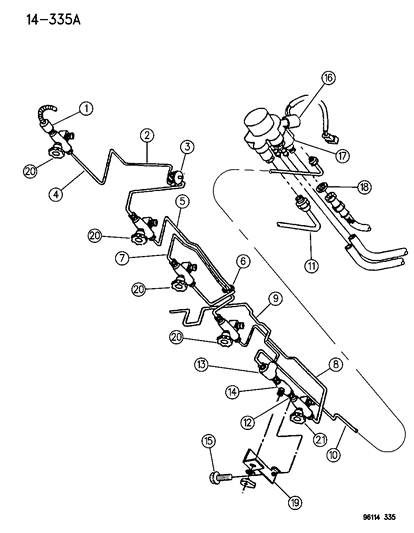

Diagram (1 of 1): FUEL FUEL TUBE ROUTING NATURAL GAS NS BODY

1996 Dodge Caravan Fuel Tube Routing Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4686189
TRANSDUCER ASSY, Fuel Tank Pressure and Temperature

2
4682872
TUBE, Cylinder 4 to Cylinder 5

3
4682993
CLIP, Single 1/4 Snail

5
4682870
TUBE, Cylinder 3 to Cylinder 4

6
52002044
CLIP, Double Tube

7
4682869
TUBE, Cylinder 2 to Cylinder 3

8
4682868
TUBE, Cylinder 1 to Cylinder 2

9
4682863
TUBE, Backcheck to Manual Shut Off Valve

10
4682874
TUBE, Manual Shut Off Valve to Regulator

11
4682875
TUBE ASSY, Regulator Relief

12
4682728
FITTING, Male Port Conn 3/8

13
52127827
FITTING, Male Run Tee 1/4

14
4682865
VALVE, Manual Shut Off

15
6100988
SCREW, w/Washer

16
4682862
REGULATOR ASSY, Fuel Pressure
TUBE, Filler to Backcheck
Fitting Vehicle Options: NS
16
4682945
REGULATOR ASSY, Fuel Pressure
- REGULATOR ASSY, Fuel Pressure

17
4682948
FITTING, Male Conn 3/8 1/4 NPT

19
4682866
BRACKET, Manual Shut Off Valve

20
4682936
VALVE, CNG Cylinder (for 4682831, 32, 33 Cylinders)

21
4682846
VALVE, CNG Cylinder Tapped (for 4682830 Cylinder)

4682684
FITTING, Low Pressure Solenoid

4682934
VALVE, Back Check (CNG)

4809032
VALVE, Low Pressure Solenoid Shut-Off
