2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

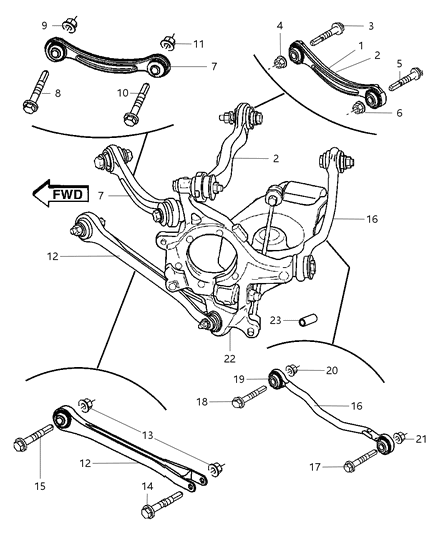

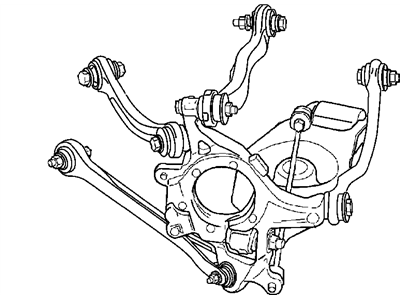

1.Rear Suspension Suspension,Rear Links,Knuckles,AWD
2.Rear Suspension Suspension,Rear Links,Knuckles,RWD

Sort by:

Ref No.

Part No. & Part Description

Price

Part No. &
Part Description

1
5180564AA

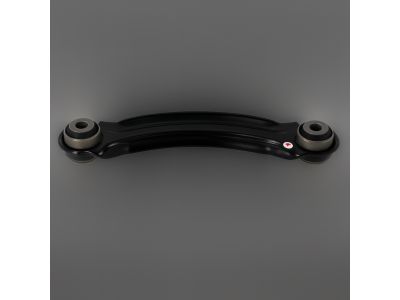

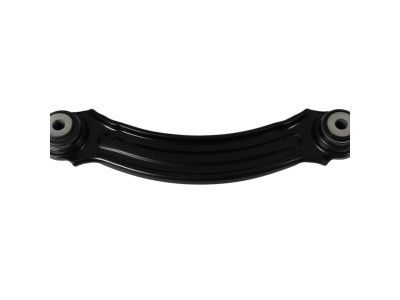

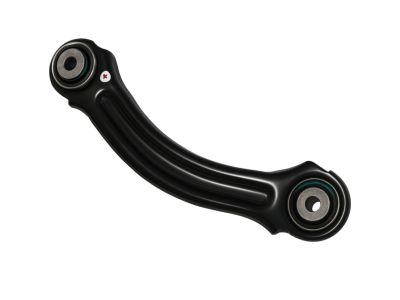

LINK ASSEMBLY Camber
Right [EE0], [SDG], [BR3]
Right [EE0], [SDG], [BRD]
Right [EG0], [BR5], With [SDC or SDG]
Right [EG0], [DGV], [SDC], [BR3]
Right [EG0], [DGV], [SDG], [BR3]
Right [ES0], [SDX], [BR4]
Right [EZ0], [BR5], With [SDC or SDG]
Right [SDC], [BR5]
Right [SDD], [BR5]
Replaced By:
68184782AB
MSRP: $193.00
$128.57
1
Add To Cart
1
5180565AA
LINK ASSEMBLY Camber
Left [EE0], [SDG], [BR3]
Left [EE0], [SDG], [BRD]
Left [EG0], [BR5], With [SDC or SDG]
Left [EG0], [DGV], [SDC], [BR3]
Left [EG0], [DGV], [SDG], [BR3]
Left [ES0], [SDX], [BR4]
Left [EZ0], [BR5], With [SDC or SDG]
Left [SDC], [BR5]
Left [SDD], [BR5]
- Replaced By:
  68184783AB
MSRP: $171.00
$85.53
1
Add To Cart

2
5180566AA
CAMBER LINK
Right Repair - Plus 1mm
Fitting Vehicle Options:
48 - SEDAN TYPE #8, C - CHRYSLER, F - BRAND AWD
Replaced By:
68241572AB
MSRP: $182.00
$91.40
1
Add To Cart
2
5180567AA
CAMBER LINK
Left Repair - Plus 1mm
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, C - CHRYSLER, F - BRAND AWD
- Replaced By:
  68241573AB
MSRP: $182.00
$91.40
1
Add To Cart
2
5180568AA
CAMBER LINK
Right Repair - Minus 1mm
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, C - CHRYSLER, F - BRAND AWD
- Replaced By:
  68306530AA
MSRP: $248.00
$165.46
1
Add To Cart
2
5180569AA
CAMBER LINK
Left Repair - Minus 1mm
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, C - CHRYSLER, F - BRAND AWD
- Replaced By:
  68306531AA
MSRP: $248.00
$165.46
1
Add To Cart
2
68046588AA
CAMBER LINK
Right [EZH]
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, EZH - 8 Cyl 5.7L HEMI MDS VCT, F - BRAND AWD
2
68046589AA
CAMBER LINK
Left [EZH]
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, EZH - 8 Cyl 5.7L HEMI MDS VCT, F - BRAND AWD
- Replaced By:
  68184783AB
MSRP: $171.00
$85.53
1
Add To Cart

3
6507097AA
BOLT AND WASHER Hex Head M12X1.75X70.00
- Require Quantity:
  2
- Package Quantity:
  1
MSRP: $7.80
$5.37
1
Add To Cart

4
6502835
NUT Hex Flange Lock M12x1.75
- Require Quantity:
  2
- Package Quantity:
  1
- Replaced By:
  6512602AA
MSRP: $2.30
$1.56
1
Add To Cart

5
6507099AA
BOLT AND WASHER Hex Head M12x1.75x85.00
- Require Quantity:
  2
- Package Quantity:
  1
MSRP: $8.30
$5.72
1
Add To Cart

6
6507108AA
NUT AND WASHER Hex M12x1.75
- Require Quantity:
  2
- Package Quantity:
  1
MSRP: $5.75
$3.92
1
Add To Cart

7
4782745AB
LINK ASSEMBLY Tension
[EZH]
Fitting Vehicle Options:
48 - SEDAN TYPE #8, EZH - 8 Cyl 5.7L HEMI MDS VCT, F - BRAND AWD
Require Quantity:
2
Package Quantity:
1
Replaced By:
68045329AB
MSRP: $357.00
$237.02
1
Add To Cart
7
68045329AA
LINK ASSEMBLY Tension
[EG0], [BR5], With [SDC or SDG]
[EZ0], [BR5], With [SDC or SDG]
[SDD]
[SDX]
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, C - CHRYSLER, EG0, ES0, EZ0, F - BRAND AWD, M - MEDIUM, P - PREMIUM, S - SPORT
- Require Quantity:
  2
- Package Quantity:
  1
- Replaced By:
  68045329AB
MSRP: $357.00
$237.02
1
Add To Cart
7
68045330AA
LINK ASSEMBLY Tension
[SDC], [BR3]
[SDC], [BR5]
[SDG], [BR3]
[SDG], [BRD]
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, C - CHRYSLER, DGV - 4-Speed Automatic Transmission 42RLE, EE0, EG0, EZ0
- Require Quantity:
  2
- Package Quantity:
  1
- Replaced By:
  68045330AC
MSRP: $464.00
$308.57
1
Add To Cart

8
6507097AA
BOLT AND WASHER Hex Head M12X1.75X70.00
- Require Quantity:
  2
- Package Quantity:
  1
MSRP: $7.80
$5.37
1
Add To Cart

9
6502835
NUT Hex Flange Lock M12x1.75
- Require Quantity:
  2
- Package Quantity:
  1
- Replaced By:
  6512602AA
MSRP: $2.30
$1.56
1
Add To Cart

10
6507099AA
BOLT AND WASHER Hex Head M12x1.75x85.00
- Require Quantity:
  2
- Package Quantity:
  1
MSRP: $8.30
$5.72
1
Add To Cart

11
6507108AA
NUT AND WASHER Hex M12x1.75
- Require Quantity:
  2
- Package Quantity:
  1
MSRP: $5.75
$3.92
1
Add To Cart

12
5180480AC
LINK ASSEMBLY Compression
[EG0], [BR5], With [SDC or SDG]
[EZ0], [BR5], With [SDC or SDG]
[SDD], [BR5], [DLC]
[SDX], [BR4]
Fitting Vehicle Options:
48 - SEDAN TYPE #8, C - CHRYSLER, EG0, ES0, EZ0, F - BRAND AWD, M - MEDIUM, P - PREMIUM, S - SPORT
Require Quantity:
2
Package Quantity:
1
Replaced By:
68184784AA
MSRP: $159.00
$105.01
1
Add To Cart
12
68045176AB
LINK ASSEMBLY Compression
[EE0], [SDG], [BR3]
[EE0], [SDG], [BRD]
[EZ0], [SDC], [BR5]
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, C - CHRYSLER, EE0, EZ0
- Require Quantity:
  2
- Package Quantity:
  1
- Replaced By:
  68184781AA
MSRP: $150.00
$100.06
1
Add To Cart

13
6502835
NUT Hex Flange Lock M12x1.75
- Require Quantity:
  2
- Package Quantity:
  1
- Replaced By:
  6512602AA
MSRP: $2.30
$1.56
1
Add To Cart

14
6507098AA
BOLT AND WASHER Hex Head M12x1.75x75.00
- Require Quantity:
  2
- Package Quantity:
  1
MSRP: $7.60
$5.16
1
Add To Cart

15
6507097AA
BOLT AND WASHER Hex Head M12X1.75X70.00
- Require Quantity:
  2
- Package Quantity:
  1
MSRP: $7.80
$5.37
1
Add To Cart

16
68051638AA
TOE LINK
Right
Fitting Vehicle Options:
48 - SEDAN TYPE #8, C - CHRYSLER, DGV - 4-Speed Automatic Transmission 42RLE, EE0, EG0, ES0, EZ0, F - BRAND AWD, M - MEDIUM, P - PREMIUM, S - SPORT
Replaced By:
68051638AB
MSRP: $283.00
$188.94
1
Add To Cart
16
68051639AA
TOE LINK
Left
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, C - CHRYSLER, EE0, EG0, ES0, EZ0, F - BRAND AWD, M - MEDIUM, P - PREMIUM, S - SPORT
- Replaced By:
  68051639AB
MSRP: $253.00
$168.82
1
Add To Cart

17
6507107AA
BOLT AND WASHER Hex Head M12x1.75x75.00
- Require Quantity:
  2
- Package Quantity:
  1
MSRP: $9.90
$6.70
1
Add To Cart

18
6507538AA
BOLT AND WASHER Hex Head M12x1.75x123.00
- Require Quantity:
  2
- Package Quantity:
  1
MSRP: $25.95
$17.59
1
Add To Cart

19
6507539AA
WASHER Flat
- Require Quantity:
  2
- Package Quantity:
  1
MSRP: $5.25
$3.52
1
Add To Cart

20
6507207AA
NUT Hex Flange Lock M12x1.75
- Require Quantity:
  2
- Package Quantity:
  1
- Replaced By:
  68374016AA
MSRP: $2.90
$1.96
1
Add To Cart

21
6502835
NUT Hex Flange Lock M12x1.75
- Require Quantity:
  2
- Package Quantity:
  1
- Replaced By:
  6512602AA
MSRP: $2.30
$1.56
1
Add To Cart

22
4782586AD

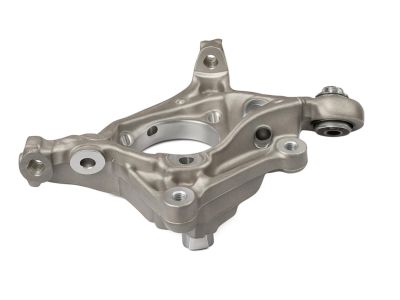

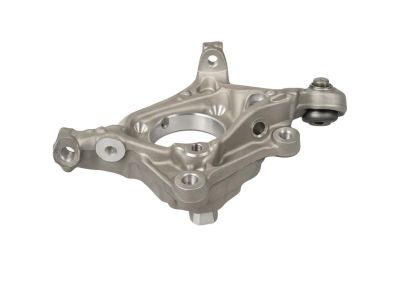

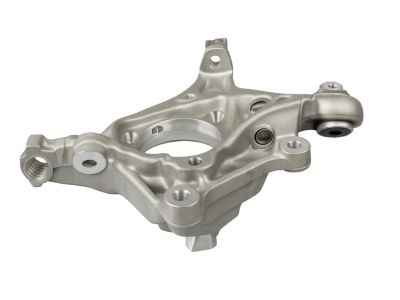

KNUCKLE Rear
Right [EE0], [SDG], [BR3]
Right [EE0], [SDG], [BRD]
Right [EG0], [DGV], [SDC], [BR3]
Right [EG0], [DGV], [SDG], [BR3]
Right [EZ0], [SDC], [BR5]
Right [EZ0], [SDD], [BR5]
Right [EZ0], [SDD], [BR5], [DLC]
Fitting Vehicle Options:
48 - SEDAN TYPE #8, C - CHRYSLER, DGV - 4-Speed Automatic Transmission 42RLE, EE0, EG0, EZ0
Replaced By:
4782586AF
MSRP: $854.00
$562.10
1
Add To Cart
22
4782587AD
KNUCKLE Rear
Left [EE0], [SDG], [BR3]
Left [EE0], [SDG], [BRD]
Left [EG0], [DGV], [SDC], [BR3]
Left [EG0], [DGV], [SDG], [BR3]
Left [EZ0], [SDC], [BR5]
Left [EZ0], [SDD], [BR5]
Left [EZ0], [SDD], [BR5], [DLC]
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, C - CHRYSLER, DGV - 4-Speed Automatic Transmission 42RLE, EE0, EG0, EZ0
- Replaced By:
  4782587AF
MSRP: $871.00
$573.10
1
Add To Cart
22
4782928AD
KNUCKLE Rear
Right [EG0]
Right [EZ0]
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, EG0, EZ0, F - BRAND AWD, M - MEDIUM, P - PREMIUM, S - SPORT
- Replaced By:
  4782928AF
22
4782929AD
KNUCKLE Rear
Left [EG0]
Left [EZ0]
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, EG0, EZ0, F - BRAND AWD, M - MEDIUM, P - PREMIUM, S - SPORT
- Replaced By:
  4782929AF
22
4854458AD
KNUCKLE Rear
Right [ES0], [SDX], [BR4]
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, C - CHRYSLER, ES0
- Replaced By:
  68248386AA
MSRP: $670.00
$458.28
1
Add To Cart
22
4854459AD
KNUCKLE Rear
Left [ES0], [SDX], [BR4]
- Fitting Vehicle Options:
  48 - SEDAN TYPE #8, C - CHRYSLER, ES0
- Replaced By:
  68248387AA
MSRP: $872.00
$596.22
1
Add To Cart

23

4743263AA
SLEEVE
MSRP: $17.40
$11.75
1
Add To Cart
