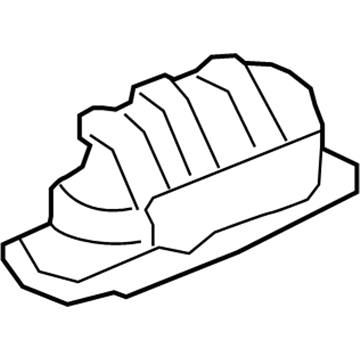

Chrysler 5147130AE INSULAT0R Pkg

For the rear mount, raise the vehicle and remove the engine splash shield and downstream oxygen sensor. Support the engine. Remove the rear mount bracket-to-subframe bolts and the mount through-bolt. Remove the mount by twisting it slightly. Install the new mount into the bracket and tighten the through-bolt by hand. Align the mount to the subframe, install and tighten the bolts to the specified torque, and finish by tightening the through bolt. Installation follows the reverse order.

The mounts should be inspected for cracks, hardened rubber, or separation from the metal backing. Additionally, any relative movement between the mount plates and the engine or frame should be checked.

For the rear mount, access the top rear of the engine compartment to remove the mounting bracket-to-block bolts. Then, raise the vehicle and take out the mount assembly. Replace it with a new one and secure it to the subframe and engine block with the appropriate torque.
