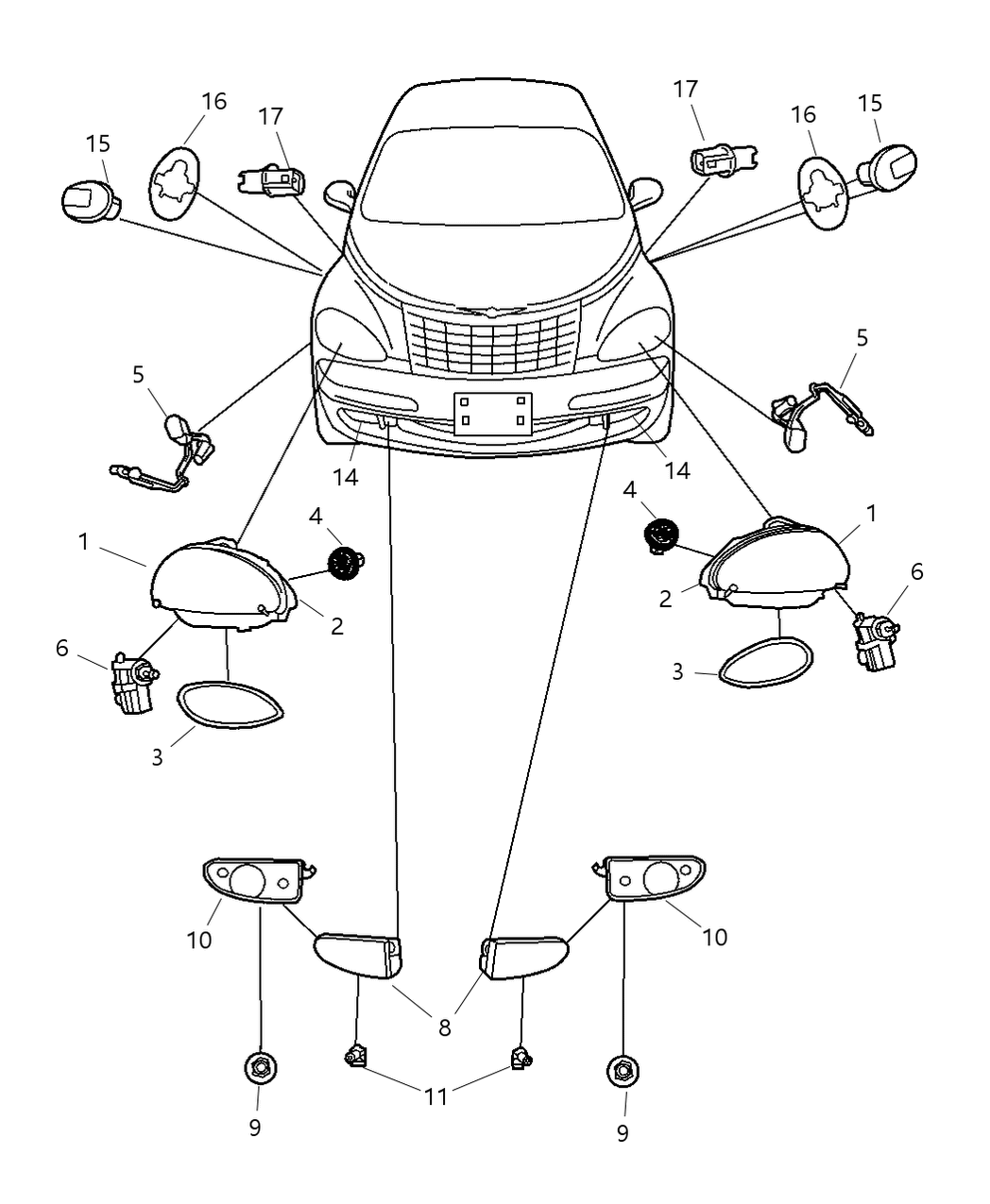

Mopar 5288764AF Module Headlamp

Loosen the front wheel lug nuts, then raise the front of the vehicle and support it securely on jackstands. Remove the front wheel and the fender well splash shield, followed by the radiator grille. Take out the three bumper cover-to-fender fasteners on the side being worked on to create space for the headlight housing removal, and it may also be necessary to remove one or more bumper cover-to-radiator crossmember bolts. In the fenderwell, remove the retaining nuts that hold the headlight housing in place, detach the housing, and withdraw it from the vehicle. Disconnect the headlight and park/turn signal bulb electrical connectors. Installation is the reverse of removal, and be sure to check headlight adjustment afterward.
