Genuine Dodge Magnum Cylinder Head
Head- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
18 Cylinder Heads found

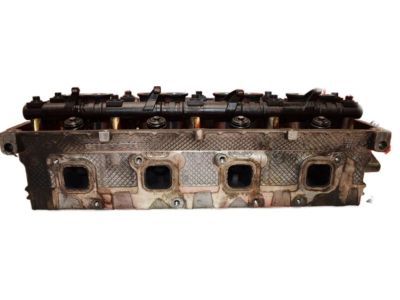

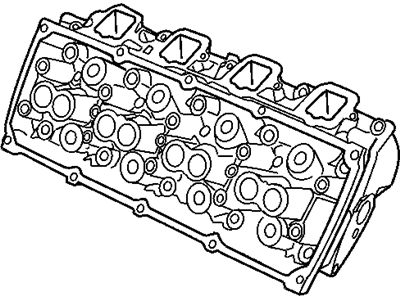

Dodge Magnum Cylinder Head
Dodge Magnum Cylinder Head serves as the metal rooftop of each combustion chamber. It allows for air, fuel, and exhaust flow while sealing compression so the engine can make power efficiently. The Cylinder Head, which is made of strong alloy material, has spark plugs, coolant galleries, and oil passages for heat control, lubrication, and ignition. The Dodge Magnum's early side-valve variations had a flat Cylinder Head that merely covered the cylinders and held the plugs. But later overhead-valve and overhead-cam variations adopted a taller, sculpted Cylinder Head carrying intake and exhaust runners plus valvetrain parts for smoother breathing and higher performance. The coolant passages within the casting of every modern Dodge Magnum keep temperatures even. Even the Cylinder Head is pretty tough. Still, every Dodge Magnum is at risk from three things: water ingestion that hydrolocks the pistons, temperature swings that warp and crack the metal, and oil starvation that scuffs its surfaces. Frequently, damage occurs as a result of the head gasket losing its elasticity as coolant or oil escapes, leading to costly damage.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Dodge Magnum Cylinder Head at great affordable prices. Moreover, all genuine Dodge Magnum Cylinder Head come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Dodge Magnum Cylinder Head Parts Questions & Experts Answers
- Q: How to remove the cylinder heads in V8 engine on Dodge Magnum?A:Depressurize the fuel system and remove the battery to take off the cylinder heads. Empty the cooling system and get rid of Intake Manifold, Exhaust Manifold(s), valve covers, Rocker Arms and push rods. Unfasten head bolts according to a particular manner and unscrew them manually. Detach heads from an engine by using a wooden block or hitting wood with a hammer.The heads should be protected from damaging the gasket sealing surfaces by putting them on blocks of wood.When installing, ensure that mating faces are clean and clear of any dirt particles or debris. Gasket scraper can be used to clean up these faces as well as lacquer thinner or acetone. Finally check for damage, use emery cloth or machine if necessary; chase threads in head bolt holes and clean bolt threads too. Position new gaskets properly in block dowels. Carefully lay heads on top of block without disturbing gaskets.Coat head bolt threads with engine oil before inserting bolts back into their original positions; tighten in recommended sequence following torque specification in several steps.Complete remaining installation steps in reverse order.Finally, start the engine, check for proper operation and leaks, add coolant/ change oil plus filler.
