How to Remove a Cooling Fan Assembly?

Disconnect the cable from the negative terminal of the battery. Set the parking brake, raise the front of the vehicle and support it securely on jackstands. Drain the cooling system to a level that is just below the upper radiator hose. Remove the air intake duct. Remove the close-out panel between the grille and the radiator support. Remove the hood latch. Remove the air dam lower fasteners and release the air dam from the fan shroud. Remove the upper radiator hose support bracket fastener, then disconnect the hose and position it out of the way. Remove the radiator support fasteners and remove the panel. Disconnect the cooling fan electrical connectors and harness retaining pins. Move the wiring harness away from the fan shroud. Release the upper clips and fasteners holding the fan assembly to the radiator. Remove the cooling fan assembly by pulling it straight up and out of the engine compartment. Installation is the reverse of removal. Place the fan assembly back into the retaining clips for the side and bottom. Refill the cooling system.

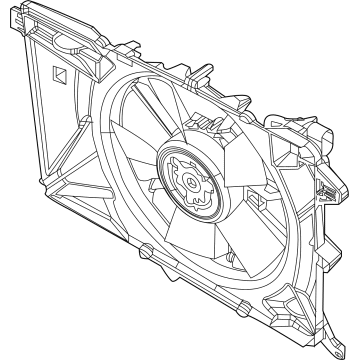

Genuine Jeep Compass Engine Cooling Fan

Radiator Fan

Enter your vehicle info to find more parts and verify fitment

Select Vehicle by VIN
Select Vehicle by Model

Select by VIN

Enter your VIN for the most accurate results.

Select by Model

-- Select Make --

-- Select Model --

-- Select Year --

9 Engine Cooling Fans found

View related parts
Jeep Compass Radiator Cooling
Part Number: 68249185AD
- Other Name: Fan Assembly, Fan Module
- Replaces: 68249185AC, 68249185AA, 68249185AB
$284.48 MSRP: $424.00
You Save: $139.52 (33%)

Add to Cart
More Info
Fits the following Vehicles:
2018-2021 Jeep Compass | 80th Spec. Edition AWD, 80th Spec. Edition FWD, Latitude AWD, Latitude FWD, Limited AWD, Limited FWD, Sport AWD, Sport FWD, Trailhawk AWD | 4 Cyl 2.4L
Less Info
View related parts
Jeep Compass Fan-Cooling
Part Number: 68031871AA
- Other Name: Fan Cooling; Fan Assembly, Fan Blade
- Replaces: 5104787AA
$42.50 MSRP: $63.30
You Save: $20.80 (33%)

Add to Cart
More Info
Fits the following Vehicles:
2009-2017 Jeep Compass | Base 4WD, Base FWD, Latitude 4WD, Latitude FWD, Limited 4WD, Limited FWD, Sport 4WD, Sport FWD | 4 Cyl 2.0L, 4 Cyl 2.4L
2007 Jeep Compass | Base 4WD, Base FWD, Limited 4WD, Limited FWD | 4 Cyl 2.4L
Less Info
View related parts
Jeep Compass FANMODULE-Radiator Cooling
Part Number: 68249185AB
- Replaced by: 68249185AD
$209.68 MSRP: $424.00
You Save: $214.32 (51%)

Add to Cart
More Info
Fits the following Vehicles:
2018 Jeep Compass | Latitude AWD, Latitude FWD, Limited AWD, Limited FWD, Sport AWD, Sport FWD, Trailhawk AWD | 4 Cyl 2.4L
Less Info
View related parts
Jeep Compass FANMODULE-Radiator Cooling
Part Number: 68249185AC
- Replaced by: 68249185AD
$209.68 MSRP: $424.00
You Save: $214.32 (51%)

Add to Cart
More Info
Fits the following Vehicles:
2019 Jeep Compass | Latitude AWD, Latitude FWD, Limited AWD, Limited FWD, Sport AWD, Sport FWD, Trailhawk AWD | 4 Cyl 2.4L
Less Info
View related parts
Jeep Compass Fan ASSY.-Radiator Cooling
Part Number: 68249186AB
- Replaced by: 68249186AC
$246.82 MSRP: $361.00
You Save: $114.18 (32%)

Add to Cart
More Info
Fits the following Vehicles:
2018 Jeep Compass | Latitude AWD, Sport AWD, Sport FWD
Less Info
View related parts
Jeep Compass Fan ASSY.-Radiator Cooling
Part Number: 68249186AC
- Replaces: 68249186AB
$246.82 MSRP: $361.00
You Save: $114.18 (32%)

Add to Cart
More Info
Fits the following Vehicles:
2018-2020 Jeep Compass | Latitude AWD, Sport AWD, Sport FWD
Less Info
View related parts
Jeep Compass Fan-Radiator Cooling
Part Number: 5191253AA
- Other Name: Fan Module Radiator Cooling
- Replaced by: 68004051AA
$162.57 MSRP: $235.00
You Save: $72.43 (31%)

Add to Cart
More Info
Fits the following Vehicles:
2007 Jeep Compass | Base 4WD, Base FWD, Limited 4WD, Limited FWD | 4 Cyl 2.4L
Less Info
View related parts
Jeep Compass Fan MODUL-Radiator Cooling
Part Number: 68004051AA
- Other Name: Fan Module Radiator Cooling; Fan Assembly, Fan Module, Fan Motor Assembly
- Replaces: 5191253AA
More Info
Fits the following Vehicles:
2007 Jeep Compass | Base 4WD, Base FWD, Limited 4WD, Limited FWD | 4 Cyl 2.4L
Less Info
View related parts
Jeep Compass Fan MODUL-Radiator Cooling
Part Number: 68002661AA
- Other Name: Fan Module Radiator Cooling; Fan Assembly, Fan Module, Fan Motor Assembly
- Replaces: 5191289AA
More Info
Fits the following Vehicles:
2007-2008 Jeep Compass | Base 4WD, Base FWD, Limited 4WD, Limited FWD | 4 Cyl 2.4L
Less Info

Jeep Compass Engine Cooling Fan Parts Questions & Answers

Fan-Cooling
68031871AA
Q: How to Remove a Cooling Fan Assembly?
A: Disconnect the cable from the negative terminal of the battery. Set the parking brake, raise the front of the vehicle and support it securely on jackstands. Drain the cooling system to a level that is just below the upper radiator hose. Remove the air intake duct. Remove the close-out panel between the grille and the radiator support. Remove the hood latch. Remove the air dam lower fasteners and release the air dam from the fan shroud. Remove the upper radiator hose support bracket fastener, then disconnect the hose and position it out of the way. Remove the radiator support fasteners and remove the panel. Disconnect the cooling fan electrical connectors and harness retaining pins. Move the wiring harness away from the fan shroud. Release the upper clips and fasteners holding the fan assembly to the radiator. Remove the cooling fan assembly by pulling it straight up and out of the engine compartment. Installation is the reverse of removal. Place the fan assembly back into the retaining clips for the side and bottom. Refill the cooling system.
