Genuine Jeep Compass Intake Manifold
Engine Intake Manifold- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
24 Intake Manifolds found

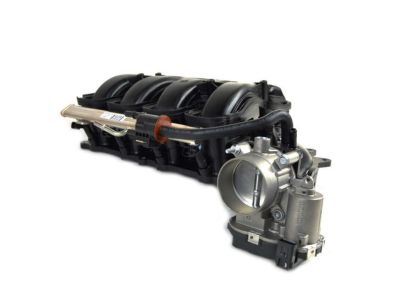

Jeep Compass Intake Manifold W/Imc Solenoid
Part Number: 4884495AF$479.60 MSRP: $734.00You Save: $254.40 (35%)

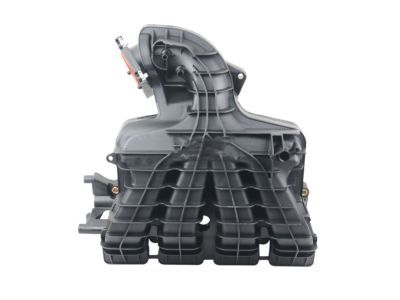

Jeep Compass Engine Intake Manifold Kit
Part Number: 5047441AN$368.22 MSRP: $539.00You Save: $170.78 (32%)
Jeep Compass Engine Intake Manifold Kit
Part Number: 4627937AG$153.41 MSRP: $227.00You Save: $73.59 (33%)
| Page 1 of 2 |Next >
1-20 of 24 Results
Jeep Compass Intake Manifold
The Intake Manifold of Jeep Compass vehicles specially concern with the distribution of air or air and fuel mixture with each cylinder greatly influence the power and performance of the engine. It works by sucking air from the throttle body, and it differs according to the category of a car engine, carbureted, throttle body injected or multiport fuel injected. Most current Jeep Compass Intake manifold designs incorporate lightweight and superior heat-conducting composite plastics to metal casting iron or aluminum. Some developments that have occurred in the past years in the Jeep Compass vehicles include, Variable Length Intake Manifold (VLIM) that may change the length of the intake tract for better airflow and improved engine performance. This technology yields higher power output and torque for variable engine loads. Changes in the design and materials of the Intake Manifold in Jeep Compass cars represent an effort towards increasing the performance of the vehicle while at the same time using less fuel as possible.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Jeep Compass Intake Manifold at great affordable prices. Moreover, all genuine Jeep Compass Intake Manifold come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Jeep Compass Intake Manifold Parts Questions & Experts Answers
- Q: How to remove and install the intake manifold on Jeep Compass?A:To remove the intake manifold, first relieve the fuel system pressure and disconnect the cable from the negative terminal of the battery. Next, remove the engine cover by pulling it up and off the ballstuds. Take out the fresh air inlet duct and the air intake duct between the air filter housing and the throttle body. Remove the ignition coils, followed by the fuel rail and fuel injectors as a single assembly. Disconnect the oil temperature sensor and unplug the electrical connectors from the Variable Valve Timing (VVT) solenoid, the Manifold Absolute Pressure (MAP) sensor, and the intake Camshaft Position (CMP) sensor, moving the electrical harness out of the way. Disconnect the electrical connector from the throttle body, remove the fasteners from the transaxle-to-throttle body support bracket at the throttle body end, and loosen the fastener at the transaxle end without removing it. Remove the wiring harness retainer from the intake manifold and move the harness aside. Label and disconnect the vacuum line(s) from the manifold, then remove the upper radiator hose retaining bracket fastener and secure the hose out of the way. If planning to replace or service the intake manifold, remove the throttle body; however, if only removing the intake manifold to service the Cylinder Head, it is not necessary to remove the throttle body. Remove the intake manifold fasteners and washers, then take out the intake manifold and the manifold gasket. For inspection, use a straightedge and feeler gauge to check the intake manifold mating surface for warpage, including the surface on the cylinder head. If warpage exceeds the specified limit, the intake manifold or cylinder head must be resurfaced or replaced. For installation, clean the mating surfaces of the manifold and cylinder head with brake system cleaner, then use a new manifold gasket to install the intake manifold onto the manifold studs. Tighten the intake manifold fasteners gradually and evenly in the indicated sequence to the specified torque. The remainder of the installation follows the reverse order of removal.
