4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.FUEL CARBURETOR INNER PARTS-J ENGINE-CANADA MODEL 24,44 FWD-COLT

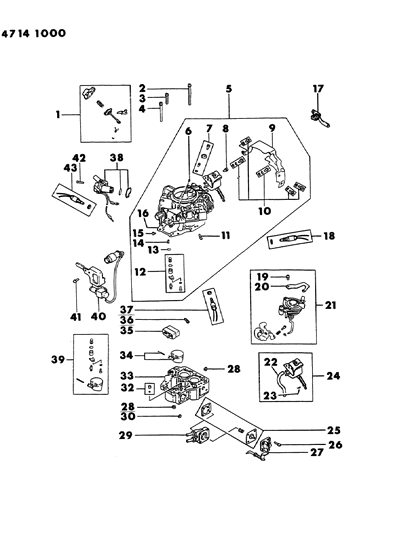

    1984 Dodge Colt Carburetor Inner Parts Diagram 1
  • 2.FUEL CARBURETOR INNER PARTS-J ENGINE-EXC CANADA MODEL 24,44 FWD-COLT

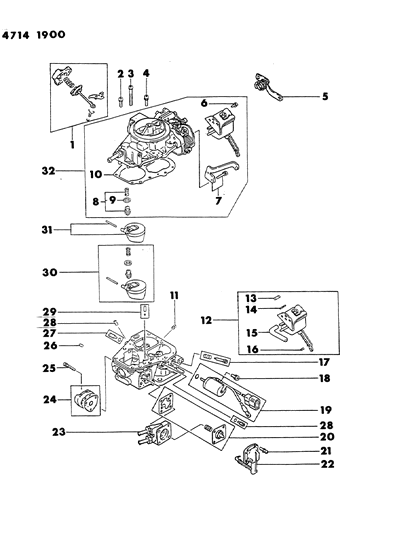

    1984 Dodge Colt Carburetor Inner Parts Diagram 2
  • 3.FUEL CARBURETOR INNER PARTS-K ENGINE-CANADA MODEL 24,44 FWD-COLT

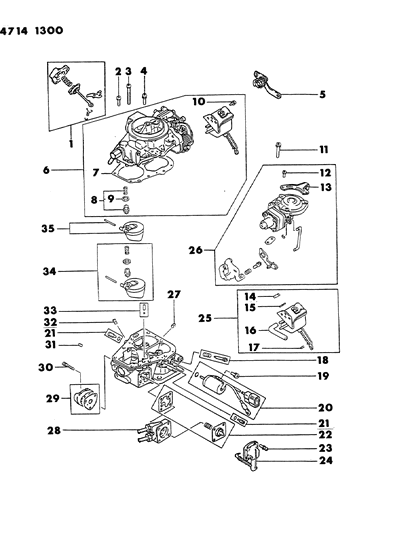

    1984 Dodge Colt Carburetor Inner Parts Diagram 3
  • 4.FUEL CARBURETOR INNER PARTS-K ENGINE-EXC CANADA MODEL 24,44 FWD-COLT

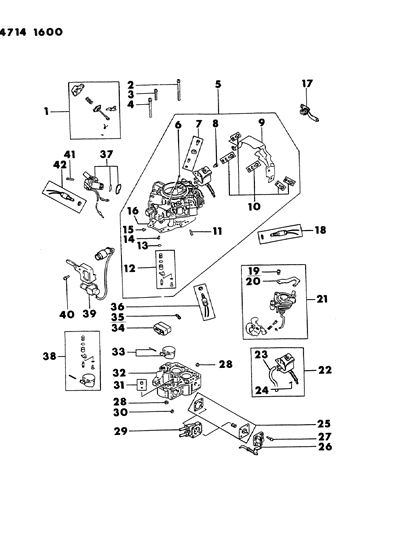

    1984 Dodge Colt Carburetor Inner Parts Diagram 4
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 1
    MD608490
    BREAKER KIT, Choke
    BREAKER KIT, Choke
  • 1
    MD608596
    BREAKER KIT, Choke
    BREAKER KIT, Choke
  • 2
    MD606865
    SCREW and WASHER (5x70)
    • Require Quantity:
      2
  • 3
    MF350056
    SCREW and WASHER (5x30)
    • Require Quantity:
      3
  • 3
    MF350060
    SCREW and WASHER (5x40)
  • 4
    MF350771
    SCREW and WASHER (5x18)
  • 4
    MD606948
    SCREW and WASHER (5x65)
  • 5
    MD608598
    ARM and PINION
  • 5
    MD608598
    ARM and PINNION
  • 5
    MD608665
    COVER, Float Chamber
    Up to Engine Serial No. DH2069 and DH3665
  • 5
    MD608666
    COVER, Float Chamber
    Up to Engine Serial No. DN1237
  • 5
    MD612094
    COVER, Float Chamber
    After Engine Serial No. DH2070 and DH3666
  • 5
    MD612096
    COVER, Float Chamber
    After Engine Serial No. DN1238
  • 6
    MD608079
    COVER, Float Chamber
  • 6
    MD608690
    JET SET, Main Air
  • 7
    MD606769
    BRACKET KIT, Throttle Return Spring
  • 7
    MD606672
    GASKET, Float Chambler Cover
  • 7
    MD608689
    JET SET, Pilot Secondary
  • 8
    MD606785
    VALVE KIT, Needle
  • 9
    MD608314
    COVER, Choke
  • 9
    MD600040
    PACKING, Needle Valve
  • 10
    MD606672
    GASKET, Float Chamber Cover
  • 10
    MD606977
    SCREW KIT, Choke Cover
  • 11
    MD606234
    JET, Main (#185)
  • 11
    MF350023
    SCREW and WASHER (4x8)
  • 11
    MF350056
    SCREW and WASHER (5x30)
    • Require Quantity:
      2
  • 12
    MD608057
    BODY, Depression Chamber
  • 12
    MF350026
    SCREW and WASHER (4x14)
    • Require Quantity:
      2
  • 12
    MD606843
    VALVE KIT, Needle
  • 13
    MD606773
    BRACKET, Throttle Return Spring
  • 13
    MF430725
    NUT, Jam (8)
  • 13
    MD606952
    SHIM KIT
  • 14
    MD608688
    JET SET, Main Secondary
  • 14
    MF430725
    NUT, Jam (8)
  • 15
    MD606526
    HOSE, Vacuum
  • 15
    MD608687
    JET SET, Main Primary
  • 16
    MD608639
    GASKET, Float Chamber Cover
  • 16
    MD606526
    HOSE, Vacuum
  • 16
    MD606527
    RETAINER, Snap
  • 17
    MD608576
    ARM and PINION
  • 17
    MD606527
    RETAINER, Snap
  • 17
    MD606566
    SCREW KIT, Speed Adjusting
  • 18
    MD606566
    SCREW KIT, Speed Adjusting
  • 18
    MF350049
    SCREW and WASHER (5x14)
  • 18
    MD612112
    VALVE, Solenoid (DSV)
    Up to Engine Serial No. DN1237
  • 18
    MD612113
    VALVE, Solenoid (DSV)
    Up to Engine Serial No. DH2069 and DH3665
  • 18
    MD612122
    VALVE, Solenoid (DSV)
    After Engine Serial No. DH2070 and DH3666
    After Engine Serial No. DN1238
  • 19
    MF350025
    SCREW and WASHER (4x12)
    • Require Quantity:
      2
  • 19
    MF350049
    SCREW and WASHER (5x14)
  • 19
    MD608084
    VALVE, Solenoid
  • 20
    MD608026
    BRACKET, Throttle Return Spring
  • 20
    MD606508
    DIAPHRAGM KIT, Pump
  • 20
    MD608084
    VALVE, Solenoid
  • 21
    MD600097
    JET, Pilot (#60)
    • Require Quantity:
      2
  • 21
    MD608327
    OPENER KIT, Throttle
  • 21
    MF350030
    SCREW and WASHER (4x22)
    • Require Quantity:
      4
  • 22
    MD606987
    BODY, Depresseon Chamber
  • 22
    MD606558
    COVER, Pump
  • 22
    MD606508
    DIAPHRAGM KIT, Pump
  • 22
    MD606951
    HOSE, Vacuum
  • 23
    MD606989
    BODY, Pump
  • 23
    MD606951
    HOSE, Vacuum
  • 23
    MD606527
    RETAINER, Snap
  • 23
    MF350030
    SCREW and WASHER (4x22)
    • Require Quantity:
      4
  • 24
    MD606986
    BODY, Depression Chamber
  • 24
    MD606558
    COVER, Pump
  • 24
    MD606527
    RETAINER, Snap
  • 24
    MD606556
    VALVE, Enrichment
  • 25
    MD608057
    BODY, Depression Chamber
  • 25
    MD606963
    DIAPHRAGM KIT, Pump
  • 25
    MD606963
    DIAPHRAGM, Pump
  • 25
    MF350031
    SCREW and WASHER (4x25)
    • Require Quantity:
      3
  • 26
    MD606850
    COVER, Pump
  • 26
    MD606908
    DASHPOT KIT
  • 26
    MD600260
    JET, Enrichment (#40)
    • Require Quantity:
      2
  • 27
    MD606234
    JET, Main (#185)
  • 27
    MD600097
    JET, Pilot (#60)
    • Require Quantity:
      2
  • 27
    MF350031
    SCREW and WASHER (4x25)
    • Require Quantity:
      4
  • 28
    MD606989
    BODY, Pump
  • 28
    MD606499
    JET, Main (#101.3)
  • 29
    MD608256
    BODY, Pump
    BODY, Pump
  • 29
    MD608256
    BODY, Pump
    BODY, Pump
    • Require Quantity:
      2
  • 29
    MD606509
    VALVE KIT, Pump Check
  • 29
    MD606556
    VALVE, Enrichment
  • 30
    MD606993
    FLOAT and NEEDLE VALVE KIT
  • 30
    MF350031
    SCREW and WASHER (4x25)
    • Require Quantity:
      3
  • 31
    MD606988
    FLOAT and PIN
  • 31
    MD600260
    JET, Enrichment (#40)
    • Require Quantity:
      2
  • 31
    MF350054
    SCREW and WASHER (not illustrated) (5 x 25)
    • Require Quantity:
      2
  • 31
    MD606852
    VALVE KIT, Pump Check
  • 32
    MD608691
    BODY, Mixing
  • 32
    MD608081
    COVER, Float Chamber
  • 32
    MD606499
    JET, Main (#101.3)
  • 32
    MD606852
    VALVE KIT, Pump Check
  • 33
    MD608691
    BODY, Mixing
  • 33
    MD606844
    FLOAT and PIN KIT
  • 33
    MD606509
    VALVE KIT, Pump Check
  • 34
    MD608633
    CONNECTOR KIT
  • 34
    MD606993
    FLOAT and NEEDLE VALVE KIT
  • 34
    MD606844
    FLOAT and PIN KIT
  • 35
    MD608632
    CLIP
    • Require Quantity:
      2
  • 35
    MD608633
    CONNECTOR KIT
  • 35
    MD606988
    FLOAT and PIN KIT
  • 36
    MD608632
    CLIP
    • Require Quantity:
      2
  • 36
    MD612117
    VALVE, Solenoid (ESV)
  • 37
    MD608683
    VALVE, Bowl Vent
    Up to Engine Serial No. DS0765
  • 37
    MD612105
    VALVE, Bowl Vent
    After Engine Serial No. DS0766
  • 37
    MD612116
    VALVE, Solenoid (ESV)
  • 38
    MD606860
    FLOAT and NEEDLE VALVE KIT
  • 38
    MD608683
    VALVE, Bowl Vent
    Up to Engine Serial No. DM2952 and DM9873
  • 38
    MD612105
    VALVE, Bowl Vent
    After Engine Serial No. DM2953 and DM9874
  • 39
    MD606860
    FLOAT and NEEDLE VALVE KIT
  • 39
    MD608705
    SENSOR
  • 40
    MD608705
    SENSOR
  • 41
    MF350029
    SCREW and WASHER (4x20)
    • Require Quantity:
      4
  • 42
    MF350029
    SCREW and WASHER (4x20)
    • Require Quantity:
      4
  • 42
    MD612108
    VALVE, Solenoid (JSV)
    Up to Engine Serial No. DN1237
  • 42
    MD612120
    VALVE, Solenoid (JSV)
    After Engine Serial No. DN1237
  • 43
    MF350054
    SCREW and WASHER (not illustrated) (5 x 25)
    • Require Quantity:
      2
  • 43
    MD612108
    VALVE, Solenoid (JSV)
    Up to Engine Serial No. DH2069 and DH3665
  • 43
    MD612120
    VALVE, Solenoid (JSV)
    After Engine Serial No. DH2070 and DH3666
