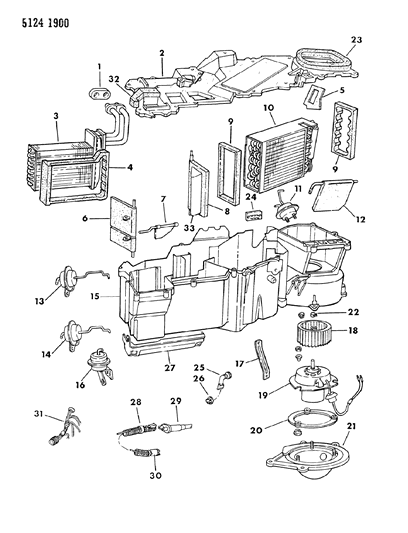

Diagram (1 of 1): HEATER AND AIR CONDITIONING AIR CONDITIONER AND HEATER UNIT B,F,G
1985 Chrysler Fifth Avenue Air Conditioner & Heater Unit Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    3846740
    SEAL, A/C Heater Tubes to Dash
  • 2
    3849097
    COVER ASSY., A/C Housing
  • 3
    4240440
    CORE ASSY., A/C, Heater Complete
    • TANK, A/C Htr. Core or Heater
  • 3
    4339438
    CORE ASSY., A/C, Heater Complete
    • CORE ASSY., A/C, Heater Complete
  • 4
    3849100
    SEAL, A/C Core to Housing Mounting
  • 5
    3847304
    SEAL, A/C Unit to Dash at Coil
  • 6
    3847231
    DOOR & SEAL, A/C Mode Complete
  • 7
    3847478
    DOOR, A/C Defroster Complete
  • 8
    3847296
    DOOR & SEAL, A/C Blend Air Complete
    • SERVO, A/C Blend Air Door w/A.T.C.
  • 8
    3847913
    DOOR & SEAL, A/C Blend Air Complete
    • PAD, A/C Blend Air Door Servo Silencer w/A.T.C.
  • 8
    3847945
    DOOR & SEAL, A/C Blend Air Complete
    • DOOR & SEAL, A/C Blend Air Complete
  • 9
    3847116
    SEAL, A/C Evap. Coil Heater End
    • SEAL, A/C Evap. Coil Heater End
  • 9
    3847790
    SEAL, A/C Evap. Coil Heater End
    • SEAL, A/C Evap. Coil Bottom 11.14" Lg.
  • 10
    3847256
    COIL & SEAL, A/C Evap. Complete
  • 11
    3847216
    ACTUATOR, A/C Fresh Air Door
  • 12
    3847217
    DOOR & SEAL, A/C Fresh Air
  • 13
    3847230
    ACTUATOR, A/C Mode Door, Upper
  • 14
    3847229
    ACTUATOR, A/C Mode Door, Lower
  • 15
    3849092
    HOUSING & STUD, A/C Evap. & Recirc.
  • 16
    3847211
    ACTUATOR, A/C Defroster Door
  • 17
    3847202
    BRACE, A/C Unit to Plenum Mtg.
  • 18
    3503037
    WHEEL, A/C Blower Motor
  • 19
    4222712
    MOTOR, A/C Blower
    • CAPACITOR, A/C Blower Motor
  • 19
    4240425
    MOTOR, A/C Blower
    • MOTOR, A/C Blower
  • 21
    3773192
    COVER & STUD, A/C Blower Scroll
    • SEAL, A/C Blower Scroll Cover to Hsg.
  • 21
    3847205
    COVER & STUD, A/C Blower Scroll
    • SEAL, A/C Cover to Scroll
  • 21
    3847207
    COVER & STUD, A/C Blower Scroll
    • COVER & STUD, A/C Blower Scroll
  • 23
    3847243
    SEAL, A/C Unit to Plenum
  • 24
    3848996
    RESISTOR, A/C Blower Motor
  • 25
    3848827
    TUBE, A/C Drain
  • 26
    6031886
    RETAINER, A/C Drain Tube
  • 27
    3847297
    DUCT, A/C Heat Distribution
  • 28
    3847294
    HOSE, A/C Sensor to Aspirator w/A.T.C.
    • HOSE, A/C Sensor to Aspirator w/A.T.C.
  • 28
    4005185
    HOSE, A/C Sensor to Aspirator w/A.T.C.
    • HOSE, A/C Aspirator to Evaporator Hsg.
  • 29
    3847766
    ASPERATOR ASSY., A/C w/A.T.C.
  • 30
    3843601
    SENSOR ASSY., w/A.T.C
    • TERMINAL, A.T.C. In Car Sensor
  • 30
    3847291
    SENSOR ASSY., w/A.T.C
    • SENSOR ASSY., w/A.T.C
  • 30
    3847589
    SENSOR ASSY., w/A.T.C
    • SENSOR, Ambient w/A.T.C.
  • 31
    3847627
    HOSE & CONNECTOR, A/C Vacuum
    • HOSE & CONNECTOR, A/C Vacuum
  • 31
    6015778
    HOSE & CONNECTOR, A/C Vacuum
    • CLIP, A/C Vacuum Hose Retaining
  • 32
    3503999
    SEAL, A/C Cover to Defroster Duct
  • 33
    3847225
    DEFLECTOR, A/C Blend Air Door
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1985 Chrysler Fifth Avenue parts. Parts like Air Conditioner & Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
