Oil Pump & Oil Filter fit your 1985 Dodge Ram 50

5 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

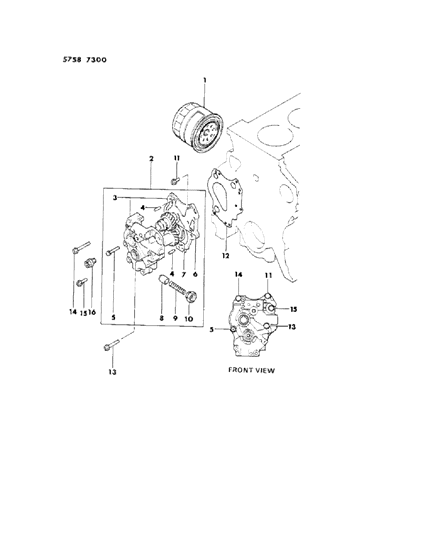

  • 1.ENGINE, 4 CYLINDER OIL PUMP & OIL FILTER 1.5 L ENGINE
    1985 Dodge Ram 50 Oil Pump & Oil Filter Diagram 1

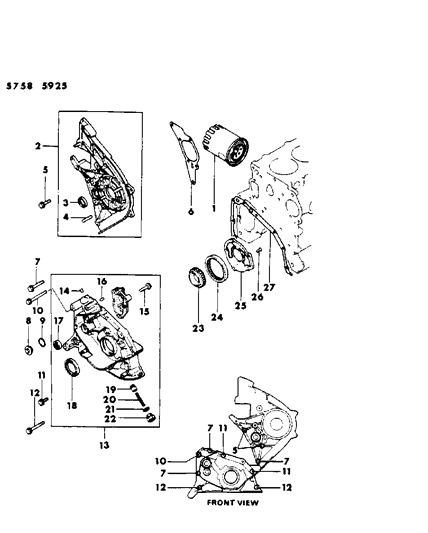

  • 2.ENGINE, 4 CYLINDER OIL PUMP & OIL FILTER 1.6 L ENGINE
    1985 Dodge Ram 50 Oil Pump & Oil Filter Diagram 2

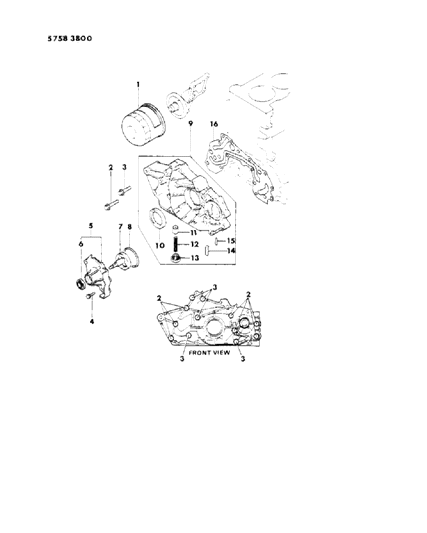

  • 3.ENGINE, 4 CYLINDER OIL PUMP & OIL FILTER 2.0 L ENGINE
    1985 Dodge Ram 50 Oil Pump & Oil Filter Diagram 3

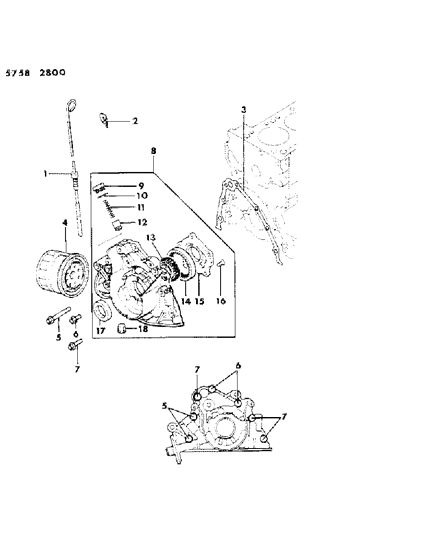

  • 4.ENGINE, 4 CYLINDER OIL PUMP & OIL FILTER 2.3 L ENGINE
    1985 Dodge Ram 50 Oil Pump & Oil Filter Diagram 4
  • 5.ENGINE, 4 CYLINDER OIL PUMP & OIL FILTER 2.6 L ENGINE
    1985 Dodge Ram 50 Oil Pump & Oil Filter Diagram 5
View by Part Description
Ref No.
Part No.
Part Description
Retail
Price
Your
Price
Qty.
Part No. & Part Description
  • Select vehicle options to narrow down result
    1
    MD031805
    FILTER, Engine Oil
    FILTER, Engine Oil
    • Fitting Vehicle Options:
      24 RWD,27, 24,41 FWD, 27,45
    ----
  • 1
    MD069783
    FILTER, Engine Oil
    FILTER, Engine Oil
    • Fitting Vehicle Options:
      27
    ----
  • 1
    MD030794
    INDICATOR, Engine Oil Level
    ----
  • Select vehicle options to narrow down result
    2
    MD011167
    BRACKET, Oil Filter
    • Fitting Vehicle Options:
      45
    ----
  • 2
    MD016813
    BRACKET, Oil Filter
    BRACKET, Oil Filter
    • Fitting Vehicle Options:
      27
    ----
  • 2
    MD050277
    CASE, Engine Front Upper
    ----
  • 2
    MD030788
    CLIP, Oil Level Indicator
    ----
  • Select vehicle options to narrow down result
    2
    PUMP, Engine Oil
    • Fitting Vehicle Options:
      27
    ----
  • 2
    MD069800
    PUMP, Engine Oil
    PUMP, Engine Oil
    • Fitting Vehicle Options:
      24 RWD
    ----
  • Select vehicle options to narrow down result
    3
    MD060518
    BODY and COVER, Oil Pump
    • Fitting Vehicle Options:
      27
    ----
  • 3
    MD067307
    BODY and COVER, Oil Pump
    BODY and COVER, Oil Pump
    • Fitting Vehicle Options:
      24 RWD
    ----
  • 3
    MD030786
    GASKET, Crankshaft Front Oil Seal Case
    ----
  • 3Dodge MD069950
    MD069950
    OIL SEAL, Balance Shaft
    ----
  • 4
    MD031805
    FILTER, Engine Oil
    ----
  • 4
    MD023415
    PIN
    • Require Quantity:
      2
    ----
  • 4
    MS401429
    STUD, (8x30mm)
    • Require Quantity:
      2
    ----
  • 5
    MD012335
    COVER, Oil Pump
    ----
  • 5
    MF350083
    SCREW and WASHER, (6x40mm)
    ----
  • 6
    MD050279
    GASKET, Front Case Upper
    ----
  • 6
    MD061314
    GEAR, Oil Pump Driven
    ----
  • 6
    MD050605
    OIL SEAL, Oil Pump
    ----
  • 7
    MD061313
    GEAR, Oil Pump Drive
    ----
  • 7
    MD012337
    ROTOR, Oil Pump
    ----
  • 8
    MD012299
    CASE, Crankshaft Front Oil Seal
    ----
  • 8
    MD041018
    GASKET, Oil Filter Bracket
    ----
  • 8
    MD009046
    GASKET, Oil Pump Cover
    ----
  • 9
    MD012333
    CASE, Crankshaft Front Oil Seal
    ----
  • 10
    MD050606
    OIL SEAL, Crankshaft Front
    ----
  • 10Dodge MD021564
    MD021564
    PLUG
    ----
  • 11
    MS101315
    BOLT, Flange (6x16mm)
    ----
  • 11Dodge MD069950
    MD069950
    OIL SEAL, Balance Shaft
    ----
  • 12
    MF140038
    BOLT, Flange (8x65mm)
    • Require Quantity:
      2
    ----
  • 12
    MD060521
    GASKET, Oil Pump
    ----
  • 12
    MD050606
    OIL SEAL, Crankshaft Front
    ----
  • 13
    MD050556
    CASE, Engine Front Lower
    ----
  • 13
    MD012302
    GEAR, Oil Pump Inner
    ----
  • Select vehicle options to narrow down result
    13
    MD050605
    OIL SEAL, Oil Pump Drive Gear, Up To 4/85
    OIL SEAL, Oil Pump Drive Gear, Up To 4/85
    ----
  • 13
    MD096264
    OIL SEAL, Oil Pump Drive Gear, Up To 4/85
    From 5/85
    ----
  • 13Dodge MD021564
    MD021564
    PLUG
    ----
  • 14
    MS101322
    BOLT, Flange (6x45mm)
    ----
  • 14
    MD012303
    GEAR, Oil Pump Outer
    ----
  • 15
    MS101316
    BOLT, Flange (6x22mm)
    ----
  • 15
    MD012301
    COVER, Oil Pump
    ----
  • 15
    MD014194
    GASKET, Engine Front Case
    ----
  • 15
    MF402540
    STUD, (6x12mm)
    • Require Quantity:
      2
    ----
  • 16
    MF101263
    BOLT and WASHER, (8x40mm)
    • Require Quantity:
      2
    ----
  • 16
    MD027152
    BOLT, Flange (10x15mm)
    ----
  • 16
    MD009043
    GASKET, Crankshaft Front Oil Seal Case
    ----
  • 17
    MD069948
    OIL SEAL, Balance Shaft Drive Gear
    ----
  • 17
    MD031837
    OIL SEAL, Crankshaft Front
    ----
  • 18Dodge MD069949
    MD069949
    OIL SEAL, Crankshaft Front
    ----
  • 21
    MS100941
    BOLT, Flange (8x25mm)
    ----
  • 23
    MD050293
    GEAR, Oil Pump Inner
    ----
  • Select vehicle options to narrow down result
    24
    MD041024
    GEAR, Oil Pump Drive, Up To 4/85
    ----
  • 24
    MD096260
    GEAR, Oil Pump Drive, Up To 4/85
    ----
  • 24
    MD050294
    GEAR, Oil Pump Outer
    ----
  • 25
    MD050295
    COVER, Oil Pump
    ----
  • 27
    MD050278
    GASKET, Front Case Lower
    ----
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1985 Dodge Ram 50 parts. Parts like Oil Pump & Oil Filter are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: , 4 Cyl 2.4L, 4 Cyl 2.6L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
