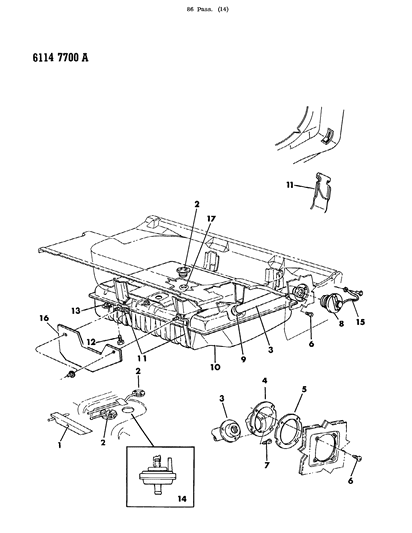

Diagram (1 of 1): FUEL FUEL TANK AND FUEL FILLER TUBES M BODY

1986 Chrysler Fifth Avenue Fuel Tank & Fuel Filler Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4002974
SHIELD, Fuel Tank to Floor Pan Splash

2
4002252
VALVE, Rollover

3
4185312
TUBE, Fuel Tank Filler
Leaded Gas
3
4279429
TUBE, Fuel Tank Filler
- Unleaded Gas

4
4185019
HOUSING, Filler Tube

5
4185037
GASKET, Filler Tube to Wheel House Panel

7
9414722
SCREW, Housing to Filler Tube
- Require Quantity: 3

8
4279839
CAP, Filler Tube

9
4002010
GROMMET, Fuel Tank to Filler Tube
$28.80 $19.98
1
Add To Cart

10
4279479
TANK, Fuel

11
4185452
STRAP, Fuel Tank Mounting
Right
11
4185453
STRAP, Fuel Tank Mounting
- Left

12
6031706
BOLT
- Require Quantity: 2

14
4185414
VALVE, Fuel Tank Vent By - Pass

15
4279144
TETHER, Gas Cap
$9.92 $7.79
1
Add To Cart

16
4185449
SHIELD

17
4002149
GROMMET, Rollover Valve

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Chrysler Fifth Avenue parts. Parts like Fuel Tank & Fuel Filler are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
