How to use OE catalog
2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.ENGINE, 4 CYLINDER BLOCK, ENGINE 1986 RENAULT DIESEL, EXPORT CJ-7,8

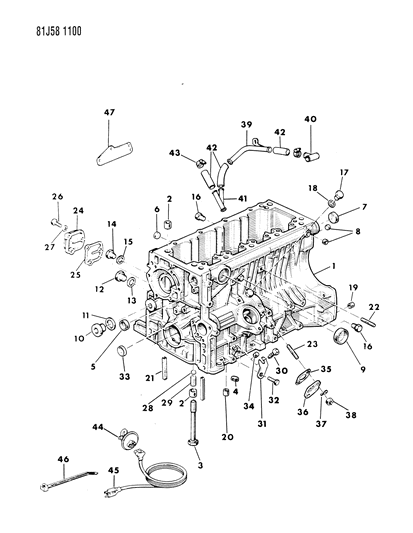

    1986 Jeep Wrangler Block , Engine Diagram 1
  • 2.ENGINE, 6 CYLINDER BLOCK, ENGINE CJ-5,6,7,8, SCRAMBLER
    1986 Jeep Wrangler Block , Engine Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    83502298
    BLOCK, Engine
    • 1986
  • 1
    J8133001
    BLOCK, Engine
    • 1981
  • 1
    J8133837
    BLOCK, Engine
    • 1982-85
  • 1
    J8134501
    BLOCK, Engine
    • 1982-85; VAM, Built in Mexico, Build Code "M"
  • 1
    T1461328
    BLOCK, Engine
    • BLOCK, Engine
  • 2
    J3205711
    BEARING PACKAGE
    • Standard
  • 2
    Jeep J3208985
    J3208985
    BEARING PACKAGE
    • +.010"
  • 2
    T5010061
    PIN
  • 3
    J4006591
    BOLT
    • 2.75"
    • Require Quantity: 14
  • 3 Jeep J4006948
    J4006948
    BOLT
    • 2.87"
    • Require Quantity: 14
    • Package Quantity: 1
  • 3
    T0589081
    BOLT
    • BOLT
    • Require Quantity: 10
  • 4 Jeep J0444660
    J0444660
    PLUG
    • PLUG
    • Require Quantity: 3
    • Package Quantity: 1
    • Replaced By: 6034166
  • 4
    T3075032
    PLUG
    • 10mm Diameter
  • 4
    T3075138
    PLUG
    • 12mm Diameter
  • 5
    Jeep J3172313
    Jeep J3172313
    $8.40 $5.77
    1
    Add To Cart
  • 5
    T3075070
    PLUG
    • PLUG
  • 6
    Jeep J4005148
    Jeep J4005148
    Jeep J4005148
    Jeep J4005148
    J4005148
    PIN
    • Require Quantity: 2
    • Package Quantity: 1
    $44.90 $31.22
    1
    Add To Cart
  • 6
    T3075018
    PLUG
  • 7
    Jeep J3105394
    Jeep J3105394
    J3105394
    PLUG
    • PLUG
    • Require Quantity: 4
    • Package Quantity: 1
    $8.60 $5.88
    1
    Add To Cart
  • 7
    T3075034
    PLUG
    • PLUG
  • 8 Jeep J3178449
    J3178449
    PLUG
    • PLUG
    • Require Quantity: 2
    • Package Quantity: 1
  • 8
    T3075039
    PLUG
    • PLUG
    • Require Quantity: 2
  • 9
    T3075044
    PLUG
  • 9
    G103879
    PLUG, Cylinder Block Drain
  • 10
    53005197
    HEATER, Engine Block
  • 10
    T3075137
    PLUG
  • 11
    J3242324
    CORD, Power Supply
  • 11
    T3026015
    GASKET
  • 12
    T3075076
    PLUG
  • 14
    T3075025
    PLUG
  • 15
    T3061028
    GASKET
  • 16
    T3075009
    PLUG
    • Require Quantity: 2
  • 17
    T3075029
    PLUG
  • 18
    T3062013
    GASKET
  • 19
    T5010126
    PIN
  • 20
    J5010006
    PIN
  • 22
    T3027130
    STUD
  • 23
    T3027138
    STUD
    • Require Quantity: 2
  • 24
    T0677302
    COVER, Engine Block Side, Right
  • 25
    T0663306
    GASKET
    • Require Quantity: 3
  • 26
    T3001236
    BOLT
    • Require Quantity: 3
  • 27
    T3055031
    WASHER
    • Require Quantity: 3
  • 28
    T5027023
    SEAL
  • 29
    T3075118
    PLUG
  • 30
    T4895580
    PLUG
  • 31
    T4263080
    RETAINER
  • 32
    T3001160
    BOLT
  • 33
    T3075015
    PLUG
  • 34
    T3075067
    PLUG
  • 36
    T0669805
    COVER, Engine Block Side, Left
  • 37
    J3057005
    WASHER
    • Require Quantity: 2
  • 38
    J3032018
    NUT
    • Require Quantity: 2
  • 39
    53003925
    TUBE, Engine Oil Drain
  • 40
    T0727942
    TEE, Oil Drain Upper
  • 41
    T0727945
    TEE, Oil Drain Lower
  • 42
    53003934
    HOSE
    • Require Quantity: 3
  • 43
    Jeep J3203076
    Jeep J3203076
    Jeep J3203076
    Jeep J3203076
    Jeep J3203076
    J3203076
    CLAMP
    • Require Quantity: 6
    • Package Quantity: 1
    • Replaced By: 53041045
    $14.10 $9.73
    1
    Add To Cart
  • 44
    33001361
    HEATER, Engine Block
  • 45
    56000828
    CORD, Power Supply
  • 46
    Jeep J3223227
    Jeep J3223227
    J3223227
    STRAP
    • 200mm
    • Replaced By: 4641780
    $0.45 $0.29
    1
    Add To Cart
  • 46
    J3230270
    STRAP
    • 350mm
  • 46
    J3235187
    STRAP
    • 450mm
  • 46
    Jeep J3693058
    Jeep J3693058
    $6.55 $4.43
    1
    Add To Cart
  • 47
    T0671563
    BRACKET
    • Require Quantity: 2
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1986 Jeep Wrangler parts. Parts like Block , Engine are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 4 Cyl 2.5L Diesel, 6 Cyl 4.2L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
