3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

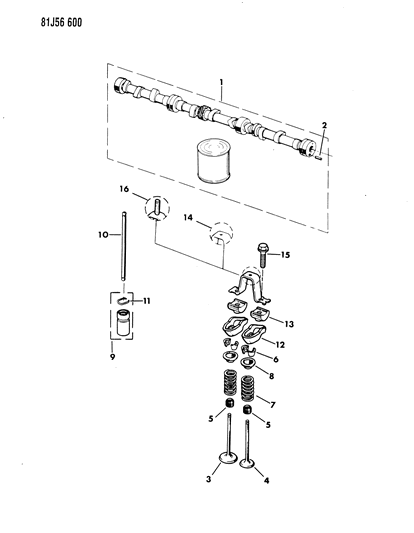

  • 1.ENGINE, 4 CYLINDER CAMSHAFT AND VALVES 1983-86 AMC FOUR CYLINDER CJ-7,8, SCRAMBLER
    1986 Jeep Wrangler Camshaft & Valves Diagram 1

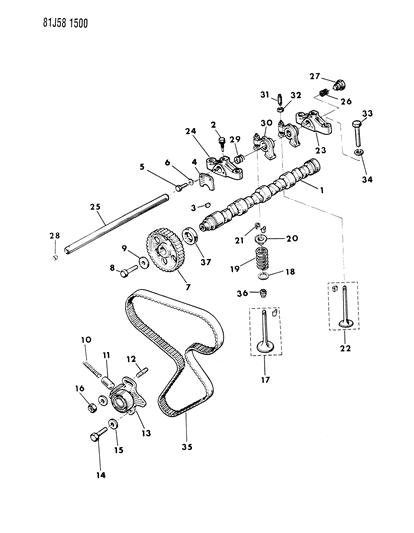

  • 2.ENGINE, 4 CYLINDER CAMSHAFT AND VALVES 1986 RENAULT DIESEL, EXPORT CJ-7,8
    1986 Jeep Wrangler Camshaft & Valves Diagram 2

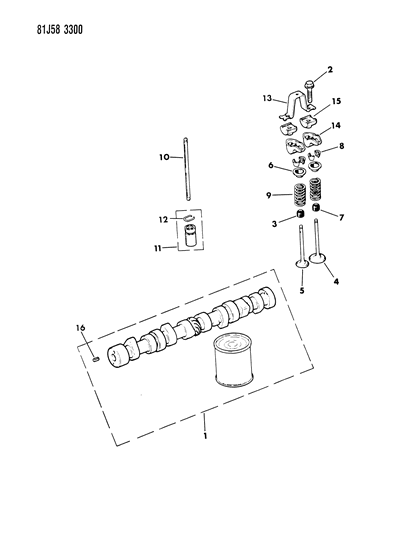

  • 3.ENGINE, 6 CYLINDER CAMSHAFT AND VALVES CJ-5,6,7,8, SCRAMBLER
    1986 Jeep Wrangler Camshaft & Valves Diagram 3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 1
    83500249
    CAMSHAFT
    CAMSHAFT
  • 1
    J8133009
    CAMSHAFT
    Without VAM
  • 1
    J8134502
    CAMSHAFT
    VAM, Built in Mexico, Engine Build Code "M"
  • 1
    T0699231
    CAMSHAFT
    CAMSHAFT
  • 2
    J8120512
    BOLT
    • Require Quantity:
      8
  • 2
    Jeep J0456384
    J0456384
    PIN
  • 2
    T0245031
    SCREW
    • Require Quantity:
      5
  • 3 Jeep 33002522
    33002522
    DEFLECTOR
    +.003" (1986)
    Standard (1986)
    • Require Quantity:
      4
    • Package Quantity:
      1
    • Replaced By:
      53009887
    MSRP: $15.10
    $10.40
    1
    Add To Cart
  • 3
    33002733
    DEFLECTOR
    +.015" (1986)
    • Require Quantity:
      4
    • Package Quantity:
      1
  • 3
    J3242864
    DEFLECTOR
    +.003" (1983-85)
    Standard (1983-85)
    • Require Quantity:
      4
  • 3
    J3242865
    DEFLECTOR
    +.015" (1983-85)
    • Require Quantity:
      4
  • 3
    T3070007
    KEY Shaft
  • 3
    83500416
    VALVE, Intake
    +.015" (VALVE, Intake, VAM, Built in Mexico, Engine Buile Code "M")
    • Require Quantity:
      6
  • 3
    J3237465
    VALVE, Intake
    Standard
    • Require Quantity:
      6
  • 3
    J3240166
    VALVE, Intake
    +.003"
    • Require Quantity:
      6
  • 3
    J3240167
    VALVE, Intake
    +.015"
    • Require Quantity:
      6
  • 3
    J8134507
    VALVE, Intake
    • Require Quantity:
      6
  • 4
    T0587893
    RETAINER, Camshaft Thrust
  • 4
    83500417
    VALVE, Exhaust
    +.003" (VALVE, Exhaust, VAM, Built in Mexico, Engine Build Code "M")
    • Require Quantity:
      6
  • 4
    83500418
    VALVE, Exhaust
    +.015" (VALVE, Exhaust, VAM, Built in Mexico, Engine Build Code "M")
    • Require Quantity:
      6
  • 4
    J3237464
    VALVE, Exhaust
    Standard
    • Require Quantity:
      6
  • 4
    J3240163
    VALVE, Exhaust
    +.003"
    • Require Quantity:
      6
  • 4
    J3240164
    VALVE, Exhaust
    +.015"
    • Require Quantity:
      6
  • 4
    J8134506
    VALVE, Exhaust
    • Require Quantity:
      6
  • 4
    J3242659
    VALVE, Intake
    Standard
    • Require Quantity:
      4
  • 4
    J3242670
    VALVE, Intake
    +.003"
    • Require Quantity:
      4
  • 4
    J3242671
    VALVE, Intake
    +.015"
    • Require Quantity:
      4
  • 5
    J3001138
    BOLT
    • Require Quantity:
      2
  • 5
    J3205737
    DEFLECTOR
    DEFLECTOR, Skinner
    • Require Quantity:
      12
  • 5
    J3205878
    DEFLECTOR
    DEFLECTOR, Perfect Circle
    • Require Quantity:
      12
  • 5
    J3218976
    DEFLECTOR
    +.003"
    Standard
    • Require Quantity:
      12
    • Package Quantity:
      1
  • 5
    J3218977
    DEFLECTOR
    +.015"
    • Require Quantity:
      12
  • 5
    J3218978
    DEFLECTOR
    +.030"
    • Require Quantity:
      12
  • 5
    J8125844
    DEFLECTOR
    • Require Quantity:
      12
  • 5
    J3242673
    VALVE, Exhaust
    +.003"
    • Require Quantity:
      4
  • 5
    J3242674
    VALVE, Exhaust
    +.015"
    • Require Quantity:
      4
  • 5
    J3242896
    VALVE, Exhaust
    Standard
    • Require Quantity:
      4
  • 6
    J3156157
    KEEPER
    VAM, Built in Mexico, Engine Build Code "M"
    • Require Quantity:
      24
  • 6
    J3180458
    KEEPER
    Without VAM
    • Require Quantity:
      24
  • 6
    J3242661
    RETAINER
    • Require Quantity:
      8
  • 6
    T3056012
    WASHER
    • Require Quantity:
      2
  • 7 Jeep 33002729
    33002729
    DEFLECTOR
    +.003" (1986)
    Standard (1986)
    • Require Quantity:
      4
    • Package Quantity:
      1
    • Replaced By:
      53009886
    MSRP: $8.60
    $5.76
    1
    Add To Cart
  • 7
    33003016
    DEFLECTOR
    +.015" (1986)
    • Require Quantity:
      4
    • Package Quantity:
      1
  • 7
    J3242864
    DEFLECTOR
    +.003" (1983)
    Standard (1983)
    • Require Quantity:
      4
  • 7
    J3242865
    DEFLECTOR
    +.015" (1983)
    • Require Quantity:
      4
  • 7
    J3242891
    DEFLECTOR
    +.003" (1985)
    Standard (1984)
    Standard (1985)
    • Require Quantity:
      4
  • 7
    J3242892
    DEFLECTOR
    +.015" (1984)
    +.015" (1985)
    • Require Quantity:
      4
  • 7
    J3228192
    SPRING
    • Require Quantity:
      12
    • Package Quantity:
      1
  • 7
    J8134508
    SPRING
    • Require Quantity:
      12
  • 7
    T1349586
    SPROCKET, Camshaft
  • 8
    T3101069
    BOLT
  • 8
    J3242664
    KEEPER
    • Require Quantity:
      16
  • 8
    J3231483
    RETAINER
    • Require Quantity:
      12
  • 9
    J3222276
    TAPPET
    • Require Quantity:
      12
  • 9
    J8134510
    TAPPET
    • Require Quantity:
      12
  • 9
    T3053189
    WASHER
  • 10
    83500671
    PUSHROD
    VAM, Built in Mexico, Engine Built Code "M", length 9.690"-9.710"
    • Require Quantity:
      12
  • 10 Jeep J3241709
    J3241709
    PUSHROD
    PUSHROD
    • Require Quantity:
      8
    • Package Quantity:
      1
  • 10
    J3242395
    PUSHROD
    Without VAM
    • Require Quantity:
      12
    • Package Quantity:
      1
  • 10
    J8134539
    PUSHROD
    VAM, Built in Mexico, Engine Build Code "M", length 9.659"-9.679"
    • Require Quantity:
      12
  • 10
    T5015125
    SPRING
  • 11
    J6440614
    RING
    • Require Quantity:
      12
  • 11
    J3189883
    TAPPET
    • Require Quantity:
      8
  • 11
    T1348251
    TENSIONER
  • 12
    J3223888
    ARM, Rocker
    1981-82
    • Require Quantity:
      12
  • 12
    J3233888
    ARM, Rocker
    VAM, Built in Mexico, Engine Build Code "M", length 9.659"-9.679"
    • Require Quantity:
      12
  • 12
    J3242393
    ARM, Rocker
    1983-86
    VAM, Built in Mexico, Engine Build Code "M", Length 9.690"-9.710"
    • Require Quantity:
      12
    • Package Quantity:
      1
    MSRP: $48.85
    $32.97
    1
    Add To Cart
  • 12
    J6440614
    RING
    • Require Quantity:
      8
  • 12
    T3027094
    STUD
  • 13
    J3236513
    BRIDGE
    • Require Quantity:
      4
    • Package Quantity:
      1
    MSRP: $6.95
    $4.26
    1
    Add To Cart
  • 13
    T0722452
    IDLER, Timing Belt
  • 14
    T0665224
    BOLT
  • 14
    83500672
    BRIDGE
    VAM, Built in Mexico, Engine Build Code "M"
  • 14
    MSRP: $6.95
    $4.26
    1
    Add To Cart
  • 15
    J8120512
    BOLT
    • Require Quantity:
      12
  • 15
    T3053037
    WASHER
    • Require Quantity:
      2
  • 16
    T1405675
    NUT
  • 16
    Jeep J0456384
    J0456384
    PIN
  • 17
    T1461338
    VALVE PACKAGE, Intake
    • Require Quantity:
      8
  • 18
    T3053099
    SEAT, Spring
    • Require Quantity:
      8
  • 19
    T0673343
    SPRING
    • Require Quantity:
      8
  • 20
    T0268948
    RETAINER
    • Require Quantity:
      8
  • 21
    T1349125
    KEEPER
    • Require Quantity:
      16
  • 22
    T1461339
    VALVE PACKAGE, Exhaust
  • 23
    T0654085
    BRACE
    • Require Quantity:
      4
  • 24
    T0654084
    BRACE
  • 25
    T1463654
    SHAFT, Rocker Arm
  • 26
    T0650095
    FILTER, Rocker Shaft Oil
  • 27
    T3075053
    PLUG
  • 28
    T3075039
    PLUG
  • 29
    T0659821
    SPRING
  • 30
    T6009641
    ARM, Valve Rocker
    • Require Quantity:
      8
  • 31
    T0659962
    SCREW
    • Require Quantity:
      8
  • 32
    T3032115
    NUT
    • Require Quantity:
      8
  • 33
    T3001693
    BOLT
  • 34
    T7777658
    WASHER
  • 36
    T1349529
    SEAL
    • Require Quantity:
      8
  • 37
    T1349626
    SEAL
