Parts Questions

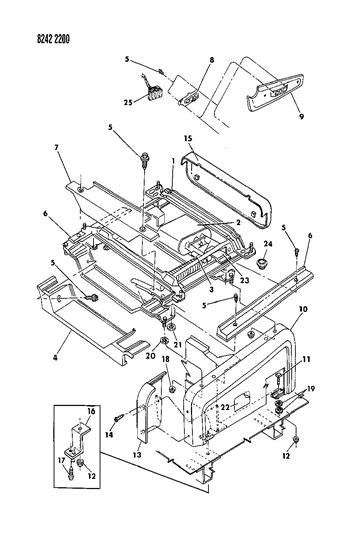

Diagram (1 of 1): S BODY ADJUSTER--ELECTRIC AND LEFT RISER S BODY
1988 Dodge Caravan Adjuster - Electric And Left Riser Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4327665
    ADJUSTER, Less Motor
  • 2
    4327288
    MOTOR
  • 3
    4316846
    CABLE, (1.94")
    • Require Quantity: 3
  • 4
    4317041
    COVER, Adjuster Lower Rear
  • 6
    S677CS8
    COVER, Bracket
    • Charcoal
  • 6
    S677EK1
    COVER, Bracket
    • Almond
    • Require Quantity: 2
  • 6
    S677FC5
    COVER, Bracket
    • Blue
    • Require Quantity: 2
  • 6
    S677GR8
    COVER, Bracket
    • Red
    • Require Quantity: 2
  • 7
    4316978
    COVER, Adjuster Upper Rear
  • 8
    3747924
    SWITCH, Adjuster
  • 9
    S359GK1
    SHIELD, Inner Elec. Left (P.A.R.)
  • 10
    4327397
    RISER
  • 11
    6500741
    BOLT
    • Require Quantity: 4
  • 13
    S664FC5
    COVER, Riser Inner (P.A.R.)
    • Inboard (MANUAL SEAT)
  • 13
    S665FC5
    COVER, Riser Inner (P.A.R.)
    • Outboard (Has Stamp # 4420815) (MANUAL SEAT)
  • 13
    S666FC5
    COVER, Riser Inner (P.A.R.)
    • Inboard (ELECTRIC SEAT)
  • 13
    S667FC5
    COVER, Riser Inner (P.A.R.)
    • Outboard (ELECTRIC SEAT)
  • 14
    9420486
    SCREW
  • 15
    S670EK1
    COVER, Elec. Adjuster Front (P.A.R.)
  • 16
    4416029
    REINFORCEMENT
  • 18
    6025010
    NUT and WASHER
  • 20
    4317341
    SPACER, Cushion to Riser
    • Require Quantity: 4
  • 21
    6028040
    RETAINER, Spacer
    • Require Quantity: 4
  • 22
    4327683
    COVER, Riser w/o Remote Filler Release
  • 23
    4316848
    SUPPORT, Motor
    • Require Quantity: 2
  • 24
    6032586
    RETAINER, Seat and Riser Front Attaching
  • 25
    4331544
    WIRING, Elec. Seat Adjuster
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988 Dodge Caravan parts. Parts like Adjuster - Electric And Left Riser are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
