2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

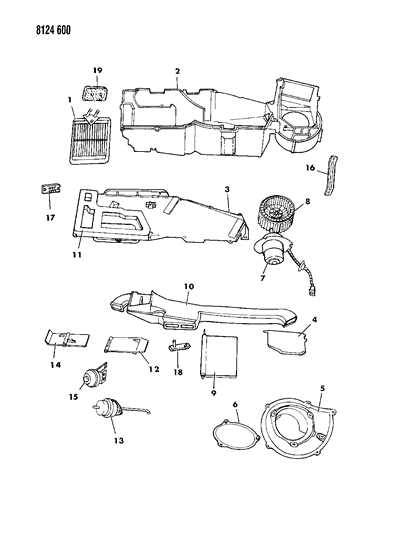

  • 1.HEATER AND AIR CONDITIONING HEATER UNIT S BODY
    1988 Dodge Caravan Heater Unit Diagram 1

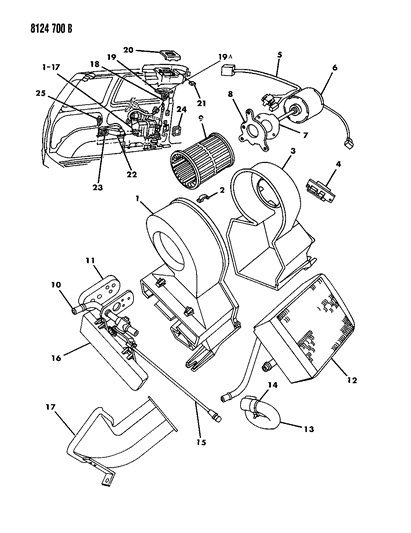

  • 2.HEATER AND AIR CONDITIONING HEATER UNIT, AUXILIARY S BODY 52 MODEL
    1988 Dodge Caravan Heater Unit Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 1
    3849682
    HOUSING, Aux. Heater Cover, Front
  • 2
    3849683
    CLIP, Aux. Heater Housing
  • 2
    3848261
    HOUSING, Heater
  • 3
    3848263
    COVER, Heater
  • 3
    3849681
    HOUSING, Aux. Heater Blower, Rear
  • 4
    3848432
    COVER, Heater Recirculate
  • 5
    3848272
    COVER ASSEMBLY, Heater Motor
    COVER ASSEMBLY, Heater Motor
  • 5
    3848273
    COVER ASSEMBLY, Heater Motor
    COVER, Heater Motor
  • 5
    3849543
    HARNESS, Aux. Heater Blower Motor
  • 6
    3849453
    MOTOR, Aux. Heater Blower
  • 7
    3849687
    SEAL, Aux. Heater Blower Mounting Bracket
  • 8
    3849686
    BRACKET, Aux. Heater Blower Motor Mounting
  • 9
    3849454
    WHEEL, Aux. Heater Blower
  • 10
    3849219
    DUCT, Heater Temperature Distribution
  • 11
    3849689
    GASKET, Aux. Heater Core Tube
  • 11
    3848266
    SEAL, Heater Cover to Ducts
  • 12
    3849942
    CORE and SEAL, Aux. Heater
  • 13
    3848259
    ACTUATOR, Mode Door
  • 13
    3849456
    HOSE, Aux. Heater Inlet
  • 14
    3848227
    DOOR, Heater Defroster
    DOOR, Heater Defroster
  • 14
    4163735
    DOOR, Heater Defroster
    SHAFT, Heater Defroster Door
    SHAFT, Heater Mode Door
  • 15
    3848260
    ACTUATOR, Heater, Defroster Door
  • 15
    3849465
    CABLE, Aux. Heater, Water Valve Control
  • 16
    3848251
    BRACE, Unit Heater
  • 16
    3849684
    COVER, Aux. Heater Core Case
  • 17
    3849457
    DUCT, Aux. Heater, Front
  • 17
    3848998
    RESISTOR, Heater Blower
  • 18
    Dodge 219462
    219462
    LEVER, Heater Temperature Door
    NUT, Lever Mounting
  • 18
    3848878
    LEVER, Heater Temperature Door
    LEVER, Heater Temperature Door
  • 18
    3849464
    SWITCH, Aux. Heater Blower Control
  • 19
    3849690
    KNOB, Aux. Heater Reg. Control
  • 19
    3848254
    SEAL, Heater Core Tubes to Dash
    SEAL, Heater Core Tubes to Dash
  • 19
    3848389
    SEAL, Heater Core Tubes to Dash
    SEAL, Heater Header Opng. (to Dash)
  • 19
    3848924
    SEAL, Heater Core Tubes to Dash
    HOSE, Heater Vac.
  • 19A
    3849913
    CONTROL, Aux. Heater (Complete)
  • 20
    K668FA3
    BEZEL, Aux. Heater Control
    Silver
  • 20
    K668FC5
    BEZEL, Aux. Heater Control
    Twilght Blue
  • 20
    K668FK1
    BEZEL, Aux. Heater Control
    Almond
  • 20
    K668GR8
    BEZEL, Aux. Heater Control
    Bordeaux Red
  • 22
    3849458
    DUCT, Aux. Heater, Air Outlet, Rear
  • 23
    4443143
    GRILLE, Aux. Heater, Air Outlet, Front
    GRILLE, Aux. Heater Air Inlet
  • 23
    4443148
    GRILLE, Aux. Heater, Air Outlet, Front
    GRILLE, Aux. Heater, Air Outlet, Front
  • 23
    4494304
    GRILLE, Aux. Heater, Air Outlet, Front
    Rear
  • 24
    3849710
    SEAL, Aux. Heater, Air Outlet
  • 25
    4373255
    SCREW, Aux. Heater, Housing and Duct
    SWITCH, Rear Blower (I/Pnl.)
  • 25
    6032473
    SCREW, Aux. Heater, Housing and Duct
    SCREW, Aux. Heater, Housing and Duct
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988 Dodge Caravan parts. Parts like Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
