2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

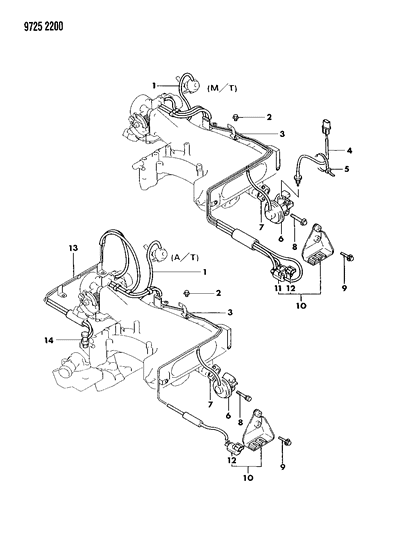

  • 1.EMISSION SYSTEMS EGR SYSTEM V ENGINE 27 4WD - RAIDER
    1989 Dodge Raider EGR System Diagram 1
  • 2.EMISSION SYSTEMS EGR SYSTEM W ENGINE 27 4WD - RAIDER
    1989 Dodge Raider EGR System Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 1
    MS632399
    HOSE, Vacuum (3x150 - Light Blue)
  • 2
    MD103070
    HOSE, Vapor
  • 3
    MD142001
    HOSE and PIPE ASSEMBLY, Vacuum
    5 Speed up to June 1988
  • 3
    MD142004
    HOSE and PIPE ASSEMBLY, Vacuum
    A Trans. up to June 1988
  • 3
    MD144000
    HOSE and PIPE ASSEMBLY, Vacuum
    after July 1988
  • 3
    MD144003
    HOSE and PIPE ASSEMBLY, Vacuum
    after July 1988
  • 4
    MD115938
    PIPE, Vapor
  • 4
    MD127984
    SENSOR, Exhaust High Temp. - Calif.
  • 6
    MD110272
    VALVE ASSEMBLY, Thermo
  • 6
    MD143668
    VALVE, EGR
    Federal and Canada
  • 6
    MD143669
    VALVE, EGR
    Calif.
  • 8
    MD110501
    VALVE ASSEMBLY, EGR
  • 10
    MD138440
    VALVE ASSEMBLY, Solenoid
    5 Speed
  • 10
    MD138441
    VALVE ASSEMBLY, Solenoid
    A Trans.
  • 10
    MD026678
    VALVE, Purge Control
  • 11
    MD126812
    VALVE, Solenoid - EGR Control Solenoid Valve
  • 13
    Dodge MF477030
    MF477030
    CLIP
  • 13
    MD137117
    HOSE and PIPE ASSEMBLY, Vacuum
  • 14
    MD113041
    BOX ASSEMBLY, Device
  • 14
    MD103867
    VALVE, Thermo
  • 15
    MD110527
    VALVE, Vacuum Regulator
  • 16
    MD110507
    SWITCH ASSEMBLY, Vacuum
  • 17
    MD113035
    RELAY and DIODE
  • 18
    MD084955
    VALVE ASSEMBLY, Solenoid - Secondary Air Control Solenoid Valve
  • 19
    MD110490
    HOSE ASSEMBLY, Vacuum
    Federal & Canada
  • 19
    MD110491
    HOSE ASSEMBLY, Vacuum
    Calif.
  • 26
    MD073267
    HOSE (420)
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1989 Dodge Raider parts. Parts like EGR System are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.6L, 6 Cyl 3.0L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
