3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

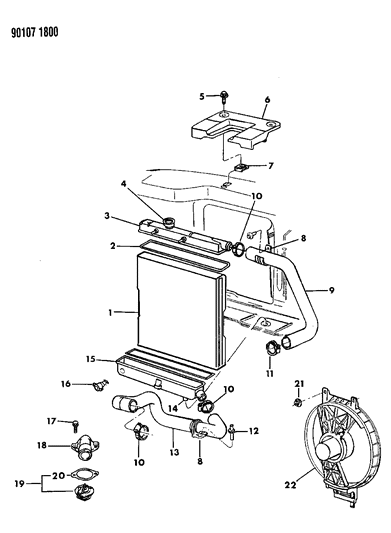

  • 1.COOLING RADIATOR AND RELATED PARTS 2.5L ENGINE S BODY
    1990 Dodge Grand Caravan Radiator & Related Parts Diagram 1

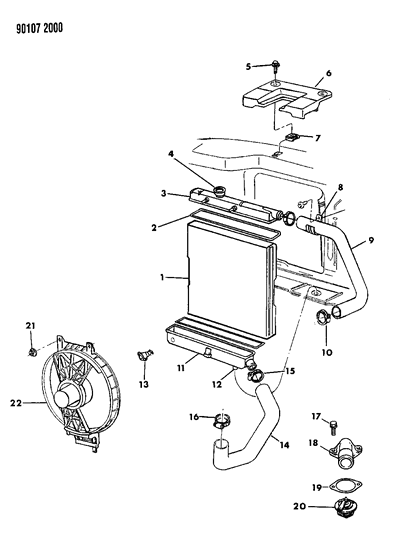

  • 2.COOLING RADIATOR AND RELATED PARTS 3.0L ENGINE S BODY
    1990 Dodge Grand Caravan Radiator & Related Parts Diagram 2

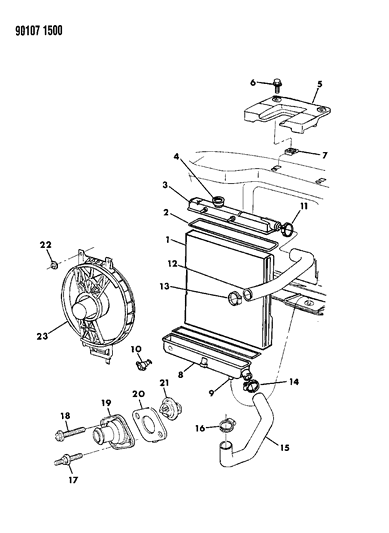

  • 3.COOLING RADIATOR AND RELATED PARTS 3.3L ENGINE S BODY
    1990 Dodge Grand Caravan Radiator & Related Parts Diagram 3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 1
    4401807
    RADIATOR (Includes #'s 2,3,4,11,12,13)
  • 1
    4401808
    RADIATOR (Includes #'s 2,3,4,11,12,13)
    • Fitting Vehicle Options:
      Y
  • 1
    4401807
    RADIATOR (Includes #'s 2,3,4,14,15,16)
    • Fitting Vehicle Options:
      H, K
  • 1
    4401808
    RADIATOR (Includes #'s 2,3,4,14,15,16)
    • Fitting Vehicle Options:
      H
  • 1
    4401807
    RADIATOR (Includes #'s 2,3,4,8,9,10)
  • 1
    4401808
    RADIATOR (Includes #'s 2,3,4,8,9,10)
  • 2
    4401785
    GASKET, Tank to Header
    • Require Quantity:
      2
  • 3
    4401783
    TANK, Inlet
  • 4
    Dodge 3781830
    3781830
    CAP, Radiator
  • 5
    4401534
    PANEL, Valance - Radiator Mounting Upper
    PANEL, Valance - Radiator Mounting Upper
  • 5
    4401566
    PANEL, Valance - Radiator Mounting Upper
    ISOLATOR, Valance Panel
  • 5
    6501013
    SCREW and WASHER
    • Require Quantity:
      2
  • 6
    4401534
    PANEL, Valance - Radiator Upper Mounting
    PANEL, Valance - Radiator Upper Mounting
  • 6
    4401566
    PANEL, Valance - Radiator Upper Mounting
    ISOLATOR, Valance Panel
  • 6
    6501013
    SCREW and WASHER
    • Require Quantity:
      2
  • 8
    4401542
    CLIP, Inlet Hose
  • 8
    6015731
    CLIP, Inlet Hose
  • 8
    4401784
    TANK, Outlet
    2.5L Eng. - Auto. Trans.
    2.5L Eng. w/(S/C - EDM) w/European Market Requirements - Man. Trans.
  • 8
    4546222
    TANK, Outlet
    2.5L Eng. w/(S/C - EDM) w/o European Market Requirements - Man. Trans.
    2.5L Eng. w/(S/C - EDT) - Man. Trans.
  • 9
    4401823
    HOSE, Inlet
    HOSE, Inlet
  • 9
    4546253
    HOSE, Inlet
    HOSE, Inlet
  • 9
    H0061537
    HOSE, Inlet
    Mopar V-Line Alternative Part
  • 9
    4266396
    ISOLATOR, Radiator Mounting - Lower
    • Require Quantity:
      2
  • 10
    2448763
    CLAMP, Radiator Hose
    CLAMP, Radiator Hose
    • Require Quantity:
      3
    • Package Quantity:
      1
    MSRP: $4.45
    $3.06
    1
    Add To Cart
  • 10
    3683824
    CLAMP, Radiator Hose
    CLAMP, Radiator Hose
    • Require Quantity:
      2
  • 10
    4266155
    DRAINCOCK
  • 11
    3683824
    CLAMP, Inlet Hose (Rad. End)
  • 11
    3683824
    CLAMP, Radiator Hose
  • 11
    4401784
    TANK, Outlet
  • 12
    4401822
    HOSE, Inlet
  • 12
    H0061535
    HOSE, Inlet
  • 12
    4266396
    ISOLATOR, Radiator Mounting - Lower
    • Require Quantity:
      2
  • 13
    6032229
    CLAMP, Inlet Hose (Eng. End)
  • 13
    4266155
    DRAINCOCK
  • 13
    4546045
    HOSE, Outlet
    w/A604 Trans. w/o European Market Requirements up to 9-11-89
  • 13
    4546046
    HOSE, Outlet
    w/A604 Trans. w/European Market Requirements up to 9-11-89
  • 13
    4546184
    HOSE, Outlet
    w/A670 Trans. w/o European Market Requirements (H0061538 - Cut to fit)
  • 13
    4546185
    HOSE, Outlet
    w/A670 Trans. w/European Market Reqiurements
  • 13
    4546249
    HOSE, Outlet
    after 9-11-89
  • 13
    4546250
    HOSE, Outlet
    after 9-11-89
  • 13
    H0061538
    HOSE, Outlet
    Mopar V-Line Alternative Part
  • 13
    H0069017
    HOSE, Outlet
    Mopar V-Line Alternative Part
  • 14
    4266396
    ISOLATOR, Radiator Mounting - Lower
    • Require Quantity:
      2
  • 15
    4401784
    TANK, Outlet
  • 16
    4266155
    DRAINCOCK
  • 17
    6500559
    STUD and WASHER, Cylinder Water Outlet Connector
  • 18
    5281188
    ELBOW, Cylinder Water Outlet
  • 19
    5214514
    CONNECTOR, Cylinder Water Outlet
  • 19
    Dodge 4179895
    4179895
    GASKET, Cylinder Water Outlet Elbow
  • 20
    Dodge 4179895
    4179895
    GASKET, Cylinder Water Outlet Connector
  • 20
    MD118040
    GASKET, Water Outlet Fitting
  • 21
    Dodge 6500284
    6500284
    NUT
    • Require Quantity:
      2
  • 21
    Dodge 6500284
    6500284
    NUT and WASHER
    • Require Quantity:
      2
  • 22
    4266462
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    FAN (Stamped 4401421 w/o Heavy Duty Trailer Tow Package and/or European Market Requirements optional w/4401721 Consists of:)
    FAN (Stamped 4401421 w/o Heavy Duty Trailer Tow Package optional w/4401721 Consists of:)
  • 22
    4401002
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    MOTOR (Consists of:)
    MOTOR (Stamped 4401586 w/Heavy Duty Trailer Tow Package and/or European Market Requirements Consists of:)
  • 22
    4401105
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    MOTOR (Stamped 4401721 w/o Heavy Duty Trailer Tow Package and/or European Market Requirements optional w/4401421 Consists of:)
    MOTOR (stamped TM 5517Q) (Stamped 4401721 w/o Heavy Duty Trailer Tow Package optional w/4401421 Consists of:)
  • 22
    4401147
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    FAN (Casting# 64577G or 64577H) (Stamped 4401721 w/o Heavy Duty Trailer Tow Package optional w/4401421 Consists of:)
    FAN (Consists of:)
    FAN (Stamped 4401586 w/Heavy Duty Trailer Tow Package and/or European Market Requirements Consists of:)
    FAN (Stamped 4401721 w/o Heavy Duty Trailer Tow Package and/or European Market Requirements optional w/4401421 Consists of:)
  • 22
    4401584
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    SHROUD (Consists of:)
    SHROUD (Stamped 4401586 w/Heavy Duty Trailer Tow Package and/or European Market Requirements Consists of:)
    SHROUD (Stamped 4401721 w/o Heavy Duty Trailer Tow Package and/or European Market Requirements optional w/4401421 Consists of:)
    SHROUD (Stamped 4401721 w/o Heavy Duty Trailer Tow Package optional w/4401421 Consists of:)
  • 22
    4401585
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    SHROUD (Stamped 4401421 w/o Heavy Duty Trailer Tow Package and/or European Market Requirements optional w/4401721 Consists of:)
    SHROUD (Stamped 4401421 w/o Heavy Duty Trailer Tow Package optional w/4401721 Consists of:)
  • 22
    4401806
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    MOTOR (Stamped 4401816 Consists of:)
  • 22
    4401817
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    SHROUD (Stamped 4401816 Consists of:)
  • 22
    4401863
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    FAN (Stamped 4401816 Consists of:)
  • 22
    4419349
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    MOTOR (Stamped 4401421 w/o Heavy Duty Trailer Tow Package and/or European Market Requirements optional w/4401721 Consists of:)
    MOTOR (stamped TM 5522Q and P20709PM) (Stamped 4401421 w/o Heavy Duty Trailer Tow Package optional w/4401721 Consists of:)
  • 22
    Dodge 6500377
    6500377
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
  • 22
    Dodge 6500284
    6500284
    NUT and WASHER
    • Require Quantity:
      2
  • 23
    4266462
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    FAN (Consists of:)
  • 23
    4401002
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    MOTOR (Consists of:)
  • 23
    4401105
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    MOTOR (Consists of:)
  • 23
    4401147
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    FAN (Consists of:)
  • 23
    4401582
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    SHROUD (Consists of:)
  • 23
    4401584
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    SHROUD (Consists of:)
  • 23
    4401585
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    SHROUD (Consists of:)
  • 23
    4401806
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    MOTOR (Stamped 4401816 Consists of:)
  • 23
    4401817
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    SHROUD (Stamped 4401816 Consists of:)
  • 23
    4401863
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    FAN (Stamped 4401816 Consists of:)
  • 23
    4419336
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    MOTOR (Consists of:)
  • 23
    4419349
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    MOTOR (Consists of:)
  • 23
    Dodge 6500377
    6500377
    FAN-MOTOR-SHROUD ASSEMBLY, Radiator
    RETAINER (Consists of:)
    RETAINER (Stamped 4401816 Consists of:)
  • 4266212
    CLIP, Shroud Attaching
    • Require Quantity:
      2
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1990 Dodge Grand Caravan parts. Parts like Radiator & Related Parts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
