2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

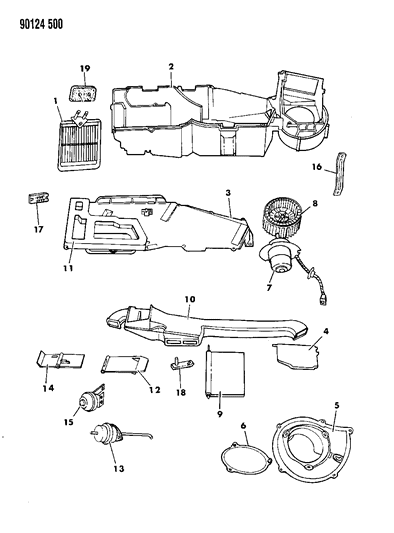

  • 1.HEATER AND AIR CONDITIONING HEATER UNIT S BODY
    1990 Dodge Grand Caravan Heater Unit Diagram 1

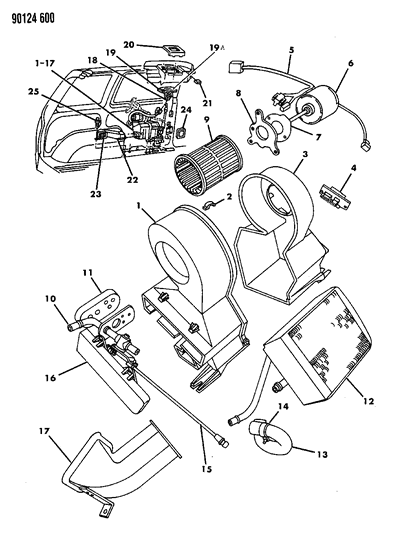

  • 2.HEATER AND AIR CONDITIONING HEATER UNIT, AUXILIARY S BODY 52 MODEL
    1990 Dodge Grand Caravan Heater Unit Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 1
    3849682
    HOUSING, Aux. Heater Cover, Front
  • 2
    3849683
    CLIP, Aux. Heater Housing
  • 2
    3848261
    HOUSING, Heater
  • 3
    3848263
    COVER, Heater
  • 3
    3849681
    HOUSING, Aux. Heater Blower, Rear
  • 4
    3848432
    COVER, Heater Recirculate
  • 5
    3848272
    COVER ASSEMBLY, Heater Motor
    COVER ASSEMBLY, Heater Motor
  • 5
    3848273
    COVER ASSEMBLY, Heater Motor
    COVER, Heater Motor
  • 5
    4462476
    HARNESS, Aux. Heater Blower Motor
    HARNESS, Aux. Heater Blower Motor Jumper
  • 5
    4494317
    HARNESS, Aux. Heater Blower Motor
    HARNESS, Aux. Heater Blower Motor
  • 6
    4494316
    MOTOR, Aux. Heater Blower
  • 7
    3849687
    SEAL, Aux. Heater Blower Mounting Bracket
  • 8
    3849686
    BRACKET, Aux. Heater Blower Motor Mounting
  • 9
    3849454
    WHEEL, Aux. Heater Blower
  • 10
    3849219
    DUCT, Heater Temperature Distribution
  • 11
    4462124
    GASKET, Aux. Heater Core Tube
  • 11
    3848266
    SEAL, Heater Cover to Ducts
  • 12
    3849942
    CORE and SEAL, Aux. Heater
  • 13
    3848259
    ACTUATOR, Mode Door
  • 13
    3849456
    HOSE, Aux. Heater Inlet
  • 14
    3848227
    DOOR, Heater Defroster
    DOOR, Heater Defroster
  • 14
    4163735
    DOOR, Heater Defroster
    SHAFT, Heater Defroster Door
    SHAFT, Heater Mode Door
  • 15
    3848260
    ACTUATOR, Heater, Defroster Door
  • 15
    3849465
    CABLE, Aux. Heater, Water Valve Control
  • 16
    3848251
    BRACE, Unit Heater
  • 16
    3849684
    COVER, Aux. Heater Core Case
  • 17
    3849457
    DUCT, Aux. Heater, Front
  • 18
    Dodge 0219462
    0219462
    LEVER, Heater Temperature Door
    NUT, Lever Mounting
  • 18
    3848878
    LEVER, Heater Temperature Door
    LEVER, Heater Temperature Door
  • 18
    3849464
    SWITCH, Aux. Heater Blower Control
  • 19
    3849690
    KNOB, Aux. Heater Reg. Control
  • 19
    3848254
    SEAL, Heater Core Tubes to Dash
    SEAL, Heater Core Tubes to Dash
  • 19
    3848389
    SEAL, Heater Core Tubes to Dash
    SEAL, Heater Header Opng. (to Dash)
  • 19
    3848924
    SEAL, Heater Core Tubes to Dash
    HOSE, Heater Vac.
  • 19A
    3849913
    CONTROL, Aux. Heater (Complete)
  • 20
    K668FA3
    BEZEL, Aux. Heater Control
    Silver
  • 20
    K668FC5
    BEZEL, Aux. Heater Control
    Twilght Blue
  • 20
    K668FK1
    BEZEL, Aux. Heater Control
    Almond
  • 20
    K668GR8
    BEZEL, Aux. Heater Control
    Bordeaux Red
  • 22
    3849458
    DUCT, Aux. Heater, Air Outlet, Rear
  • 23
    4443143
    GRILLE, Aux. Heater, Air Outlet, Front
    GRILLE, Aux. Heater Air Inlet
  • 23
    4443148
    GRILLE, Aux. Heater, Air Outlet, Front
    GRILLE, Aux. Heater, Air Outlet, Front
  • 23
    4494304
    GRILLE, Aux. Heater, Air Outlet, Front
    Rear
  • 24
    3849710
    SEAL, Aux. Heater, Air Outlet
  • 25
    Dodge 2837680
    Dodge 2837680
    2837680
    SCREW, Aux. Heater, Housing and Duct
    Clamp Blower Motor Wheel Mtg. (THE FOLLOWING ITEMS ARE NOT ILLUSTRATED AUX. HTR UNIT 53 CANADA)
    MSRP: $2.35
    $1.52
    1
    Add To Cart
  • 25 Dodge 3847476
    3847476
    SCREW, Aux. Heater, Housing and Duct
    Seal-Blwr Mtr To Scoll Mtg. (Tapered Plug (Not Serviced))
  • 25
    3849148
    SCREW, Aux. Heater, Housing and Duct
    Knob Control Heater (Black) (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4373109
    SCREW, Aux. Heater, Housing and Duct
    Relay Front Control (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4373255
    SCREW, Aux. Heater, Housing and Duct
    SWITCH, Rear Blower (I/Pnl.)
  • 25
    4462209
    SCREW, Aux. Heater, Housing and Duct
    Cover-Housing (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462210
    SCREW, Aux. Heater, Housing and Duct
    Cover-Housing Scroll (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462212
    SCREW, Aux. Heater, Housing and Duct
    Duct Assy Air Distribution (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462215
    SCREW, Aux. Heater, Housing and Duct
    Resistor Blower Motor (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462217
    SCREW, Aux. Heater, Housing and Duct
    Wiring Assy (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462218
    SCREW, Aux. Heater, Housing and Duct
    Servo Assy Mode Door Motor (Stamped Nut-U-Shaped (Not Serviced))
    MSRP: $95.75
    $66.35
    1
    Add To Cart
  • 25
    4462219
    SCREW, Aux. Heater, Housing and Duct
    Mode Door Assy (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462223
    SCREW, Aux. Heater, Housing and Duct
    Heater Core Assy (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462224
    SCREW, Aux. Heater, Housing and Duct
    Seal Heater Core Side (THE FOLLOWING ITEMS ARE NOT ILLUSTRATED AUX. HTR UNIT 53 CANADA)
  • 25
    4462225
    SCREW, Aux. Heater, Housing and Duct
    Seal Heater Core Ftr (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462226
    SCREW, Aux. Heater, Housing and Duct
    Pad Htr Hose Isolator (Stamped Nut-U-Shaped (Not Serviced))
    • Require Quantity:
      2
  • 25
    4462227
    SCREW, Aux. Heater, Housing and Duct
    Duct Assy Heat Distribution (Stamped Nut-U-Shaped (Not Serviced))
    • Require Quantity:
      2
  • 25
    4462233
    SCREW, Aux. Heater, Housing and Duct
    Tube Hose Ext. (O.B.) (THE FOLLOWING ITEMS ARE NOT ILLUSTRATED AUX. HTR UNIT 53 CANADA)
    MSRP: $95.92
    $75.38
    1
    Add To Cart
  • 25
    4462234
    SCREW, Aux. Heater, Housing and Duct
    Tube Hose Ext (I.B.) (Stamped Nut-U-Shaped (Not Serviced))
    MSRP: $80.63
    $63.36
    1
    Add To Cart
  • 25
    4462251
    SCREW, Aux. Heater, Housing and Duct
    Seal Air Duct To Panel (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462252
    SCREW, Aux. Heater, Housing and Duct
    Seal Heater Core (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462253
    SCREW, Aux. Heater, Housing and Duct
    Bracket Heater Hose Mtg. (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462254
    SCREW, Aux. Heater, Housing and Duct
    Pad Isolator (Stamped Nut-U-Shaped (Not Serviced))
    • Require Quantity:
      2
  • 25
    4462619
    SCREW, Aux. Heater, Housing and Duct
    Housing (Tapered Plug (Not Serviced))
  • 25
    4462620
    SCREW, Aux. Heater, Housing and Duct
    Seal-Aux Hsg Tower (THE FOLLOWING ITEMS ARE NOT ILLUSTRATED AUX. HTR UNIT 53 CANADA)
  • 25
    4462621
    SCREW, Aux. Heater, Housing and Duct
    Brkt-Aux Htr Unit Supt (Tapered Plug (Not Serviced))
  • 25
    4462622
    SCREW, Aux. Heater, Housing and Duct
    Plate Assy Plumbing (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462623
    SCREW, Aux. Heater, Housing and Duct
    Seal Plumbing Plt (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462624
    SCREW, Aux. Heater, Housing and Duct
    Control Heater (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4462625
    SCREW, Aux. Heater, Housing and Duct
    Decal-Aux Htr Control (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    4494319
    SCREW, Aux. Heater, Housing and Duct
    Motor Assy Blower Pkg. (Stamped Nut-U-Shaped (Not Serviced))
  • 25
    5210234
    SCREW, Aux. Heater, Housing and Duct
    Wheel Blower Mtr
  • 25
    6032473
    SCREW, Aux. Heater, Housing and Duct
    SCREW, Aux. Heater, Housing and Duct
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1990 Dodge Grand Caravan parts. Parts like Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
