4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.HEATER AND AIR CONDITIONING PLUMBING, AIR CONDITIONING AND HEATER 2.5L ENGINE E.F.I. S BODY

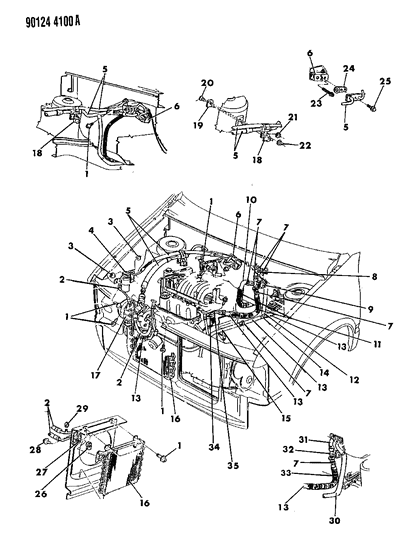

    1990 Dodge Grand Caravan Plumbing - A/C & Heater Diagram 1
  • 2.HEATER AND AIR CONDITIONING PLUMBING, AIR CONDITIONING AND HEATER 2.5L ENGINE T.C. S BODY

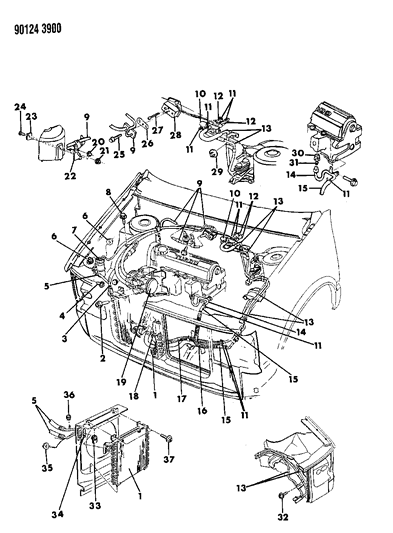

    1990 Dodge Grand Caravan Plumbing - A/C & Heater Diagram 2
  • 3.HEATER AND AIR CONDITIONING PLUMBING, AIR CONDITIONING AND HEATER 3.0L ENGINE S BODY

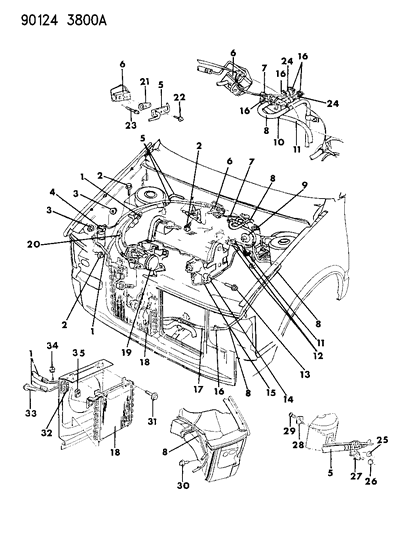

    1990 Dodge Grand Caravan Plumbing - A/C & Heater Diagram 3
  • 4.HEATER AND AIR CONDITIONING PLUMBING, AIR CONDITIONING AND HEATER 3.3L ENGINE S BODY
    1990 Dodge Grand Caravan Plumbing - A/C & Heater Diagram 4
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price
Part No. &
Part Description
  • 1
    4462397
    CONDENSER
  • 1
    4462740
    LINE, A/C Discharge and Liquid
  • 1
    6033562
    NUT and WASHER
    • Require Quantity:
      2
  • 2
    4462129
    FILTER DRIER, w/Bracket
  • 2
    4462745
    LINE, A/C Discharge and Liquid
  • 3
    3848021
    CAP, Check Valve
  • 3
    3848522
    CLIP, Suction and Discharge
  • 3
    6033562
    NUT, w/Washer
    • Require Quantity:
      2
  • 4
    4462129
    DRIER and BRACKET, Filter
  • 4
    4540365
    LINE, Discharge and Liquid
    Up to 12-1-89
  • 4
    5264297
    LINE, Discharge and Liquid
    After 12-1-89
  • 5
    4462740
    LINE, A/C Dischare and Liquid
  • 5
    4462951
    LINE, A/C Suction and Liquid
  • 5
    4462742
    LINE, A/C Suction and Liquid w/o Aux. A/C
  • 6
    4540248
    LINE, Suction and Liquid
  • 6
    6033562
    NUT, w/Washer
    • Require Quantity:
      2
  • 6
    4462132
    VALVE, Expansion (H-Type)
  • 7
    4462129
    DRIER, w/Bracket, Filter
  • 7
    3848729
    VALVE, Water (4 Port)
  • 8
    4540272
    HOSE, Heater, Valve to Core
  • 8
    4462579
    TUBE, A/C Heater Return, w/o Aux. A/C
  • 9
    4462951
    LINE, A/C Suction and Liquid
  • 9
    Dodge 0219462
    0219462
    NUT, Heater Tube Mounting
  • 10
    4540268
    HOSE, Heater Engine to Core, w/o Aux. Htr.
  • 10
    4361263
    SLEEVE
  • 10
    3848729
    VALVE, Water
  • 11
    4462397
    CONDENSER
  • 12
    0153640
    CLAMP
  • 12
    5252013
    HOSE, 5/8" I.D. 50 Ft. Roll
    HOSE, 5/8" I.D. 50 Ft. Roll
  • 12
    HHR00058AA
    HOSE, 5/8" I.D. 50 Ft. Roll
    Mopar V-Line Alternative Part
    • Replaced By:
      HHR00058AB
    MSRP: $31.55
    $21.39
    1
    Add To Cart
  • 13
    1315466
    HOSE, 5/8" I.D. 50 Ft. Roll
  • 13
    4462648
    TUBE, w/o Aux. A/C
  • 14
    4273487
    BRACKET, Water Tube Mounting
  • 14
    3848021
    CAP
  • 14
    4462592
    TUBE, Heater Engine to Hose
  • 15
    3848585
    CAP, Discharge and Liquid Line Check Valve
  • 16
    4462397
    CONDENSER
  • 18
    4462772
    BRACKET, Line Support
  • 18
    4462772
    BRACKET, Suction and Liquid Line Support
  • 18
    0153640
    CLAMP
  • 18
    4462397
    CONDENSER
  • 19
    4443131
    COMPRESSOR
    COMPRESSOR
  • 19
    R4443131
    COMPRESSOR
    REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part W/O Clutch Kit
    MSRP: --
    $293.28
    1
    Add To Cart
  • 19
    4188101
    PLATE, Line Mounting
  • 19
    4188101
    PLATE, Suction and Liquid Line Mounting Bracket
  • 20
    3848522
    CLIP, A/C Suct. & Disch.
  • 21
    3846834
    GASKET, A/C Suction & Liq. Line to H-Valve
  • 22
    4462772
    BRACKET, Line Support
  • 22 Dodge 6101445
    6101445
    NUT, w/Washer
    • Require Quantity:
      2
    • Package Quantity:
      1
    • Replaced By:
      6102440AA
    MSRP: $10.00
    $6.93
    1
    Add To Cart
  • 23
    4188101
    PLATE, Line Bracket Mounting
  • 24
    3846834
    GASKET, A/C Suction and Liq. Line to H-Valve
  • 24
    5252013
    HOSE, 5/8" I.D. 50 Ft. Roll
    HOSE, 5/8" I.D. 50 Ft. Roll
  • 24
    HHR00058AA
    HOSE, 5/8" I.D. 50 Ft. Roll
    Mopar V-Line Alternative Part
    • Replaced By:
      HHR00058AB
    MSRP: $31.55
    $21.39
    1
    Add To Cart
  • 25
    3849406
    SWITCH, A/C DAmped Pressure and O-Ring
  • 26
    3846834
    GASKET, Line to H-Valve
  • 26 Dodge 6101445
    6101445
    NUT, w/Washer
    • Require Quantity:
      2
    • Package Quantity:
      1
    • Replaced By:
      6102440AA
    MSRP: $10.00
    $6.93
    1
    Add To Cart
  • 26 Dodge 6101442
    6101442
    U-NUT
    • Require Quantity:
      2
    • Package Quantity:
      1
    MSRP: $8.15
    $5.50
    1
    Add To Cart
  • 27
    4462772
    BRACKET, Line Mounting
  • 27
    4462134
    SWITCH, Aux. A/C., Low Pressure Cut-Off
  • 28
    4188101
    PLATE, Line Bracket Mounting
  • 28
    4462132
    VALVE, A/C Expansion (H-Type) w/Low Pressure Switch
  • 29
    3848585
    CAP, Check Valve
  • 29
    3846834
    GASKET, Suction and Liquid Line Mounting to H-Valve
  • 29
    Dodge 0219462
    0219462
    NUT, Tube Mounting
  • 30
    6032290
    CONNECTOR, Tube Flare
  • 31
    4540272
    HOSE, w/Aux. A/C
  • 31
    3849468
    VALVE, A/C Disch. & Suct. Line Check
  • 31
    3848948
    WASHER, Tube Flare
  • 32
    3849730
    GASKET, Suction and Discharge Mounting to Compressor
  • 32
    5264373
    GASKET, Suction and Discharge Mounting to Compressor
  • 33
    3847147
    PILOT
  • 33 Dodge 6101442
    6101442
    U-NUT
    • Require Quantity:
      2
    • Package Quantity:
      1
    MSRP: $8.15
    $5.50
    1
    Add To Cart
  • 34
    3848585
    CAP, Check Valve
  • 34
    3847083
    GASKET, A/C Disch. & Suction Liq. Line Mtg. to Drier
  • 34
    4448852
    GASKET, Int. Manif. to Htr. Hose Tube
  • 35
    4462031
    HOSE and SLEEVE, Aux. Heater Engine to Core and Rear Tube
  • 35
    4462964
    U-NUT
    HOSE, Tube to Oil Cooler (European)
  • 35 Dodge 6101442
    6101442
    U-NUT
    U-NUT
    • Require Quantity:
      2
    • Package Quantity:
      1
    MSRP: $8.15
    $5.50
    1
    Add To Cart
  • 36
    3848585
    CAP, Check Valve Fitting
  • 36
    4462406
    HOSE, Tee, Aux. Heater
  • 39
    1315466
    HOSE, A/C Heater Engine to Core, 50 Ft. Roll 5/8 I.D.
  • 4462739
    BRACKET, Line Mounting to Plenum
  • 4462739
    BRACKET, Line Mounting to Plenum w/Aux. A/C
  • 4462739
    BRACKET, Line Mounting to Plenum w/o Aux. A/C
  • 4462739
    BRACKET, Line to Plenum Mounting
  • 4462739
    BRACKET, Suction and Liquid Line to Plenum
  • 4462426
    BRACKET, Underbody w/Aux. A/C
  • 3847081
    GASKET, A/C Compr. Suction & Disch. Line Mtg. to Compr.
  • 3847083
    GASKET, A/C Compr. Suction & Disch. Line Mtg. to Compr.
  • 3847081
    GASKET, A/C Compr. Suction & Disch. Line Mtg. to Compressor
  • 3847083
    GASKET, A/C Disch. & Suction Liq. Line Mtg. to Drier
  • 3849730
    GASKET, A/C Suction & Disch. Line Mtg. to Compr., 5/8"
  • 5264373
    GASKET, A/C Suction & Disch. Line Mtg. to Compr., 5/8"
  • 4140427
    GROMMET
  • 6030647
    GROMMET
    • Require Quantity:
      2
  • 6030647
    GROMMET, A/C Suction and Liq. Line Mtg. to Plenum
    • Require Quantity:
      2
  • 4140427
    GROMMET, w/Aux. A/C
  • 4140427
    GROMMET, w/o Aux. A/C
  • 5264258
    HOSE ASSEMBLY, Heater Core to Oil Cooler, European
    HOSE ASSEMBLY, Heater Core to Oil Cooler, European
  • 5264260
    HOSE ASSEMBLY, Heater Core to Oil Cooler, European
    HOSE, A/C, Htr. Oil Cooler to Pump, European
  • 4540021
    HOSE, A/C Heater Valve to Tube
  • 4462374
    HOSE, Heater Tube to Valve
    • Require Quantity:
      49
  • 4462374
    HOSE, Heater Tube to Valve
  • 4462374
    HOSE, Tube to Valve
  • 4540021
    HOSE, w/Aux. A/C
  • 4540021
    HOSE, w/o Aux. A/C
  • 5264053
    LINE, A/C Suction and Liquid w/Aux. A/C (includes damper)
  • 5264179
    LINE, Suction w/Aux.
  • 4462565
    LINE, Suction, Liquid w/A/C and Rear Heater (Aux.)
  • 4540363
    MUFFLER ASSEMBLY, w/Aux. Air, Suction Line
  • 3847147
    PILOT
    • Require Quantity:
      2
  • 3848208
    PILOT, A/C., Expansion Valve Package
  • 4462946
    SEAL, A/C High Pressure Relief Valve
  • 4462946
    SEAL, Pressure Valve
  • 4462946
    SEAL, Valve
  • 4361263
    SLEEVE, Heater Hose
  • 4372394
    STRAP, Ground
  • 4372394
    STRAP, Ground w/Aux. A/C
  • 4372394
    STRAP, Ground w/o Aux. A/C
  • 3849784
    SWITCH, A/C Cond. Fan
  • 4462134
    SWITCH, A/C Diff. Pressure Cut Off
  • 3849784
    SWITCH, A/C Fan Switch
  • 4462134
    SWITCH, Low Pressure Cut-Off
  • 5210377
    SWITCH, Low Pressure Cut-Off
  • 5252225
    SWITCH, Low Pressure Cut-Off
  • 4462061
    SWITCH, Suction Line Temperature Sensing
  • 4462061
    SWITCH, Temp. Sensing
  • 5252003
    SWITCH, w/Bracket, A/C Ambient Temp. Sensor Mtg.
  • 4462579
    TUBE, A/C Heater Return
  • 4540021
    TUBE, A/C Heater Return, w/Aux. A/C
  • 3849468
    VALVE, A/C Disch. & Suct Line Check
  • 3849468
    VALVE, A/C Disch. & Suct. Line Check
  • 3849468
    VALVE, A/C Disch. & Suction Line Check
  • 4462305
    VALVE, A/C High Pressure Relief
  • 4462305
    VALVE, High Pressure
